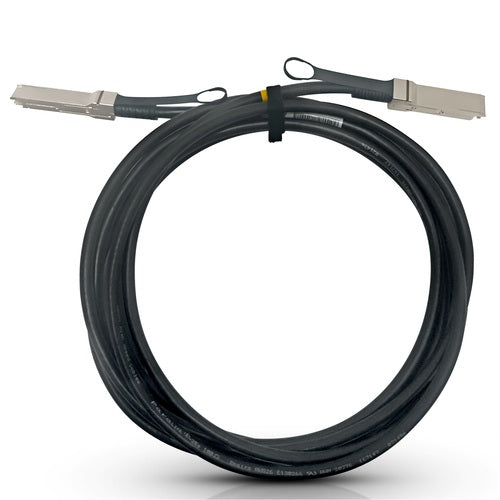

NVIDIA MCP1650-H002E26 | LinkX 200G QSFP56 DAC Cable, 2m, 26AWG, HDR
SKU:MCP1650-H002E26
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This LinkX passive QSFP56-to-QSFP56 direct attach copper cable is built for short-reach 200Gb/s InfiniBand HDR and 200GbE links inside the data centre. At 2 m it suits switch-to-switch and switch-to-server connections in HPC and other high-density racks, offering a low-cost, low-power alternative to fibre optics.
The cable carries up to 200Gb/s using 4x 50Gb/s PAM4 modulation. It is a 26 AWG passive copper assembly with a black LSZH (Low Smoke Zero Halogen) jacket and a lead-free, halogen-free PCB. It runs from a single 3.3V host supply and draws 0.1 W maximum. Each cable is hot pluggable and has an EEPROM that exposes product information to the host system over an SFF-8636 compliant I2C management interface. It operates over a 0 to 70 C case temperature range, and being a passive cable it needs no licence or subscription.
It works with QSFP56 ports on NVIDIA InfiniBand HDR (Quantum) switches and ConnectX-6 adapters, and with 200GbE links. HDR links need RS_FEC enabled.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- IBTA IB HDR and 200GbE compliant
- Up to 200Gb/s using 4x 50Gb/s PAM4 modulation
- Hot pluggable with a single 3.3V supply
- LSZH jacket and lead-free, halogen-free PCB
- Per-port EEPROM with product information readable by the host system
- Power-efficient, low-cost connectivity for short-distance interconnects
- Each cable is production-tested for out-of-the-box performance and durability
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Data rate: up to 200Gb/s
- Modulation: 4x 50Gb/s PAM4
- Connectors: QSFP56 to QSFP56
- Cable type: Passive copper
- Compliance: IBTA IB HDR and 200GbE, SFF-8665, SFF-8636 I2C management interface
- Length: 2 m (±0.050 m)
- Wire gauge: 26 AWG
- Single cable diameter: 9.4 mm (±0.4 mm)
- Minimum bend radius: 47 mm single bend, 94 mm repeated bend
- Cable colour: Black
- Jacket: LSZH (Low Smoke Zero Halogen)
- PCB: Lead-free, halogen-free
- Supply voltage: 3.135 to 3.465 V (3.3 V typical)
- Power consumption: 0.1 W maximum
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Storage temperature: -40 to 85 C
- Characteristic impedance: 90 to 110 Ohm (100 Ohm typical)
- Propagation delay: 4.5 ns/m maximum
- Hot pluggable: Yes
- Safety approvals: CB, UL, CE
- EMC approvals: CE, FCC, ICES, RCM, VCCI
- RoHS: Compliant
FAQs
Q: Does this cable need a licence or subscription?
A: No. It is a passive copper cable, so no licence or subscription is required.
Q: How is the cable powered?
A: It is powered from the host port through a single 3.3V supply (3.135 to 3.465 V) and draws 0.1 W at most.
Q: What equipment does it work with?
A: It connects QSFP56 ports on NVIDIA InfiniBand HDR (Quantum) switches and ConnectX-6 adapters, and also supports 200GbE links. HDR links need RS_FEC enabled.
Q: What is the maximum reach?
A: This is the 2 m, 26 AWG version, intended for short-reach links within a rack or between neighbouring racks.
Q: How does it differ from the other cables in this range?
A: This SKU is the 2 m length with 26 AWG conductors. Other lengths and wire gauges in the range use different part numbers.
