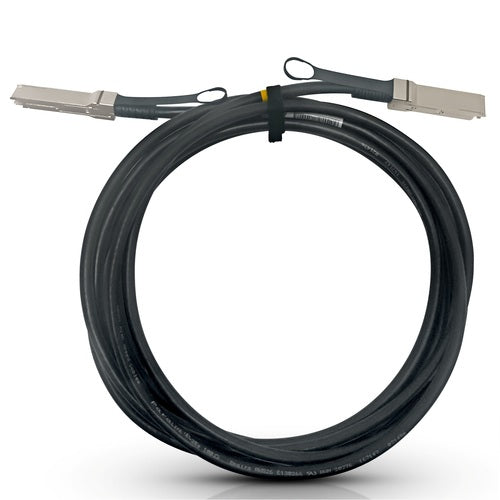

NVIDIA MCP1650-H001E30 | LinkX HDR 200G QSFP56 DAC Cable, 1m, 30AWG

SKU:MCP1650-H001E30

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The LinkX MCP1650-H0xxEyy range is a passive QSFP56-to-QSFP56 direct attach copper cable for 200Gb/s InfiniBand HDR and 200GbE links. It is a low-cost, low-power alternative to fibre optics for short data-centre interconnects, such as top-of-rack server-to-switch and switch-to-switch runs.

This SKU is the 1 m, 30AWG version with a black LSZH jacket. It carries up to 200Gb/s over eight copper pairs using 4x 50Gb/s PAM4 modulation, and draws 0.1 W maximum from the host port on a single 3.3V supply. The cable is hot pluggable and complies with IBTA IB HDR, 200GbE, SFF-8665 and the SFF-8636 I2C management interface.

It suits QSFP56 ports on 200Gb/s InfiniBand HDR and 200GbE equipment, including NVIDIA/Mellanox HDR switches and ConnectX-6 adapters. The EEPROM in each connector reports HDR support and a 200GBASE-CR4 link code to the host.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IBTA IB HDR and 200GbE compliant
- Hot pluggable with a single 3.3V supply
- Eight high-speed copper pairs, each up to 50Gb/s
- EEPROM in each QSFP56 connector provides product information readable by the host
- LSZH jacket with lead-free, halogen-free PCB
- RoHS compliant
- Power-efficient, low-cost short-reach alternative to optics

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Connectors: QSFP56 to QSFP56
- Cable type: Passive copper DAC
- Data rate: Up to 200Gb/s
- Modulation: 4x 50Gb/s PAM4
- Length: 1 m (±0.025)
- Wire gauge: 30 AWG
- Jacket: LSZH, black
- Single cable diameter: 7.1 ±0.35 mm
- Minimum bend radius: 35.5 mm single bend, 71 mm repeated bend
- Supply voltage: 3.135 to 3.465 V (3.3 V typical)
- Power consumption: 0.1 W max
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Storage temperature: -40 to 85 C
- Characteristic impedance: 90 / 100 / 110 Ohm (min/typ/max)
- Propagation delay: 4.5 ns/m max
- Standards: IBTA IB HDR, 200GbE, SFF-8665, SFF-8679 pin assignment, SFF-8636
- Hot pluggable: Yes
- RoHS: Compliant
- Regulatory: Safety CB, UL, CE; EMC CE, FCC Class A, ICES, RCM, VCCI

FAQs

Q: Does this cable need a licence or separate power?
A: No. It is a passive cable powered from the host port on a single 3.3V supply, with a maximum power consumption of 0.1 W.

Q: Which equipment is it compatible with?
A: It fits QSFP56 ports on 200Gb/s InfiniBand HDR and 200GbE equipment, such as NVIDIA/Mellanox HDR switches and ConnectX-6 adapters. The EEPROM reports HDR support and a 200GBASE-CR4 link code.

Q: What distinguishes this SKU from other MCP1650-H0xxEyy cables?
A: The MCP1650-H001E30 is the 1 m version on 30 AWG copper. Other SKUs in the range differ by length and wire gauge.

Q: Can it carry both InfiniBand HDR and Ethernet?
A: Yes. It complies with IBTA IB HDR and 200GbE, running 4x 50Gb/s PAM4 lanes for up to 200Gb/s.

Q: What is the minimum bend radius?
A: The minimum bend radius is 35.5 mm for a single bend and 71 mm for assembly or repeated bending.
