NVIDIA

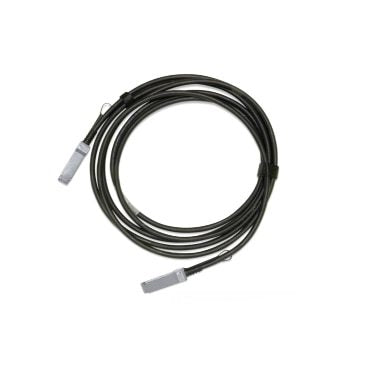

NVIDIA MCP1600-E005E26 | 100G QSFP28 DAC | Passive Copper | IB EDR/100GbE | 5m | QSFP28-to-QSFP28 | 26AWG

SKU:MCP1600-E005E26

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Longer-reach QSFP28 passive copper direct-attach cable for 100G connections up to 5 meters. Supports InfiniBand EDR and 100GbE with 4x25G lanes for ultra-low-latency, zero-power links between switches, servers, and storage. Built with 26AWG conductors for reliable 5m performance and excellent EMI control.

Features

- 100G bandwidth over passive copper up to 5 m
- Zero power and ultra-low latency interconnect
- 26AWG conductors for long passive reach
- QSFP28-to-QSFP28 with secure latching
- Compatible with 100GbE and InfiniBand EDR hardware
- Cost-efficient alternative to optical transceivers
- Durable twinax design with strong EMI performance

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Will this 5 m passive DAC work on any QSFP28 100G port?
A: It works on devices that support passive QSFP28 DACs. Check that your switch/NIC enables 5 m passive DAC operation.

Q: Why 26AWG for 5 m?
A: Thicker 26AWG conductors reduce attenuation, enabling stable performance at the 5 m length.

Q: Is there any power consumption?
A: No. Passive DACs consume virtually zero power compared to active optical modules.

Q: Can this be used for switch-to-switch uplinks?
A: Yes, for adjacent rack or in-rack short-reach connections within 5 m.

Q: Does it support breakout to 4x25G?
A: No. This is a straight QSFP28-to-QSFP28 cable. For breakout, choose a 100G-to-4x25G breakout DAC or AOC.

Technical Specifications

- Interface / form factor: QSFP28 (SFF-8665), 4 lanes
- Data rate: up to 100 Gb/s aggregate (4x 25G)
- Standards / protocols: InfiniBand EDR, 100 Gigabit Ethernet
- Cable type: Passive copper Direct Attach Cable (DAC)
- Length: 5 meters
- Wire gauge: 26 AWG
- Connectors: QSFP28 male to QSFP28 male
- Power draw: ~0 W (no optics)
- Jacket color: Black
- EMI shielding: Yes, low-crosstalk twinax design
- Operating temperature: 0°C to 70°C
- Compliance: RoHS, CE; SFF-8665 mechanical
- Typical use: TOR switch-to-server/NIC, storage, short-reach switch interconnects up to 5 m
