NVIDIA

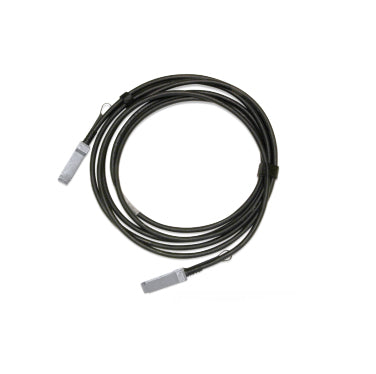

NVIDIA MCP1600-E003E26 | 100G QSFP28 DAC | Passive Copper | IB EDR/100GbE | 3m | QSFP28-to-QSFP28 | 26AWG

SKU:MCP1600-E003E26

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

QSFP28 passive copper direct-attach cable for 100G links over short distances. Supports InfiniBand EDR and 100GbE with 4x25G lanes, delivering zero-power, ultra-low-latency connectivity between TOR switches, NICs, and storage. 26AWG conductors ensure signal integrity at 3m with robust EMI performance. Hot-pluggable QSFP28 ends, SFF-8665 compliant.

Features

- 100G aggregate bandwidth with 4x25G lanes
- Passive copper design for near-zero latency and zero power
- 3 m reach with robust 26AWG conductors for signal integrity
- QSFP28-to-QSFP28, SFF-8665 compliant
- Compatible with 100GbE and InfiniBand EDR ports
- Cost-effective short-reach alternative to optical links
- Low EMI twinax construction for clean high-speed performance

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Is this cable compatible with both 100GbE and InfiniBand EDR ports?
A: Yes. It supports 100 Gigabit Ethernet and InfiniBand EDR as long as both endpoints support passive QSFP28 DAC.

Q: What is the difference between 26AWG and 30AWG versions?
A: 26AWG has thicker conductors for lower loss and is used for longer passive runs (e.g., up to 5 m). 30AWG is thinner and typically suited for shorter lengths.

Q: Do I need any optics or additional modules?
A: No. This is a passive QSFP28 DAC with integrated terminations—no separate optics are required.

Q: Can I mix vendors on each end?
A: Interoperability depends on each device’s DAC coding policy. Many platforms accept standard QSFP28 DACs, but some may require approved coding.

Q: Is the cable hot-pluggable?
A: Yes. QSFP28 interfaces are hot-pluggable; insert or remove with care following device guidelines.

Technical Specifications

- Interface / form factor: QSFP28 (SFF-8665), 4 lanes
- Data rate: up to 100 Gb/s aggregate (4x 25G)
- Standards / protocols: InfiniBand EDR, 100 Gigabit Ethernet
- Cable type: Passive copper Direct Attach Cable (DAC)
- Length: 3 meters
- Wire gauge: 26 AWG
- Connectors: QSFP28 male to QSFP28 male
- Power draw: ~0 W (no optics)
- Jacket color: Black
- EMI shielding: Yes, low-crosstalk twinax design
- Operating temperature: 0°C to 70°C
- Compliance: RoHS, CE; SFF-8665 mechanical
- Typical use: TOR switch-to-server/NIC, storage, short-reach switch interconnects
