NVIDIA MCA7J70-N005 | LinkX 800G to 4x200G OSFP Splitter Cable, ACC, 5m, 26AWG

SKU:MCA7J70-N005

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

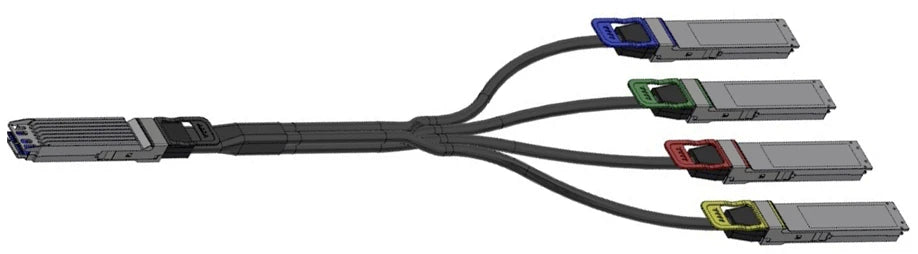

The NVIDIA LinkX MCA7J70-N005 is an active copper splitter cable that breaks one 800Gb/s twin-port OSFP into four 200Gb/s OSFP connections. It suits data centre, AI and HPC fabrics where an 800Gb/s Quantum-2 InfiniBand or Spectrum-4 Ethernet switch needs to link to four OSFP-based 200Gb/s ConnectX-7 adapters over short distances.

This 5m version uses 26AWG cable and an equalizer IC to extend copper reach, with 8 channels of 100G-PAM4 modulation carrying 400G per OSFP tail. The switch end uses a finned-top twin-port OSFP and the four split ends use flat-top OSFP connectors. Power is drawn from the host ports from a single 3.3 V supply, at 1.5 W maximum at the switch end and 0.3 W maximum per adapter end. It is the longer 26AWG sibling of the 4m, 30AWG MCA7J70-N004.

The cable supports both InfiniBand NDR and Ethernet, with the firmware selecting the protocol automatically based on the attached switch. It is hot pluggable, uses an LSZH jacket and is RoHS compliant.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Splits one 800Gb/s port into four 200Gb/s links
- Based on 100G-PAM4 modulation
- Low power and low latency, a low-cost high-speed alternative to optics
- Equalizer IC extends copper reach to 5 m
- InfiniBand and Ethernet protocol selected automatically by the attached switch
- EEPROM on each end provides product identification to the host
- Hot pluggable with a single 3.3 V supply

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Part number: MCA7J70-N005
- Cable type: Active Copper Cable (ACC), dual breakout splitter
- Switch-end connector: twin-port OSFP, finned top
- Split-end connectors: 4 x OSFP, flat top
- Data rate: 800Gb/s to 4 x 200Gb/s
- Modulation: 8 channels of 100G-PAM4, 400G per OSFP tail
- Protocols: InfiniBand NDR and Ethernet
- Cable length: 5 m
- Cable gauge: 26AWG
- Cable diameter: 7.1 mm
- Minimum bend radius: 71 mm
- Supply voltage: 3.3 V (3.135 to 3.465 V)
- Power consumption: 1.5 W max at switch end, 0.3 W max per adapter end
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Operating relative humidity: 5 to 85 %
- Management interface: CMIS Rev 5.0 based I2C
- Form factor: OSFP MSA Rev 1.12 compliant
- Jacket: LSZH, RoHS compliant

FAQs

Q: Which switches and adapters does this cable connect?
A: It connects the 800Gb/s OSFP cages (finned top) on NVIDIA Quantum-2 InfiniBand and Spectrum-4 Ethernet switches to four OSFP-based 200Gb/s ConnectX-7 adapters.

Q: Does it work with both InfiniBand and Ethernet?
A: Yes. The cable firmware supports both InfiniBand NDR and Ethernet and selects the protocol automatically based on the attached switch.

Q: Does it need a separate power supply?
A: No. It draws power from the host ports on a single 3.3 V supply, up to 1.5 W at the switch end and 0.3 W per adapter end.

Q: How does it differ from the MCA7J70-N004?
A: This MCA7J70-N005 is 5m and uses 26AWG cable, while the MCA7J70-N004 is 4m and uses 30AWG.

Q: Is there a version for liquid-cooled systems?
A: Liquid-cooled systems can use the twin-port flat-top version, designated -FLT in the part number. This SKU has a finned-top switch-end connector.
