NVIDIA MCA7J70-N004 | LinkX 800G to 4x200G OSFP ACC Splitter Cable, 4m, NDR
SKU:MCA7J70-N004
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

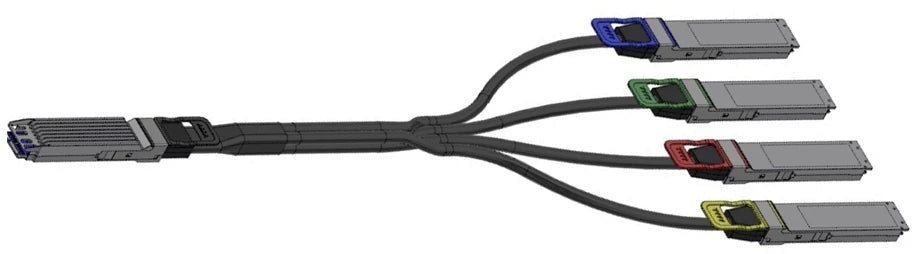

The NVIDIA LinkX MCA7J70-N004 is an active copper splitter cable that breaks one 800Gb/s twin-port OSFP connection out into four 200Gb/s OSFP links. It is built for AI and HPC racks where a Quantum-2 InfiniBand or Spectrum-4 Ethernet switch needs to feed several OSFP-based ConnectX-7 adapters over short in-rack or adjacent-rack runs.
This 4m version uses a twin-port finned-top OSFP connector at the switch end and four flat-top OSFP connectors at the host end. It carries 8 channels of 100G-PAM4 modulation and is made with 30AWG copper. An active equaliser circuit extends the reach to 4m while keeping latency and power low, at 1.5W at the switch end and 0.3W per host end. Firmware supports both InfiniBand NDR and Ethernet and selects the right protocol automatically based on the attached switch.
The flat-top OSFP host ends suit ConnectX-7 adapters that use riding heat sinks on the cage. The cable is hot pluggable on a single 3.3V supply and has an EEPROM at each end for product identification.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Splits one 800Gb/s connection into four 200Gb/s links
- Active equaliser circuit extends reach to 4m with low latency and low power
- Firmware supports both InfiniBand and Ethernet and enables the correct protocol automatically
- Flat-top OSFP host ends suit ConnectX-7 adapters with riding heat sinks
- Hot pluggable on a single 3.3V supply
- EEPROM at each end identifies the product to the host system
- LSZH jacket, lead-free and halogen-free PCB, RoHS compliant
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Type: Active Copper Cable (ACC) splitter
- Data rate: 800Gb/s split into 4 x 200Gb/s
- Switch-end connector: Twin-port OSFP, finned top, 8 channels
- Host-end connectors: 4 x OSFP, flat top, 2 channels each
- Modulation: 100G-PAM4
- Cable length: 4m
- Wire gauge: 30AWG
- Protocols: InfiniBand NDR and Ethernet, auto-selected by the attached switch
- Power consumption: 1.5W at switch end, 0.3W per host end
- Supply voltage: Single 3.3V
- Operating case temperature: 0 to 70 C
- Management interface: CMIS-based I2C
- Standards: OSFP MSA, IBTA IB HDR based
- Jacket: LSZH (Low Smoke Zero Halogen)
- PCB: Lead-free and halogen-free
- Compliance: RoHS
- Hot pluggable: Yes
- Ordering part number: 980-9I50D-00N004
FAQs
Q: What does the finned-top end connect to?
A: The twin-port finned-top OSFP end connects to an 800Gb/s OSFP port on a Quantum-2 InfiniBand switch or a Spectrum-4 Ethernet switch.
Q: Which adapters do the four flat-top ends connect to?
A: The four 200Gb/s flat-top OSFP ends are designed for OSFP-based ConnectX-7 PCIe adapters, which use riding heat sinks on the cage.
Q: Does it run InfiniBand or Ethernet?
A: Both. The firmware supports InfiniBand NDR and Ethernet and enables the correct one automatically based on the attached switch.
Q: Does it need external power?
A: No. It runs from a single 3.3V supply provided through the OSFP port and is hot pluggable.
Q: How does it differ from the QSFP112 host-end splitter?
A: This part has OSFP connectors on all four host ends. The MCA7J75 is a separate part that uses QSFP112 host ends, so choose according to the connector type on your adapters.
