NVIDIA MCA7J60-N005 | LinkX 800G to 2x400G OSFP Splitter Cable, NDR, 5m

SKU:MCA7J60-N005

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

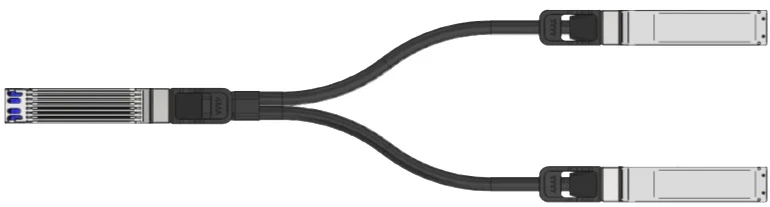

The NVIDIA LinkX MCA7J60 is an active copper splitter cable that breaks out one 800Gb/s twin-port OSFP connection into two 400Gb/s OSFP links. It is built for data centre, AI and HPC racks where a Quantum-2 InfiniBand NDR switch (or a Spectrum-4 Ethernet switch) needs to connect to two ConnectX-7 OSFP network adapters.

This 5m version uses 26AWG cable with 100G-PAM4 modulation across 8 channels, with 4 channels carried to each 400G tail. The cable has a finned-top twin-port OSFP head for the switch and two flat-top single-port OSFP tails for the adapters. Power draw is low at 1.5 W maximum at the 800G switch end and 0.6 W maximum at each 400G end, from a single 3.3V supply with no external power required. It differs from the MCA7J60-N004 by its 5m length and 26AWG gauge.

The firmware supports both InfiniBand and Ethernet and is enabled automatically based on the protocol of the attached switch. The two flat-top ends suit ConnectX-7 OSFP adapters with riding heat sinks. QSFP112 devices such as BlueField-3 DPUs need the QSFP112-end versions (MCA7J65 or MCA7J75).

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Splits one 800Gb/s twin-port OSFP into two 400Gb/s OSFP links
- Uses 100G-PAM4 modulation across 8 channels
- Hot-pluggable with a single 3.3V supply
- Firmware supports InfiniBand and Ethernet, enabled automatically based on the attached switch protocol
- Low power draw of 1.5 W at the switch end and 0.6 W per adapter end
- OSFP XMSA compliant with a CMIS compliant I2C management interface
- EEPROM on each end provides product identification to the host
- LSZH jacket and RoHS compliant construction

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ordering part number: MCA7J60-N005
- Form factor: OSFP twin-port finned-top head, 2 x single-port flat-top OSFP tails
- Data rate: 800Gb/s split to 2 x 400Gb/s
- Protocol: InfiniBand NDR (firmware also supports Ethernet)
- Cable type: Active Copper Cable (ACC)
- Modulation: 100G-PAM4, 8 channels (4 channels per 400G tail)
- Cable length: 5.0 m
- Length tolerance (2 m and over): +/-50 mm
- Cable gauge: 26AWG, 2x8 pairs
- Cable diameter: 8.9 +/-0.03 mm
- Minimum bend radius: 89 mm
- Power consumption, 800G switch end: 1.5 W max
- Power consumption, each 400G end: 0.6 W max
- Supply voltage: 3.135 / 3.3 / 3.465 V (min/typ/max)
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Storage temperature: -40 to 85 C
- Management interface: CMIS Rev 5.0 compliant I2C, max 400 kHz
- Propagation delay: 4.5 ns/m max
- Jacket: LSZH (Low Smoke Zero Halogen)
- Compliance: RoHS, CE, FCC, UKCA, RCM, VCCI

FAQs

Q: Which switch and adapter ports does this cable connect?
A: The finned-top twin-port OSFP end plugs into a Quantum-2 InfiniBand or Spectrum-4 Ethernet switch cage. The two flat-top single-port OSFP ends connect to ConnectX-7 OSFP adapters with riding heat sinks.

Q: Can it be used with QSFP112 devices such as BlueField-3 DPUs?
A: No. QSFP112 devices, including BlueField-3 DPUs and ConnectX-7 QSFP112 adapters, need the QSFP112-end versions of this splitter, MCA7J65 or MCA7J75.

Q: Does it need external power?
A: No. It runs from the host's single 3.3V supply, drawing a maximum of 1.5 W at the 800G switch end and 0.6 W at each 400G end.

Q: Does it work with Ethernet as well as InfiniBand?
A: Yes. The firmware supports both protocols and enables the correct one automatically based on the attached switch.

Q: How does MCA7J60-N005 differ from MCA7J60-N004?
A: MCA7J60-N005 is a 5m cable using 26AWG wire, while MCA7J60-N004 is a 4m cable using 30AWG wire.

Q: Is it suitable for liquid-cooled systems?
A: This part has a finned-top twin-port head for air-cooled switches. Liquid-cooled systems use the flat-top twin-port (-FLT) variant, which has a separate part number.
