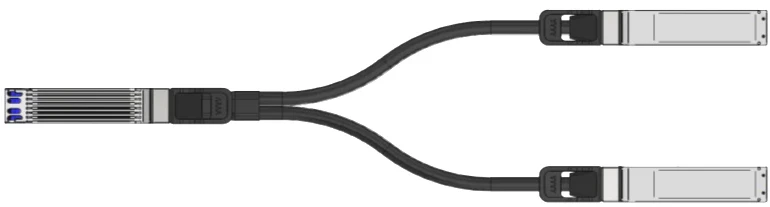

NVIDIA MCA7J60-N004 | LinkX 800G to 2x400G OSFP Splitter Cable, 4m, ACC
SKU:MCA7J60-N004
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This LinkX active copper splitter cable connects a single 800Gb/s twin-port OSFP switch port to two 400Gb/s OSFP ports. It is built for data-centre and AI/HPC fabrics where an NVIDIA Quantum-2 InfiniBand or Spectrum-4 Ethernet switch needs to feed two ConnectX-7 OSFP 400Gb/s adapters.
The 4 m, 30AWG cable uses 8 lanes of 100G-PAM4 signalling on the twin-port end and 4 lanes on each 400G end. The switch end is a finned-top twin-port OSFP, and the adapter ends are two flat-top single-port OSFP connectors designed for adapters with riding heat sinks. Power draw is low, at 1.5 W for the switch end and 0.6 W for each adapter end from a single 3.3V host supply. Operating case temperature is 0 to 70 C. Firmware supports both InfiniBand NDR and Ethernet and enables the correct protocol automatically based on the attached switch.
Being an active copper design, it offers lower latency and lower power than optical links, and sits as the second-lowest-cost link type after passive DACs. An EEPROM at each end reports identification and characteristics to the host, and the cable is hot pluggable with an LSZH jacket.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Splits one 800Gb/s port into two 400Gb/s links
- Firmware supports both InfiniBand and Ethernet and auto-enables the protocol based on the attached switch
- Lower latency and lower power than optical solutions
- Finned-top OSFP for Quantum-2 and Spectrum-4 switch cages
- Flat-top OSFP ends for ConnectX-7 adapters with riding heat sinks
- EEPROM on each end provides product identification to the host
- Hot pluggable with LSZH jacket and RoHS compliance
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: MCA7J60-N004
- Data rate: up to 800Gb/s split to 2 x 400Gb/s
- Cable type: Active Copper Cable (ACC) splitter
- Modulation: 100G-PAM4, 8 channels on the twin-port end, 4 channels on each 400G end
- Length: 4 m
- Wire gauge: 30AWG
- Switch-end connector: twin-port OSFP, finned top
- Adapter-end connectors: 2 x single-port OSFP, flat top
- Protocol: InfiniBand NDR and Ethernet, auto-detected by firmware
- Power consumption, switch end: 1.5 W
- Power consumption, each single-port OSFP end: 0.6 W
- Supply voltage: single 3.3V
- Operating case temperature: 0 to 70 C
- Jacket: LSZH (Low Smoke Zero Halogen)
- PCB: Lead Free, Halogen Free
- Hot pluggable: Yes
- Standards: OSFP MSA compliant, CMIS compliant I2C management interface
- Compliance: RoHS
- Identification: EEPROM at each end
FAQs
Q: What does this splitter cable connect?
A: It connects one 800Gb/s twin-port OSFP finned-top switch port on a Quantum-2 InfiniBand or Spectrum-4 Ethernet switch to two 400Gb/s ConnectX-7 OSFP adapters.
Q: Does it support InfiniBand and Ethernet?
A: Yes. The firmware supports both and automatically enables the correct protocol based on the attached switch.
Q: How much power does it draw?
A: It runs from a single 3.3V host supply. The twin-port OSFP switch end uses 1.5 W and each single-port OSFP adapter end uses 0.6 W.
Q: Will the adapter ends fit any OSFP port?
A: The adapter ends are flat-top single-port OSFP connectors intended for ConnectX-7 adapters with riding heat sinks. The switch end is a finned-top twin-port OSFP. A flat-top twin-port variant exists for liquid-cooled systems.
Q: How does this differ from a passive DAC?
A: This is an active copper cable with an equaliser IC, using 30AWG copper for a 4 m reach, which is longer than a passive DAC can typically support at 800Gb/s, while still using less power than optical links.
