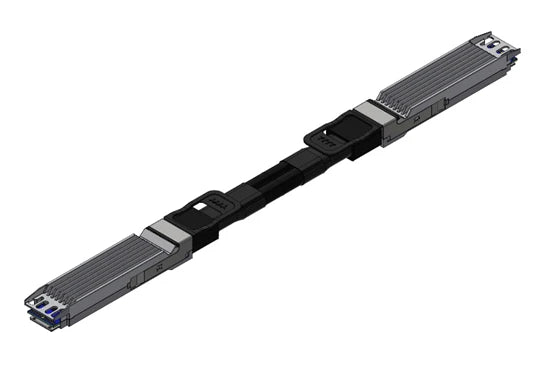

NVIDIA MCA4J80-N005 | LinkX 800G NDR Twin-Port OSFP Active Copper Cable, 5m
SKU:MCA4J80-N005
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 5 m active copper cable (ACC) from the NVIDIA LinkX InfiniBand NDR range links twin-port OSFP to twin-port OSFP, carrying 800Gb/s as 2x400Gb/s. It suits in-rack and adjacent-rack connections between NDR switches and servers or other switches in AI, HPC and data centre clusters, for runs of 3 to 5 m.
The cable uses 8 channels of 100G PAM4 modulation, and an equalizer IC in each connector extends copper reach to 5 m at very low power and latency. Each end draws 1.5 W maximum from a single 3.3 V supply supplied by the host port, so no external power is needed. This is the finned-top (heat sink) variant, which suits switch-side OSFP cages. Operating case temperature is 0 to +70 C.
It works with NVIDIA Quantum-2 NDR InfiniBand switches such as the QM9700 and QM9790, and with ConnectX-7 and other NDR adapters that have OSFP cages. For runs under 3 m, a passive DAC is the usual choice.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Active equalization in each connector extends copper reach to 5 m
- Very low latency and very low power compared with optical links
- Hot pluggable with EEPROM for product identification
- LSZH jacket with lead-free and halogen-free construction
- Finned-top (heat sink) connectors for use in Quantum-2 switch cages
- 2x400Gb/s NDR InfiniBand connectivity over a single twin-port cable
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: MCA4J80-N005
- Form factor: Twin-port OSFP to twin-port OSFP
- Aggregate data rate: 800Gb/s (2x400Gb/s NDR)
- Modulation and lanes: 8x 100G PAM4
- Cable type: Active Copper Cable (ACC)
- Cable length: 5 m (16 ft)
- Wire gauge: 26 AWG
- Connector: Finned top (heat sink) variant
- Power consumption: 1.5 W max per end
- Supply voltage: 3.3 V single supply
- Operating case temperature: 0 to +70 C
- Jacket: LSZH (Low Smoke Zero Halogen)
- Compliance: RoHS, lead free, halogen free PCB
- Specification basis: SFF-863
- Hot pluggable: Yes
- Identification: EEPROM in each end
FAQs
Q: Does this cable need external power?
A: No. Each end draws 1.5 W maximum from a single 3.3 V supply provided by the host OSFP port.
Q: What equipment does it connect?
A: It connects NVIDIA Quantum-2 NDR InfiniBand switches such as the QM9700 and QM9790, and ConnectX-7 and other NDR adapters with OSFP cages.
Q: What is the finned-top connector for?
A: The finned top is a heat sink design that suits switch-side OSFP ports, such as those in Quantum-2 switch cages.
Q: When should I choose an active copper cable instead of a passive DAC?
A: Active copper cables use an equalizer in each connector to reach 3 to 5 m. For runs under 3 m, a passive DAC is generally used instead.
Q: Is it hot pluggable?
A: Yes. The cable is hot pluggable and each end has an EEPROM for product identification.
