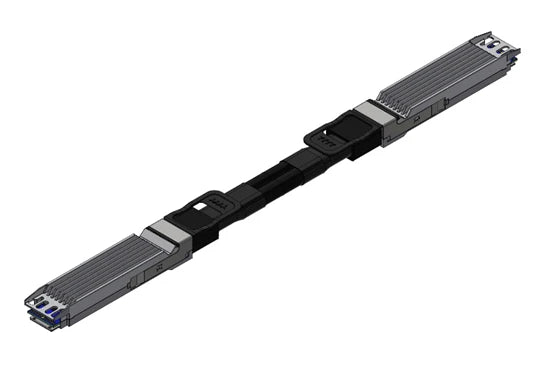

NVIDIA MCA4J80-N004 | LinkX 800G NDR Twin-Port OSFP Active Cable, 4m, 30AWG

SKU:MCA4J80-N004

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This LinkX active copper cable links NDR InfiniBand equipment over a 4 m run. It connects a twin-port OSFP at one end to two twin-port OSFP ends at the other, carrying 2x400Gb/s (up to 800Gb/s). It suits switch-to-switch links between 800Gb/s Quantum-2 switches and switch-to-server links such as DGX-H100 in InfiniBand NDR data-centre fabrics.

The cable uses 8 channels of 100G-PAM4 modulation over thin 30AWG conductors (2x8 pairs), with a cable diameter of 7.2 mm. An equaliser IC in each end is tuned to the cable length, which keeps latency very low. Power draw is a maximum of 1.5 W per end from a single 3.3V supply. The cable has an LSZH jacket and a lead-free, halogen-free PCB, is RoHS compliant, and is rated for 0 to 70 C case temperature.

It complies with OSFP MSA Specification Rev. 1.12 and is hot pluggable. The firmware supports both InfiniBand and Ethernet, and the mode is set automatically by the protocol of the attached switch. No licence or subscription is required. For runs under 3 m, NVIDIA recommends passive DAC cables instead.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Active copper cable with a pre-emphasis equaliser IC in each end, tuned per cable length to reduce noise and back reflections
- Very low latency and low power at 1.5 W max per end
- Firmware supports both InfiniBand and Ethernet, auto-enabled by the attached switch protocol
- EEPROM in each end provides product identification and characteristics to the host
- Hot pluggable for easy installation and replacement
- RoHS compliant with an LSZH jacket and lead-free, halogen-free PCB
- Each cable length is production-tested for out-of-the-box performance

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Data rate: 2x400Gb/s (up to 800Gb/s)
- Modulation: 8 channels of 100G-PAM4
- Connector: OSFP (twin-port) to 2x OSFP (twin-port)
- Cable length: 4.0 m
- Cable gauge: 30AWG, 2x8 pairs
- Cable diameter (30AWG): 7.2 mm
- Minimum bend radius (single): 5x diameter
- Minimum bend radius (repeated): 10x diameter
- Minimum bend radius for this cable: 72 mm
- Length tolerance (2 m and over): 50 mm
- Supply voltage: 3.135 to 3.465 V (3.3 V typical)
- Power consumption: 1.5 W max per end
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Storage temperature: -40 to 85 C
- Characteristic impedance: 90 / 100 / 110 ohm (min/typ/max)
- Propagation delay: 4.5 ns/m max
- Management interface: SFF-8636 based I2C with EEPROM in each end
- Form factor compliance: OSFP MSA Specification Rev. 1.12
- Jacket: LSZH, lead-free and halogen-free PCB
- Safety approvals: CB, TUV, CE, EAC, UKCA
- EMC approvals: CE, FCC (Class A), ICES, RCM, VCCI

FAQs

Q: Does this cable need a licence or subscription?
A: No. It is a passive-managed cable assembly with no licence or subscription required.

Q: How is the cable powered?
A: It is powered from the host port using a single 3.3V supply (3.135 to 3.465 V), drawing a maximum of 1.5 W per end.

Q: What equipment is it designed to connect?
A: It is designed for 2x400Gb/s NVIDIA Quantum-2 InfiniBand and Spectrum-4 Ethernet switch-to-switch and switch-to-DGX-H100 links, and is compliant with OSFP MSA Rev. 1.12.

Q: Does it support Ethernet as well as InfiniBand?
A: Yes. The firmware supports both protocols and enables the correct one automatically based on the attached switch.

Q: Should I use this cable for short runs?
A: For runs under 3 m, NVIDIA recommends passive DAC cables instead. This 4 m active cable suits longer in-rack and adjacent-rack links.
