NVIDIA

NVIDIA MCA4J80-N003-FTF | Quantum-2 800G NDR OSFP Active Copper Cable, 3m, Flat-Top to Finned

SKU:MCA4J80-N003-FTF

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

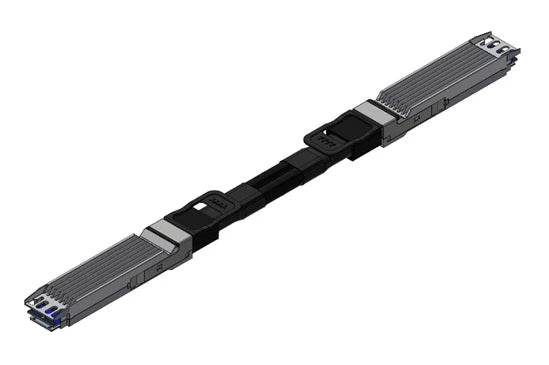

This is a 3 m active copper cable from the NVIDIA Quantum-2 InfiniBand NDR range, fitted with OSFP connectors on both ends. It is designed for short-reach InfiniBand NDR links in AI and HPC clusters and data centres, such as NIC-to-switch or switch-to-switch connections.

The cable carries up to 800Gb/s across two ports using 8 x 100Gb/s PAM4 lanes. One end has a flat-top housing and the other a finned-top housing, so a flat-top OSFP adapter port can be linked to a finned-top switch port without an adapter. The connectors are male OSFP and hot-pluggable. Wire gauge is 30 AWG, the minimum bend radius is 72 mm, and the operating temperature range is 0 to 70 C. The jacket is LSZH, lead-free and halogen-free.

The cable is intended for NVIDIA Quantum-2 InfiniBand NDR switches such as the MQM9700 and MQM9790 on the finned end, and ConnectX-7 or BlueField-3 OSFP adapters on the flat end. It is EEPROM-coded for NVIDIA platforms and draws power from the host port, so no separate power supply is needed.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Active copper design with integrated signal-conditioning circuitry for NDR speeds
- Twin-port 800Gb/s InfiniBand NDR using 8 x 100Gb/s PAM4 lanes
- Flat-to-finned design connects NICs and DPUs to switch ports without an adapter
- Hot-pluggable OSFP connectors
- Lead-free and halogen-free LSZH jacket
- EEPROM-coded for NVIDIA platforms

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Part number: MCA4J80-N003-FTF
- NVIDIA P/N: 980-9I601-00N003
- Cable type: 800GBase-CU active copper direct attach cable
- Connector: OSFP to OSFP (male), hot-pluggable
- Max data rate: up to 800Gb/s twin-port InfiniBand NDR
- Modulation: 8 x 100Gb/s PAM4
- Cable length: 3 m
- Thermal configuration: flat-top on one end, finned-top on the other
- Wire gauge: 30 AWG
- Minimum bend radius: 72 mm
- Jacket material: LSZH, lead-free, halogen-free
- Operating temperature: 0 to 70 C
- Compliance: TUV, RoHS, FCC Part 15 A, CB, EAC, ICES, RCM, UKCA, VCCI, WEEE

FAQs

Q: What is the difference between the flat-top and finned-top ends?
A: The flat-top end suits OSFP adapter ports such as ConnectX-7 and BlueField-3 cards, while the finned-top end suits the OSFP cages on Quantum-2 switches. This lets you link a NIC to a switch without an adapter.

Q: Which equipment does this cable work with?
A: It is intended for NVIDIA Quantum-2 InfiniBand NDR switches such as the MQM9700 and MQM9790 on the finned end, and ConnectX-7 or BlueField-3 OSFP adapters on the flat end.

Q: Does it need a separate power supply?
A: No. It draws power from the host port and does not need a separate power supply.

Q: What speed does it support?
A: It supports up to 800Gb/s twin-port InfiniBand NDR, using 8 x 100Gb/s PAM4 lanes.

Q: How far can it reach?
A: This version is 3 m long, suited to short-reach links within or between adjacent racks.
