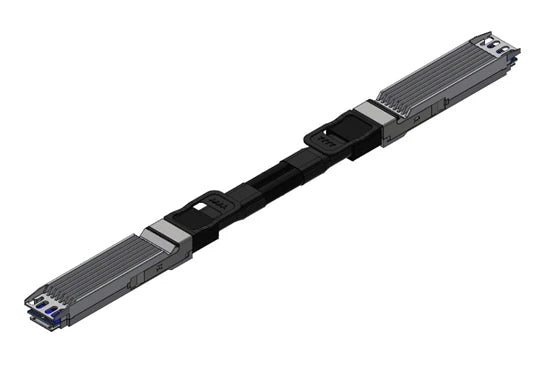

NVIDIA MCA4J80-N003-FLT | LinkX 800G OSFP NDR Active Copper Cable, 3m, Flat Top
SKU:MCA4J80-N003-FLT
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The LinkX MCA4J80-Nxxx is a 3 m twin-port 800Gb/s OSFP to twin-port 2x400Gb/s OSFP active copper cable for InfiniBand NDR networking. It is built for switch-to-switch links between Quantum-2 switches and for switch-to-DGX-H100 connections, where the flat-top OSFP connectors on both ends suit the DGX-H100 case.
The cable carries 2x400Gb/s using 8 channels of 100G PAM4 modulation. Each connector contains an equaliser IC that extends reach over copper while keeping power at 1.5 W max per end, with propagation delay of 4.5 ns/m max. It runs from a single 3.3 V supply supplied by the host port, is hot pluggable, and has an operating case temperature range of 0 to 70 C. The LSZH jacket is lead-free and halogen-free, and the OSFP connectors are OSFP MSA Rev. 1.12 compliant.
It suits 2x400Gb/s Quantum-2 InfiniBand or Spectrum-4 Ethernet links. Each end carries an EEPROM with product identification and characteristics, read by the host system over an SFF-8636 based I2C management interface.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 2x400Gb/s data rate based on 8 channels of 100G PAM4
- Very low power at 1.5 W max per end
- Low latency, with each cable length tuned to reduce signal noise and back reflections
- EEPROM in each end holds product identification and characteristics for the host system
- Hot pluggable with a single 3.3 V supply
- Flat-top OSFP connectors suited to DGX-H100 links
- LSZH jacket, RoHS compliant, lead-free and halogen-free
- Firmware supports both InfiniBand and Ethernet
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product type: Active copper cable, InfiniBand NDR
- Connectors: OSFP twin-port, flat top on both ends
- Data rate: 800Gb/s twin-port OSFP to 2x400Gb/s twin-port OSFP
- Modulation: 8 channels of 100G PAM4
- Length: 3 m
- Supply voltage: 3.135 min / 3.3 typ / 3.465 max V
- Power consumption: 1.5 W max per end
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Characteristic impedance: 90 / 100 / 110 ohm (min/typ/max)
- Propagation delay: 4.5 ns/m max
- Minimum bend radius: 5x diameter single, 10x diameter repeated
- Management interface: SFF-8636 based I2C
- Form factor: OSFP MSA Rev. 1.12 compliant
- Jacket: LSZH
- Compliance: RoHS, lead-free, halogen-free
- Hot pluggable: Yes
- NVIDIA OPN: 980-9I600-00N003
FAQs
Q: What power does this cable need?
A: It runs from a single 3.3 V supply (3.135 to 3.465 V) provided by the host port. Power consumption is 1.5 W max per end.
Q: What is this cable designed to connect?
A: It is designed for 2x400Gb/s Quantum-2 InfiniBand or Spectrum-4 Ethernet switch-to-switch links and for switch-to-DGX-H100 links. The flat-top connectors suit the DGX-H100 case.
Q: How does the 3m flat-top version differ from other cables in this family?
A: This SKU is 3 m long with flat-top OSFP connectors on both ends. Other lengths and flat-and-finned-top variants exist in the same family under different part numbers.
Q: Is this cable hot pluggable?
A: Yes. The OSFP connectors are hot pluggable and comply with OSFP MSA Rev. 1.12.
Q: What is the minimum bend radius?
A: The minimum bend radius is 5x the cable diameter for a single bend and 10x the cable diameter for repeated bending.
