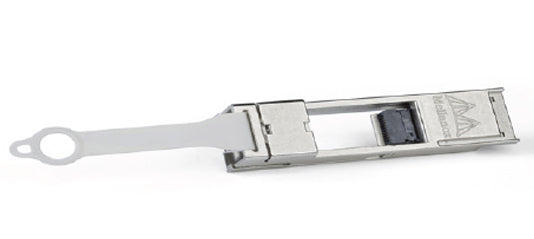

NVIDIA MAM1Q00A-QSA | QSFP+ to SFP+ Adapter, 10GbE Pass-Through (QSA)
SKU:MAM1Q00A-QSA
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The MAM1Q00A-QSA is a passive QSFP+ to SFP+ adapter, also known as a QSA, from the NVIDIA LinkX / DynamiX QSA range. It fits into a QSFP+ port and accepts a single-lane SFP+ or SFP transceiver, DAC or AOC, so a 40GbE QSFP+ switch or NIC port can connect to 10GbE or 1GbE media.
It is typically used to connect a QSFP+ switch port to an SFP-based NIC or cable, or a QSFP+ NIC port to an SFP switch port, and to bridge or migrate 40GbE ports to 10GbE and 1GbE links in mixed-vendor data centre environments. The adapter conforms to QSFP+ MSA SFF-8436 on the host side and SFP+ SFF-8418/8419 on the module side. SFP TX1/RX1 maps to QSFP+ lane 1, and lanes 2 to 4 are terminated.
The adapter is passive and draws a maximum of 0.1 W from the host port at 3.3 V. Wavelength, reach and media type are set by the SFP+ module or cable inserted. It fits QSFP+ ports on 40GbE switches and NICs such as the ConnectX-3 and SX1012.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Direct connection between a single-lane SFP+ or SFP module or cable and a quad-lane QSFP+ port
- Vendor agnostic, works with major optical module and DAC cable vendors
- Direct path to the SFP module memory (I2C) for management
- Low insertion loss and matched impedance
- Secure latching mechanism
- Passive design with very low power draw
- RoHS compliant
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Host side form factor: QSFP+ (SFF-8436)
- Module side form factor: SFP+/SFP receptacle (SFF-8418/8419)
- Supported media: 10GbE SFP+ and 1GbE SFP transceivers, DAC and AOC cables meeting the SFP MSA
- Lane mapping: SFP TX1/RX1 connected to QSFP+ lane 1, QSFP+ lanes 2 to 4 terminated
- Adapter type: Passive
- Power consumption: 0.1 W max
- Supply voltage (Vcc): 3.135 min / 3.3 typ / 3.465 max V
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Storage temperature: -40 to 85 C
- Absolute maximum supply voltage: -0.3 to 3.6 V
- Characteristic impedance: 90 / 100 / 110 ohm (min/typ/max)
- Safety certification: CB, CE
- EMC certification: CE, FCC (Class A), ICES, RCM
- RoHS: Compliant
FAQs
Q: What speeds does this adapter support?
A: It supports 10GbE SFP+ and 1GbE SFP modules in a QSFP+ port. The link speed depends on the SFP+ or SFP module or cable inserted.
Q: Does it need external power or a licence?
A: No. It is a passive adapter powered from the host QSFP+ port at 3.3 V, with a maximum consumption of 0.1 W, and it requires no licence.
Q: What can I plug into the SFP+ side?
A: It accepts 10GbE SFP+ and 1GbE SFP transceivers, plus AOC and DAC cables that meet the SFP MSA.
Q: Which devices does it fit?
A: It fits QSFP+ ports on 40GbE switches and NICs, for example the ConnectX-3 NIC and SX1012 switch.
Q: Do all four QSFP+ lanes carry traffic?
A: No. Only QSFP+ lane 1 is connected to the SFP TX1/RX1 pair. Lanes 2 to 4 are terminated.
