NVIDIA C-DQ8FNM003-H0-M | LinkX 400G QSFP-DD AOC, 3 m, 850 nm MMF
SKU:C-DQ8FNM003-H0-M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

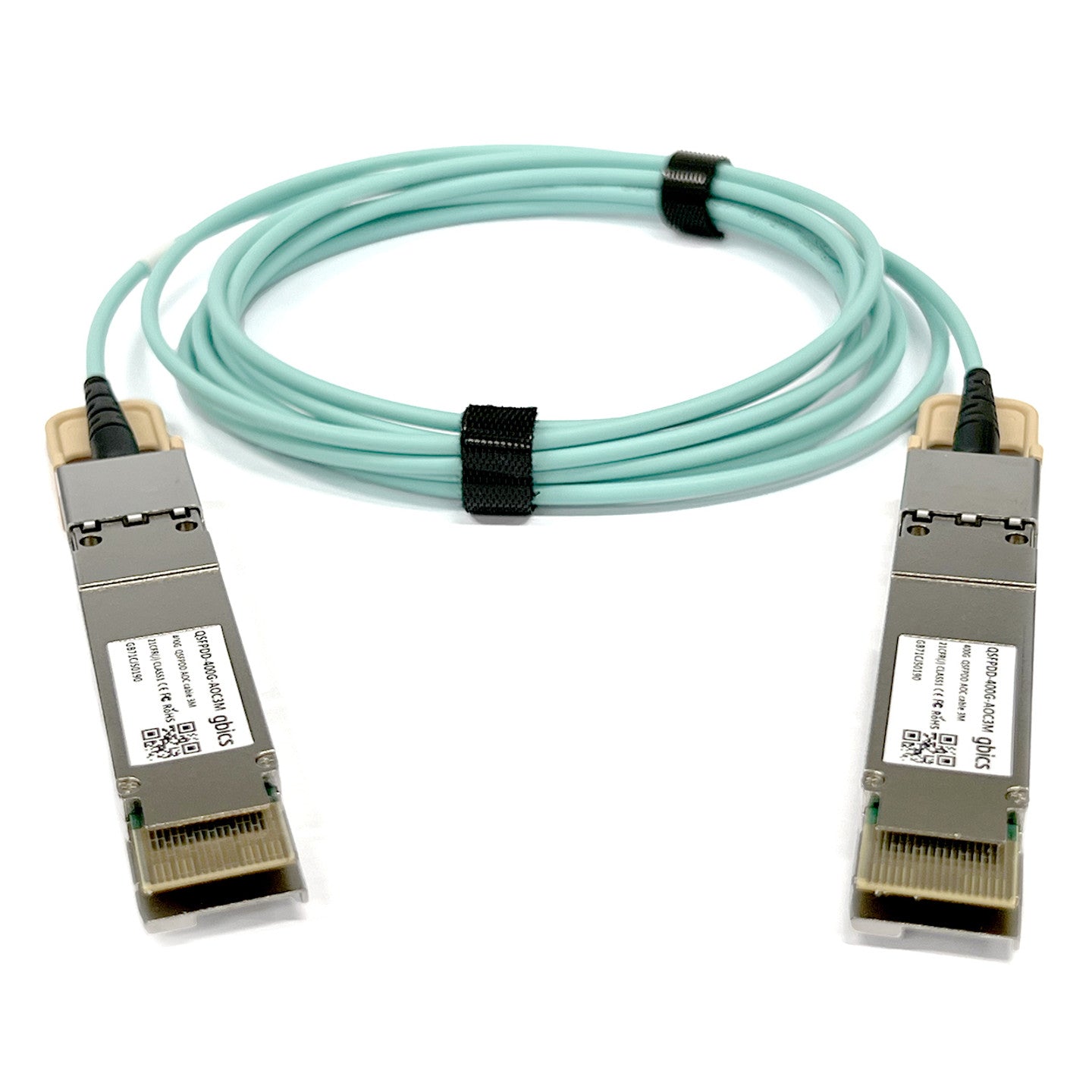

The NVIDIA LinkX C-DQ8FNM003-H0-M is a 3 m point-to-point 400G active optical cable with QSFP-DD connectors at both ends. It runs over 850 nm multimode fibre and is intended for short-reach links inside data centres and equipment rooms, such as switch-to-switch or switch-to-server connections.
The cable carries 8 x 50G PAM4 electrical lanes and uses a VCSEL transmitter with a PIN photodiode receiver. Fibre type is OM3 for runs of 1 to 70 m and OM4 up to 100 m, with this SKU supplied at a fixed 3 m length. It draws a +3.3 V single supply from the host port, with a maximum power consumption of 8 W, and supports DDM/DOM diagnostics and host FEC.
It is designed for QSFP-DD ports on NVIDIA networking equipment, supporting 200G and 400G Ethernet and InfiniBand EDR and HDR applications, depending on the host port.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- QSFP-DD MSA compliant transceiver assemblies at each end of the cable
- Multi-mode fibre construction for cost-effective short-reach links
- Digital diagnostics monitoring (DDM/DOM)
- CMIS 4.0 management interface
- Supports 200G and 400G Ethernet and InfiniBand EDR and HDR applications
- CE and RoHS compliant
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Cable type: Active Optical Cable (AOC)
- Configuration: Point-to-point
- Connector type: QSFP-DD to QSFP-DD
- Data rate: 400G
- Electrical lanes: 8 x 50G PAM4
- Length: 3 m
- Media type: Multi-mode fibre (MMF)
- Wavelength: 850 nm
- Fibre type: OM3 (1-70 m), OM4 (100 m)
- Transmitter: VCSEL laser
- Receiver: PIN photodiode
- DDM/DOM: Supported
- Forward error correction: Host FEC supported
- Power supply: +3.3 V single supply
- Maximum power consumption: 8 W
- Operating temperature: 0 to 70 C
- MTBF: 1,000,000 hours
- Compliance: CE, RoHS, QSFP-DD MSA, CMIS 4.0, IEEE 802.3cd
FAQs
Q: What ports does this cable connect to?
A: It has QSFP-DD connectors at both ends and is designed for QSFP-DD ports on NVIDIA networking equipment. Supported modes depend on the host port.
Q: Does it need a separate licence or optics?
A: No. The transceivers are built into the cable, so it plugs directly into a QSFP-DD port at each end without separate optics.
Q: How much power does it draw?
A: It runs from a +3.3 V single supply provided by the host port, with a maximum power consumption of 8 W.
Q: Which applications does it support?
A: It supports 200G and 400G Ethernet as well as InfiniBand EDR and HDR applications, depending on the host port.
