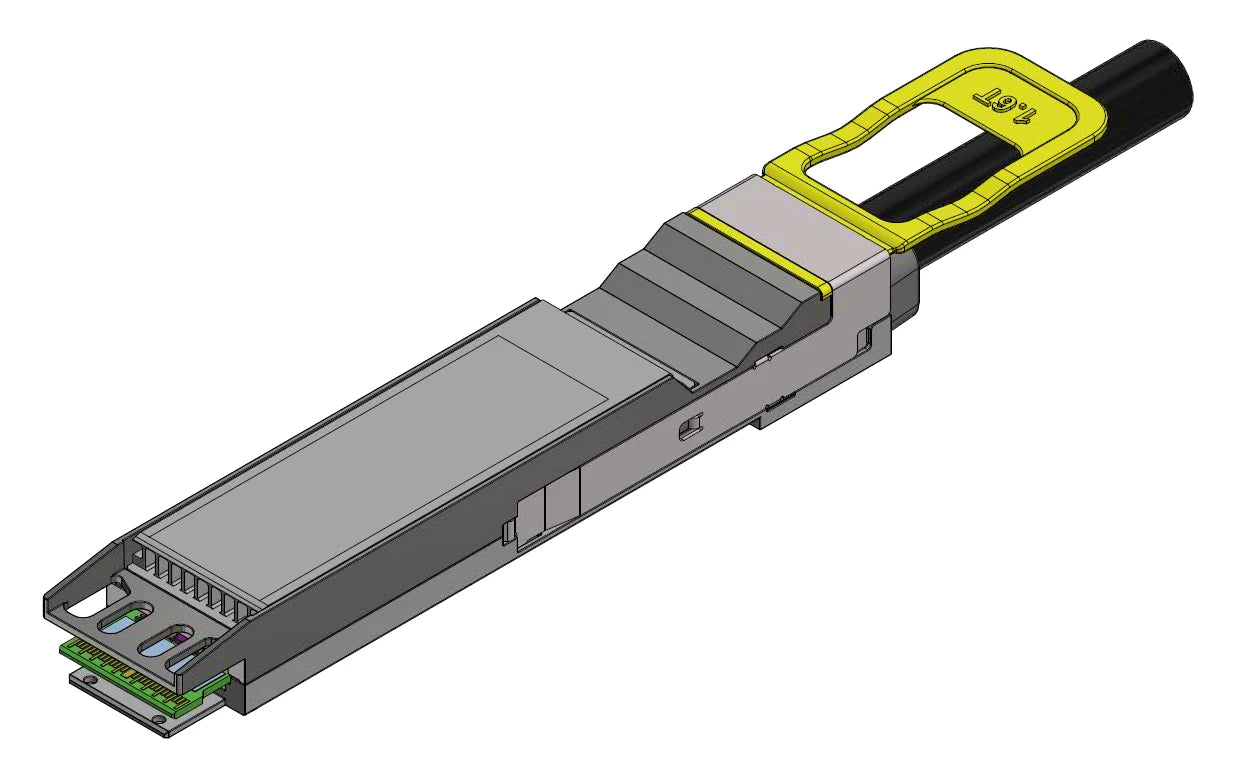

NVIDIA 980-9IAM5-00X01A | LinkX 1.6T OSFP Active Copper Cable, 1.5m, IHS to IHS
SKU:980-9IAM5-00X01A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 1.6Tb/s OSFP-to-OSFP active copper cable is part of the NVIDIA LinkX range and measures 1.5 m. It is built for short-reach 1.6T switch-to-switch links in AI and HPC fabrics, including InfiniBand XDR and Quantum-3 XDR switch deployments.
The cable carries eight lanes of 200G-PAM4 modulation for a total data rate of 1600Gb/s. Both ends use the integrated heat sink (IHS) form factor, so it needs OSFP ports with a finned or closed-top cage. It uses 26AWG conductors in a 2x8 pair construction and runs from a single 3.3 V supply drawn from the host port, with a maximum power consumption of 27 W and an operating case temperature of 0 to 70 C.
The cable is hot pluggable, uses an SFF-8636 compliant I2C management interface, and follows SFF-8665 and the OSFP MSA. The LSZH jacket suits enclosed data centre cable runs.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 1600Gb/s data rate built on 8 channels of 200G-PAM4
- Hot pluggable for in-service installation and replacement
- Integrated heat sink (IHS) form factor on both ends
- Compliant with SFF-8665, the OSFP MSA and the SFF-8636 I2C management interface
- LSZH (Low Smoke Zero Halogen) jacket
- RoHS compliant
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Model number: MCA4K50
- Data rate: 1600 Gb/s (1.6T)
- Modulation: 8 channels of 200G-PAM4
- Form factor: OSFP to OSFP, IHS to IHS
- Cable length: 1.5 m
- Length tolerance: +/-50 mm (lengths of 1.5 m and above)
- Cable gauge: 26AWG, 2x8 pairs
- Cable diameter (26AWG): 10.5-11.5 mm
- Minimum bend radius: 90 mm (single end) / 135 mm (combined end)
- Supply voltage (Vcc): 3.135 min / 3.3 typ / 3.465 max V
- Power consumption: 27 W max
- Operating case temperature: 0 to 70 C
- Management interface: SFF-8636 compliant I2C
- Standards compliance: SFF-8665, OSFP MSA (Rev. 1.12)
- Jacket: LSZH (Low Smoke Zero Halogen)
- Compliance: RoHS
- Hot pluggable: Yes
FAQs
Q: Does this cable need a licence or subscription?
A: No. It is a passive-powered active copper cable that draws 3.3 V from the host port and needs no licence.
Q: What kind of OSFP port does it need?
A: Because both ends are IHS, it needs OSFP ports with a finned or closed-top (IHS) cage.
Q: What is it designed to connect?
A: It is designed for short-reach 1.6T switch-to-switch links, such as between Quantum-3 XDR switches in AI and HPC fabrics.
Q: How much power does it draw?
A: It runs from a single 3.3 V supply (3.135 to 3.465 V) supplied by the host port, with a maximum power consumption of 27 W.
Q: What is the minimum bend radius?
A: The minimum bend radius is 90 mm at a single end and 135 mm at the combined end.
