NVIDIA 980-9IAM5-00X001 | LinkX 1.6T OSFP Active Copper Cable, 1.1m, IHS to IHS
SKU:980-9IAM5-00X001
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

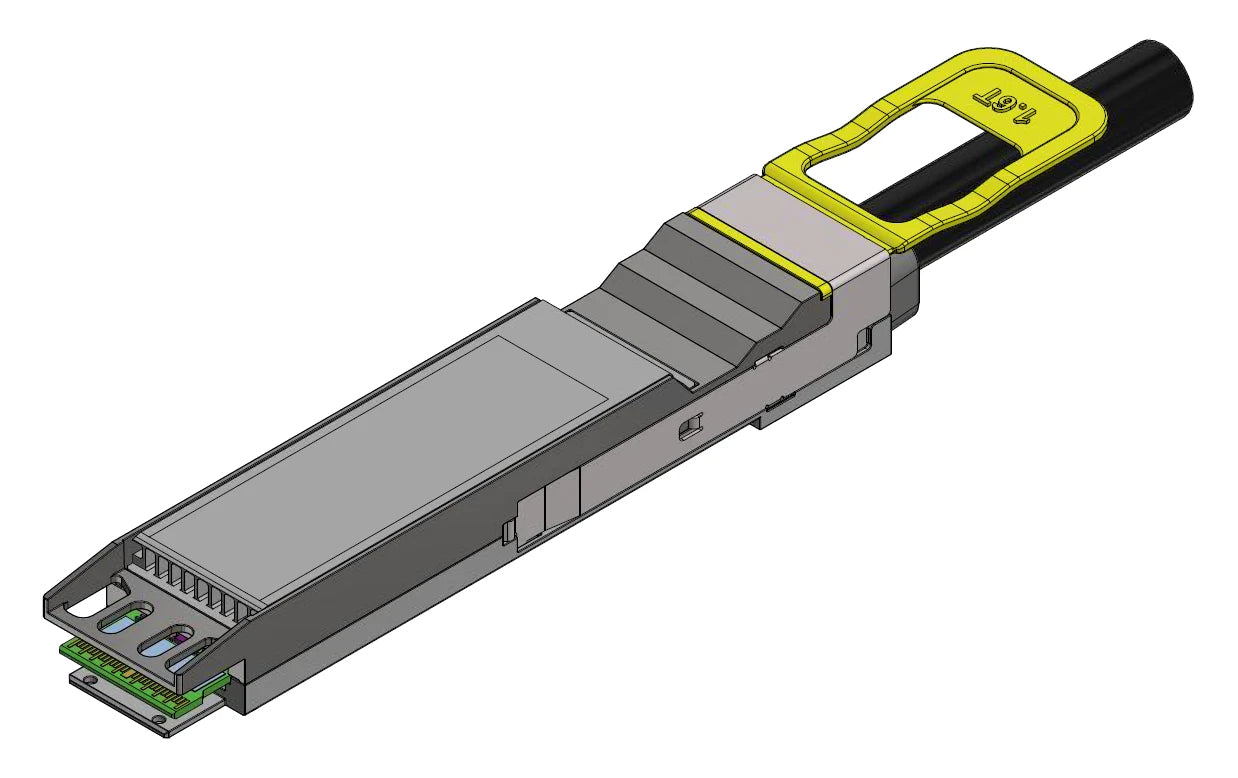

The NVIDIA LinkX MCA4K50 is a 1.6T OSFP-to-OSFP active copper cable built for short-reach XDR switch-to-switch links in AI and HPC backend fabrics. It gives network engineers a low-latency, low-power alternative to optical transceivers where racks sit close together.
This SKU is the 1.1 m length with an integrated heat sink (IHS) on both ends. It carries 1600Gb/s using 8 channels of 200G-PAM4 in a 1:1 configuration with no breakout. Power is drawn from the host port on a single 3.3 V supply, with a maximum consumption of 27 W and an operating case temperature of 0 to 70 C. The cable uses an LSZH jacket, is RoHS compliant and is hot pluggable, with an SFF-8636 compliant I2C management interface. No licence or subscription is required.
It is positioned for connecting Quantum-3 XDR switches and supports InfiniBand XDR firmware. The host needs OSFP ports that support 1.6T (8x200G) operation and accept IHS (closed finned top) modules. The cable complies with the OSFP MSA.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 1600Gb/s data rate using 8 channels of 200G-PAM4
- Active signal conditioning extends reach beyond passive copper, with lower power and cost than optical transceivers
- Integrated heat sinks on both ends for thermal performance in dense switch deployments
- Hot-pluggable with an SFF-8636 compliant I2C management interface
- LSZH jacket and RoHS compliant
- Production-tested by NVIDIA for out-of-the-box performance and durability
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Data rate: 1600 Gb/s (1.6T)
- Modulation: 8 channels of 200G-PAM4
- Cable type: Active Copper Cable (ACC), OSFP to OSFP, 1:1
- Thermal profile: IHS (Integrated Heat Sink) to IHS
- Cable length: 1.1 m
- Wire gauge: 26 AWG
- Supply voltage (Vcc): 3.135 V min, 3.3 V typical, 3.465 V max
- Absolute maximum supply voltage: 3.6 V
- Maximum power consumption: 27 W
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Jacket: LSZH (Low Smoke Zero Halogen)
- Hot pluggable: Yes
- Management interface: SFF-8636 compliant I2C
- Standards: OSFP MSA (Rev 1.12), SFF-8665, SFF-8636
- Firmware protocol support: InfiniBand XDR
- Compliance: RoHS
FAQs
Q: Does this cable need a licence or subscription?
A: No. It is a passive-powered active copper cable with no licence or subscription required.
Q: What power does it draw?
A: It is powered from the host port on a single 3.3 V supply (3.135 to 3.465 V). Maximum power consumption is 27 W.
Q: What switch ports does it work with?
A: It is designed for Quantum-3 XDR switches and supports InfiniBand XDR firmware. The host needs OSFP ports that support 1.6T (8x200G) operation and accept IHS (closed finned top) modules.
Q: What does IHS to IHS mean on this SKU?
A: IHS stands for Integrated Heat Sink. Both OSFP ends have a closed finned top, which suits ports designed for IHS modules. Other SKUs in the range use different thermal profiles and lengths.
Q: Is this a breakout cable?
A: No. It is a 1:1 OSFP-to-OSFP cable carrying 1600Gb/s over 8 lanes of 200G-PAM4 end to end.
