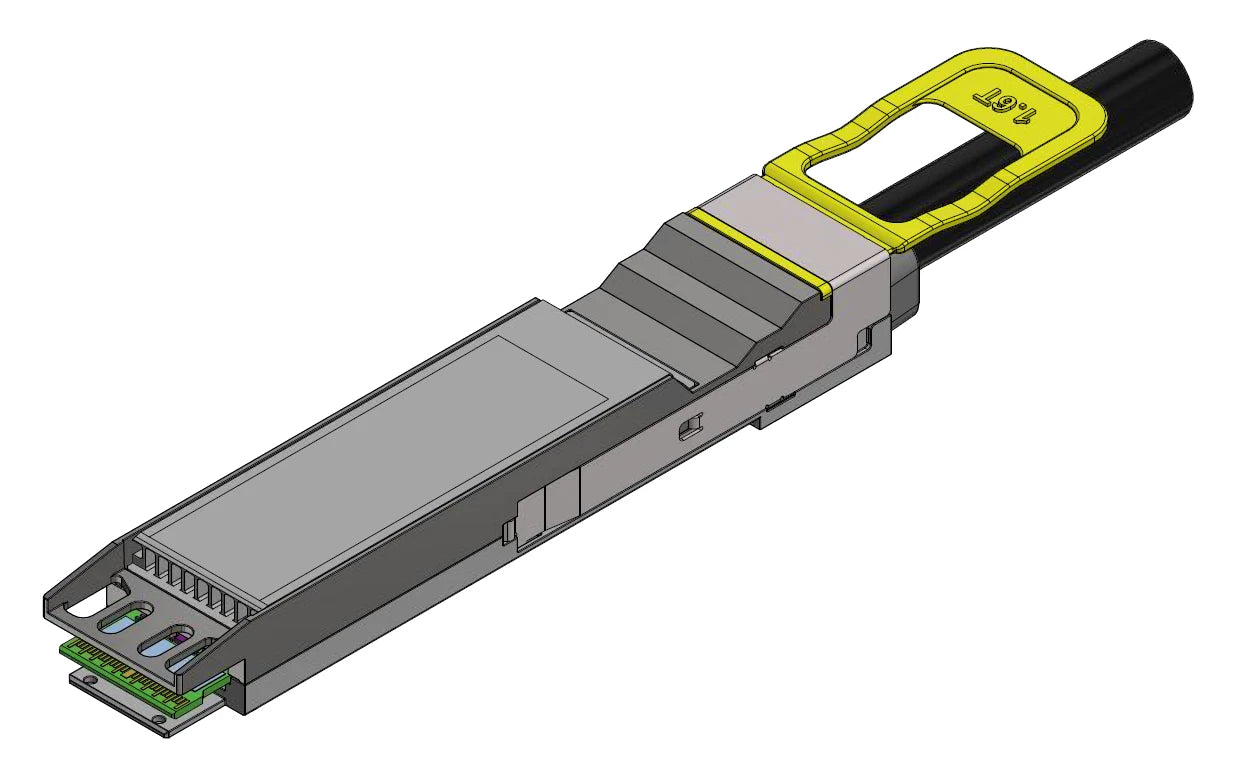

NVIDIA 980-9IAM3-00X002 | 1600G OSFP Active Copper Cable, 2m, IHS to IHS
SKU:980-9IAM3-00X002
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This NVIDIA MCA4K50 is a 1600Gb/s OSFP to OSFP active copper cable, 2 m long, with an integrated heat sink (IHS) on both ends. It is built for 1600Gb/s XDR switch-to-switch connectivity in AI and HPC data centres, and is intended for OSFP ports on Quantum-3 XDR switches.
The cable carries eight lanes of 200G PAM4 for a total data rate of 1600Gb/s, using 26AWG conductors in a 2x8 pair construction. Maximum power consumption is 27 W from a single 3.3V host supply, and the operating case temperature range is 0 to 70 C. The jacket is LSZH, and the cable is SFF-8665 compliant and OSFP MSA based, with an SFF-8636 compliant I2C management interface. Cable firmware supports InfiniBand XDR.
The combined end is the head that inserts into the switch, and the single end is the tail that plugs into a server HCA or NIC. No licence or subscription is required.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 1600Gb/s data rate based on 8 lanes of 200G PAM4
- SFF-8665 compliant and OSFP MSA based
- SFF-8636 compliant I2C management interface
- Hot pluggable
- Integrated heat sinks (IHS) on both connector ends
- Single 3.3V supply voltage with 27 W maximum power consumption
- LSZH (Low Smoke Zero Halogen) jacket
- Firmware supports InfiniBand XDR
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: 980-9IAM3-00X002
- Data rate: 1600 Gb/s (8 x 200G PAM4)
- Connectors: OSFP to OSFP, IHS to IHS
- Length: 2.0 m
- Conductor: 26AWG, 2x8 pairs
- Cable diameter: 10.5 to 11.5 mm
- Supply voltage (Vcc): 3.135 / 3.3 / 3.465 V (min/typ/max)
- Power consumption: 27 W max
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Storage temperature: -40 to 85 C
- Absolute max supply / data input / control input voltage: -0.3 to 3.6 V
- Characteristic impedance: 90 / 100 / 110 ohm (min/typ/max)
- Latency: 75 ns typ, 85 ns max
- Length tolerance: +/-25 mm (length under 1.5 m), +/-50 mm (length 1.5 m or more)
- Minimum bend radius: 90 mm
- Assembly space (combined/single end): 135 mm
- Management interface: SFF-8636 compliant I2C
- Jacket: LSZH
- Compliance: SFF-8665, OSFP MSA based, RoHS
FAQs
Q: Does this cable need a licence or subscription?
A: No. It is a passive-managed interconnect that needs no licence or subscription.
Q: How is the cable powered?
A: It draws power from the host port on a single 3.3V supply (3.135 to 3.465 V), with a maximum consumption of 27 W.
Q: Which ports is it intended for?
A: It is intended for OSFP ports on Quantum-3 XDR switches for 1600Gb/s XDR switch-to-switch links. The cable firmware supports InfiniBand XDR.
Q: What is the difference between the combined end and the single end?
A: The combined end is the head that inserts into the switch. The single end is the tail that plugs into a server HCA or NIC.
Q: What does IHS to IHS mean in the part description?
A: IHS stands for integrated heat sink. This variant has an integrated heat sink on both OSFP connector ends.
