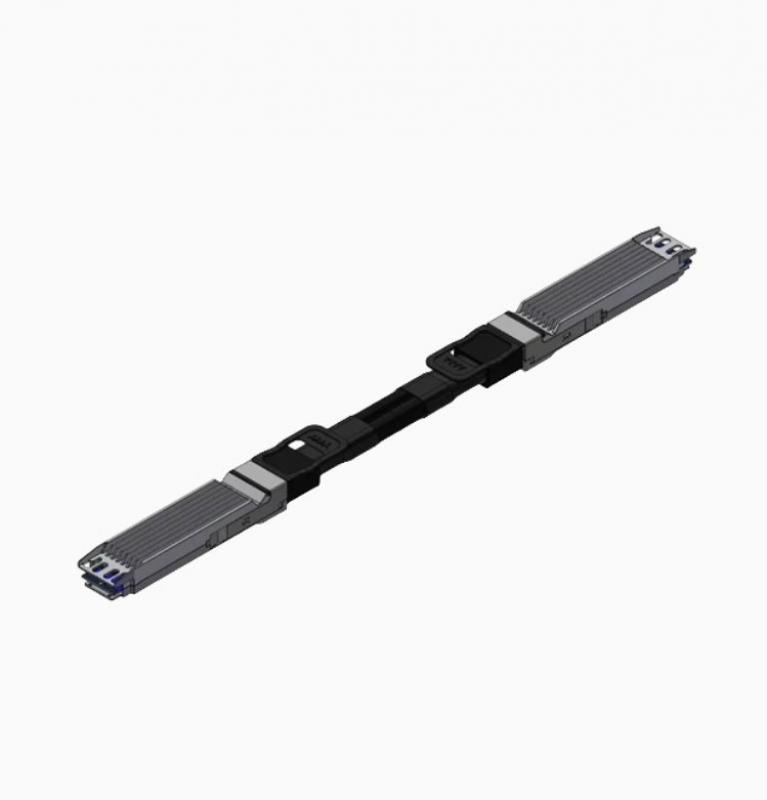

NVIDIA 980-9IA0Q-00N01A | 800G Twin-Port OSFP DAC Cable, NDR, 1.5m, 30AWG
SKU:980-9IA0Q-00N01A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This passive direct-attach copper cable from the NVIDIA LinkX MCP4Y10-Nxxx family has twin-port OSFP connectors at both ends and carries 2x400Gb/s, 800Gb/s in total, over eight 100G-PAM4 lanes. It is built for short-reach switch-to-switch links between Quantum-2 InfiniBand NDR switches or Spectrum-4 Ethernet switches, and for switch-to-DGX H100 connections in AI and HPC data centres.
This variant is 1.5 m long and uses 30AWG cable, 2x8 pairs, with a 7.2 mm diameter and a 72 mm minimum bend radius. Both ends are finned-top OSFP connectors, the standard non-FLT type. The cable is passive and unequalised, drawing 0.1 W maximum from a single 3.3V supply provided by the host port. It operates over a case temperature range of 0 to 70 C and has an LSZH jacket.
The cable firmware supports both InfiniBand and Ethernet and enables the matching mode automatically. It is designed for twin-port OSFP Quantum-2 InfiniBand NDR switches such as the QM9700 and QM9790, and for Spectrum-4 Ethernet switches. Flat-top FLT variants for liquid-cooled switches and DGX H100 systems are a separate part.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Low-cost, low-latency, near-zero-power high-speed link
- Firmware supports both InfiniBand and Ethernet and enables the matching mode automatically
- Hot pluggable with a single 3.3V supply
- Each cable length is tuned to reduce internal signal noise and back reflections
- Rigorous production testing for out-of-the-box installation, performance and durability
- Thin 30AWG cable for easy bending in dense racks
- EEPROM holds product configuration data for the host to read
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- NVIDIA OPN: 980-9IA0Q-00N01A
- Legacy OPN: MCP4Y10-N01A
- Data rate: 2x400Gb/s, up to 800Gb/s
- Modulation: 8 channels of 100G-PAM4
- Connector: twin-port OSFP to twin-port OSFP, finned top both ends
- Cable type: passive copper DAC, unequalised
- Cable length: 1.5 m
- Wire gauge: 30AWG, 2x8 pairs
- Cable diameter: 7.2 mm
- Minimum bend radius: 72 mm
- Supply voltage: 3.135 to 3.465 V, 3.3 V typical
- Power consumption: 0.1 W max
- Power class: Class 1
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Operating relative humidity: 5 to 85 %
- Characteristic impedance: 90 / 100 / 110 ohm (min / typ / max)
- Management interface: SFF-8636 compliant I2C, CMIS Rev 5.0 memory map
- Compliance: SFF-8665, OSFP MSA Rev 1.12, RoHS, LSZH jacket
FAQs
Q: Does this cable need a licence or external power?
A: No. It is a passive copper cable with no external power, drawing 0.1 W maximum from the 3.3V supply provided by the host port.
Q: Which switches is it designed for?
A: It is designed for twin-port OSFP NVIDIA Quantum-2 InfiniBand NDR switches such as the QM9700 and QM9790, and Spectrum-4 Ethernet switches, for switch-to-switch links.
Q: Can it be used for Ethernet as well as InfiniBand?
A: Yes. The firmware supports both protocols and enables the matching mode automatically.
Q: How does this part differ from the flat-top variants?
A: This SKU has finned-top connectors on both ends, the standard non-FLT type. Flat-top FLT variants for liquid-cooled switches and DGX H100 systems are a separate part.
Q: What is the maximum reach of this cable family?
A: The datasheet lists a maximum reach of 2 m for the family. This variant is 1.5 m long.
