NVIDIA 980-9IA0L-00N00A | LinkX MCP4Y10 800G OSFP DAC, 0.5m, Flat Top, 30AWG

SKU:980-9IA0L-00N00A

$1,216.93 inc. GST
$1,106.30 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

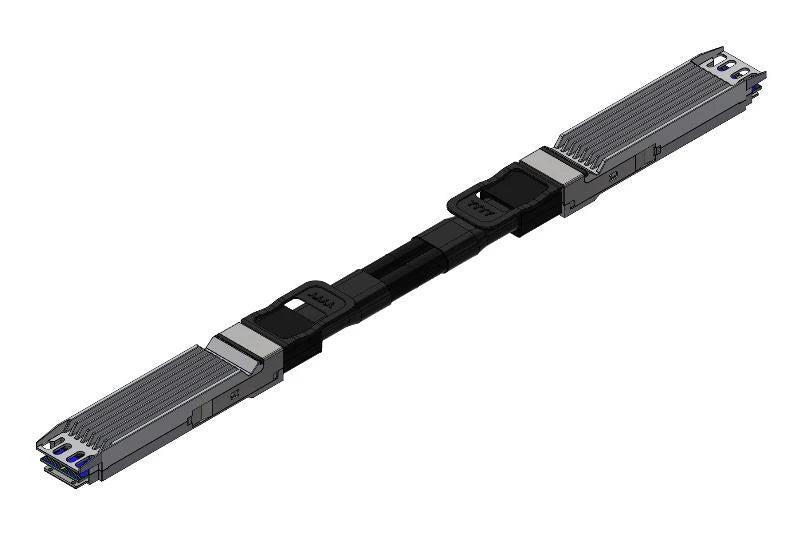

This NVIDIA LinkX MCP4Y10 is a 0.5m passive copper direct attach cable with twin-port OSFP connectors. It carries 2x400Gb/s, up to 800Gb/s in total, across eight channels of 100G-PAM4 for Quantum-2 InfiniBand NDR or Spectrum-4 Ethernet links. The flat-top connector shells are made for liquid-cooled switches and DGX H100 systems.

The cable uses 30AWG wire in 2x8 pairs with a 7.2 mm diameter and a 72 mm minimum bend radius, which keeps short in-rack runs easy to route. It draws 0.1 W max from a single 3.3V supply and needs no external power. Being passive, it requires no licence or subscription. Firmware supports both InfiniBand and Ethernet, selected automatically by the protocol of the attached switch.

It connects NVIDIA Quantum-2 InfiniBand and Spectrum-4 Ethernet twin-port OSFP switches and DGX H100 systems, and complies with the OSFP MSA and SFF-8665. Air-cooled finned-top switch ports normally use the finned-top MCP4Y10-N00A, part number 980-9IA0K-00N00A.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Low-latency, near-zero-power high-speed link
- Firmware supports both InfiniBand and Ethernet, auto-enabled by the attached switch protocol
- Hot pluggable
- Single 3.3V supply
- Flat-top ends suited to liquid-cooled switches and DGX H100 systems
- Thin 30AWG gauge for easy bending at short lengths
- LSZH jacket with lead-free, halogen-free PCB

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ordering part number: 980-9IA0L-00N00A
- Legacy part number: MCP4Y10-N00A-FLT
- Data rate: 2x400Gb/s (twin-port), up to 800Gb/s total
- Modulation: 8 channels of 100G-PAM4
- Cable type: Passive copper (DAC)
- Connectors: OSFP to OSFP, flat-top shells
- Length: 0.5 m
- Wire gauge: 30AWG, 2x8 pairs
- Cable diameter: 7.2 mm
- Minimum bend radius: 72 mm
- Supply voltage: 3.135 / 3.3 / 3.465 V (min/typ/max)
- Power consumption: 0.1 W max
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Storage temperature: -40 to 85 C
- Characteristic impedance: 90 / 100 / 110 ohm
- Propagation delay: 4.5 ns/m max
- Management interface: SFF-8636 compliant I2C, CMIS Rev 5.0 memory map
- Form factor: OSFP (OSFP MSA), SFF-8665 compliant
- Jacket: LSZH, RoHS compliant

FAQs

Q: Does this cable need a licence or subscription?
A: No. It is a passive copper cable and requires no licence or subscription.

Q: How is this cable powered?
A: It is passive and draws 0.1 W max from a single 3.3V supply via the host OSFP port. No external power is needed.

Q: Which systems does it work with?
A: It suits NVIDIA Quantum-2 InfiniBand and Spectrum-4 Ethernet twin-port OSFP switches, and DGX H100 systems. It complies with the OSFP MSA and SFF-8665.

Q: What is the difference between flat-top and finned-top versions?
A: The flat-top connector shells on this cable suit liquid-cooled switches and DGX H100 systems. Air-cooled finned-top switch ports normally use the finned-top MCP4Y10-N00A, part number 980-9IA0K-00N00A.

Q: Can it be used for both InfiniBand and Ethernet?
A: Yes. The firmware supports both InfiniBand NDR and Ethernet, and the protocol is enabled automatically by the attached switch.
