NVIDIA

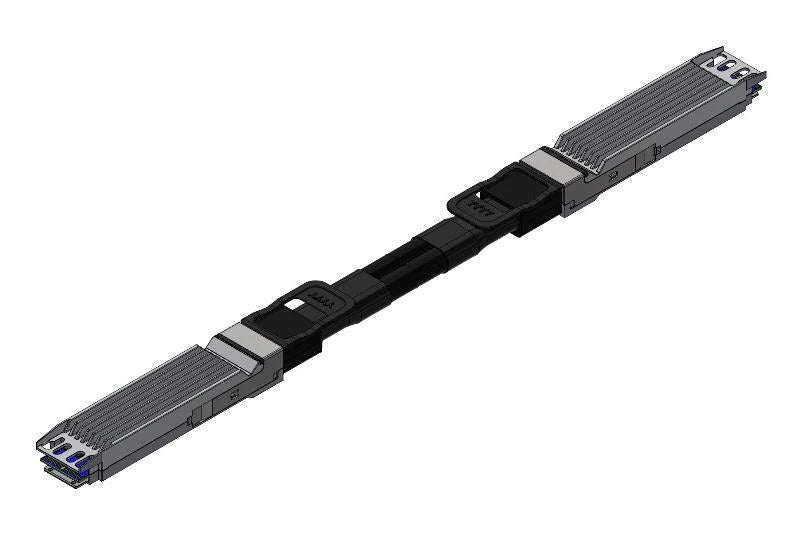

NVIDIA 980-9IA0J-00N002 | 400Gb/s OSFP AOC | InfiniBand NDR | 850nm MMF | OSFP–OSFP | 2m | Flat-top heatsink

980-9IA0J-00N002

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-performance 400G active optical cable for NDR InfiniBand links. OSFP-to-OSFP design with 850 nm multimode optics delivers low latency and stable throughput for HPC, AI, and fabric backbones. Flat-top heatsink variant fits tight-clearance OSFP cages. Ideal for short intra-rack and adjacent-rack connections and validated for NVIDIA Quantum-2 switches and ConnectX-7 adapters with OSFP ports.

Features

400G aggregate bandwidth for NDR InfiniBand fabrics
- OSFP-to-OSFP integrated AOC simplifies deployment—no separate transceivers or patch cords
- 850 nm multimode optics provide low latency and EMI immunity
- Flat-top heatsink option for dense chassis and limited vertical clearance
- Plug-and-play with NVIDIA OSFP NDR platforms
- Power-efficient design with digital diagnostics for easy monitoring

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Cable type: Active Optical Cable (AOC), OSFP to OSFP
- Aggregate data rate: 400 Gb/s (8×50G PAM4)
- Protocol: InfiniBand NDR; may operate in 400G OSFP Ethernet ports where AOC support and coding match are provided
- Wavelength: 850 nm (MMF VCSEL)
- Fiber medium: Integrated multimode fiber (AOC)
- Length: 2 m
- Connector: OSFP, MSA-compliant
- Heatsink style: Flat-top (FLT)
- Color: Black
- Operating temperature: 0 to 70°C (commercial)
- Diagnostics monitoring: Digital diagnostics (DDM/DOM) supported

FAQs

Q: Is this cable compatible with 400G NDR InfiniBand ports?
A: Yes. It is designed for NDR (400G) InfiniBand OSFP ports such as those on NVIDIA Quantum-2 switches and ConnectX-7 adapters.

Q: What is the difference between FLT and non-FLT versions?
A: FLT indicates a flat-top heatsink for tight-clearance OSFP cages; non-FLT uses a finned heatsink for maximum thermal headroom.

Q: Can this OSFP AOC be used in QSFP56/QSFP28 cages?
A: No. OSFP and QSFP form factors are not physically compatible.

Q: Does this support Ethernet as well as InfiniBand?
A: Functionally it aligns with 400G OSFP AOC ports, but operation depends on platform coding and AOC support. Verify with the switch/NIC vendor.

Q: Is this a breakout cable?
A: No. It is a straight OSFP-to-OSFP 400G AOC. For breakouts, use specifically coded breakout assemblies.
