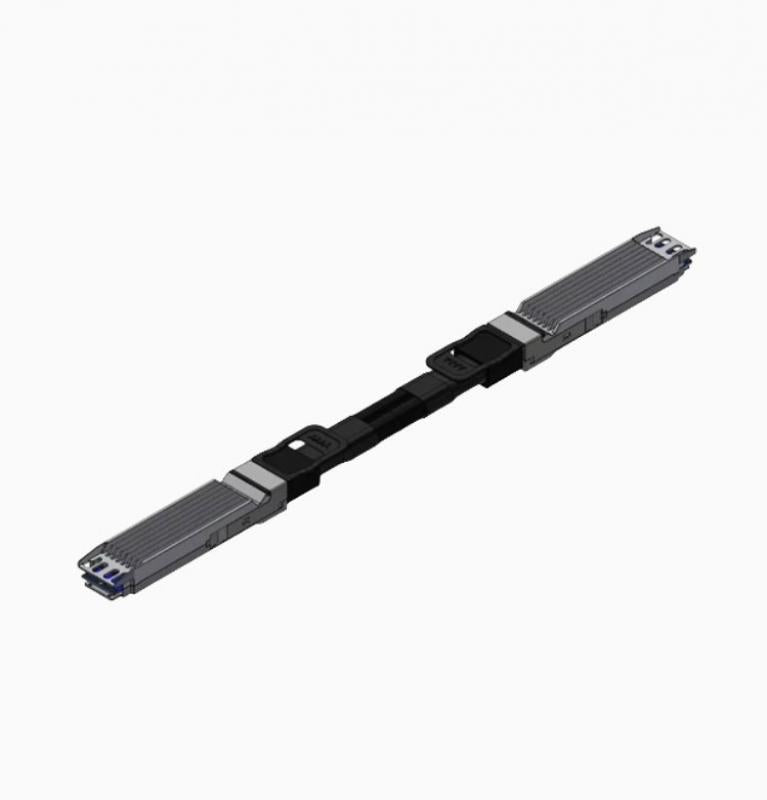

NVIDIA 980-9IA0I-00N002 | LinkX NDR 800G OSFP DAC Cable, 2m, Finned Top
SKU:980-9IA0I-00N002
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This NVIDIA LinkX passive copper direct attach cable carries 2x400Gb/s, up to 800Gb/s, over a 2m run with twin-port OSFP connectors at both ends. It is built for NDR InfiniBand fabrics and links OSFP-based Quantum-2 InfiniBand or Spectrum-4 Ethernet switches to each other, or to DGX H100 systems, in AI and HPC clusters.
The cable uses 8 channels of 100G-PAM4 modulation over thin 30AWG wire and has finned-top OSFP connectors on both ends (the non-FLT variant). It is passive, with near-zero power consumption from a single 3.3V host supply, and is rated for an operating case temperature of 0 to 70 C. It is hot pluggable, complies with SFF-8665 and the OSFP MSA, and is managed through an SFF-8636 compliant I2C interface. The jacket is LSZH and the cable is RoHS compliant.
The finned-top design suits air-cooled switch ports at both ends. Liquid-cooled switches and DGX H100 flat-top ports use the flat-top 980-9IA0J-00N002 variant instead.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Low-latency, near-zero-power high-speed link
- Firmware supports both InfiniBand and Ethernet, enabled automatically according to the switch protocol
- EEPROM holds product configuration information for the host to read
- Each cable length is tuned to reduce internal signal noise and back reflections
- Thin 30AWG wire for easy bending
- Hot pluggable for installation without powering down the switch
- Production-tested for out-of-the-box installation, performance and durability
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Data rate: 2x400Gb/s (up to 800Gb/s)
- Modulation: 8-channel 100G-PAM4
- Connector type: Twin-port OSFP to twin-port OSFP, finned top on both ends
- Cable type: Passive copper DAC
- Length: 2 m
- Wire gauge: 30AWG
- Operating case temperature: 0 to 70 C
- Supply voltage: 3.3 V single supply
- Management interface: SFF-8636 compliant I2C
- Standards compliance: SFF-8665, OSFP MSA
- Jacket: LSZH (Low Smoke Zero Halogen)
- PCB: Lead Free, Halogen Free
- Environmental: RoHS compliant
- Hot pluggable: Yes
- Protocol support: InfiniBand and Ethernet
- Legacy part number: MCP4Y10-N002
FAQs
Q: What is the difference between this cable and the 980-9IA0J-00N002?
A: This SKU has finned-top OSFP connectors for air-cooled switch ports. The 980-9IA0J-00N002 is the flat-top (FLT) variant for liquid-cooled switches and DGX H100 flat-top ports.
Q: Does this cable need external power?
A: No. It is a passive copper cable with near-zero power consumption, drawing a single 3.3V supply from the host port.
Q: Can it be used for both InfiniBand and Ethernet?
A: Yes. The firmware supports both protocols and enables the correct one automatically based on the attached switch.
Q: What equipment is it designed to connect?
A: It is designed for OSFP-based NVIDIA Quantum-2 InfiniBand and Spectrum-4 Ethernet switches, and for connections to DGX H100 systems.
Q: What is the maximum reach of this cable?
A: This SKU is 2 m long. It is intended for short switch-to-switch and switch-to-server links within the same rack or adjacent racks.
