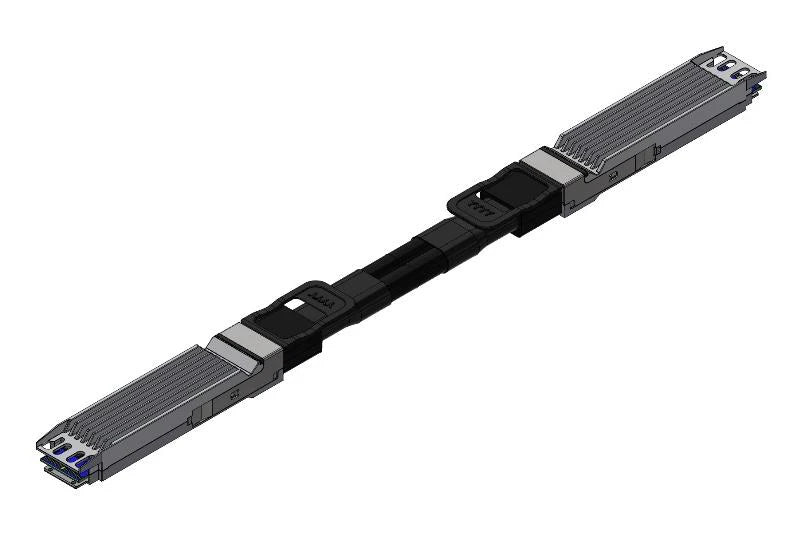

NVIDIA 980-9IA0G-00N001 | MCP4Y10 Twin-Port 2x400G OSFP DAC, 1m, Flat Top, 30AWG

SKU:980-9IA0G-00N001

$899.00 USD
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This passive copper direct attach cable carries twin-port 2x400Gb/s (up to 800Gb/s) over OSFP connectors at both ends, with a 1 m length. It suits AI and HPC cluster interconnects where short-reach InfiniBand NDR or 400GbE links are needed between Quantum-2 or Spectrum-4 switches, or from switches to DGX H100 systems.

Each port uses 8 channels of 100G-PAM4 modulation over 30AWG, 2x8 pair cabling in an LSZH jacket. Both ends have flat-top OSFP connectors, which are intended for liquid-cooled switches and DGX H100 systems. As a passive cable it needs no licence or subscription and draws 0.1 W maximum from the host port at 3.3V. The cable is hot pluggable and operates over a case temperature range of 0 to 70 C. Firmware supports both InfiniBand and Ethernet, with the correct mode enabled automatically from the attached switch.

The flat-top variant is distinct from the finned-top sibling cables, so confirm the connector style your switch or system requires.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Passive design delivers a low-cost, low-latency, near-zero-power high-speed link
- Firmware supports both InfiniBand and Ethernet and selects the mode from the attached switch
- Cable length is tuned to reduce internal signal noise and back reflections
- Flat-top ends suit liquid-cooled switches and DGX H100 systems
- Thin 30AWG cable for easier bending at short lengths
- Hot pluggable with a single 3.3V supply
- Production-tested for out-of-the-box installation and durability

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Data rate: 2x400Gb/s twin port (up to 800Gb/s)
- Modulation: 8 channels of 100G-PAM4 per port
- Form factor: OSFP (OSFP MSA Rev 1.12), SFF-8665 compliant
- Connector style: Flat top on both ends
- Cable length: 1.0 m (tolerance +/-25 mm)
- Cable gauge: 30AWG, 2x8 pairs
- Cable outer diameter: 7.2 +/-0.03 mm
- Minimum bend radius: 72 mm
- Management interface: SFF-8636 compliant I2C, CMIS Rev 5.0 memory map (flat memory)
- Media type: Passive copper (CMIS 03h)
- Supply voltage: 3.135 / 3.3 / 3.465 V (min/typ/max)
- Power consumption: 0.1 W max (Power Class 1)
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Storage temperature: -40 to 85 C
- Characteristic impedance: 90 / 100 / 110 ohm (min/typ/max)
- Propagation delay: 4.5 ns/m max
- Jacket: LSZH, RoHS compliant
- Regulatory: CB, TUV, CE, EAC, UKCA, FCC Class A, ICES, RCM, VCCI

FAQs

Q: Does this cable need a licence or subscription?
A: No. It is a passive copper cable and requires no licence or subscription.

Q: How is this cable powered?
A: It is powered from the host port at 3.3V and draws 0.1 W maximum (Power Class 1).

Q: What is it designed to connect?
A: It is intended for 2x400Gb/s Quantum-2 InfiniBand and Spectrum-4 Ethernet switch-to-switch links, and for switch-to-DGX H100 connections.

Q: How does it differ from the finned-top versions?
A: This SKU has flat-top connectors on both ends, suited to liquid-cooled switches and DGX H100 systems. The finned-top siblings are 980-9IA0F-00N001 and 980-9IA0H-00N001 (flat to finned).

Q: Will it switch between InfiniBand and Ethernet?
A: Yes. The firmware supports both and enables the right mode automatically based on the attached switch.
