NVIDIA 980-9I99F-00H002 | LinkX 200G to 2x100G QSFP56 Breakout DAC, 2m, 26AWG
SKU:980-9I99F-00H002
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

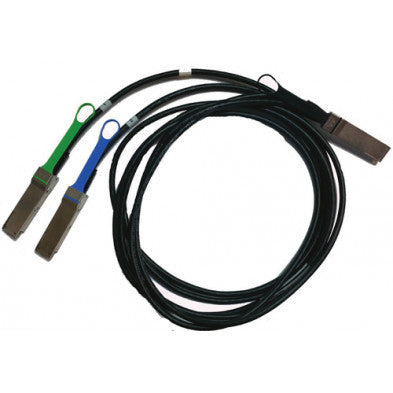

This NVIDIA LinkX passive copper breakout cable splits one 200Gb/s QSFP56 port into two 100Gb/s QSFP56 ports over a 2m run. It is the HDR InfiniBand and 200GbE variant (OPN MCP7H50-H002R26) and suits short-reach, rack-level connections in HPC, AI, cloud and data-centre networks, where a 200G switch port needs to feed two 100G servers or adapters.
The cable is a 1:2 splitter built on 26 AWG copper with no active electronics. The 200G end carries 4 x 50Gb/s PAM4 lanes, and each 100G leg carries 2 x 50Gb/s PAM4 lanes. Because the legs use 50G PAM4 signalling, they are not compatible with 100GbE ports based on 4x25G NRZ. Being passive, the cable has no external power supply.
NVIDIA lists this cable as validated and supported for ConnectX-6, ConnectX-6 Dx and ConnectX-7 adapters and BlueField-3 DPU firmware, as well as Quantum firmware release notes. It is intended for HDR / 200GbE QSFP56 ports.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Splits one 200Gb/s port into two 100Gb/s ports
- Passive copper design with no power requirement in the cable itself
- Validated and supported for ConnectX-6, ConnectX-6 Dx and ConnectX-7 adapters
- Supported on BlueField-3 DPU firmware
- Suited to HDR InfiniBand and 200GbE QSFP56 ports
- Part of the NVIDIA LinkX cable and transceiver family for Ethernet and InfiniBand
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- NVIDIA part number: 980-9I99F-00H002
- OPN: MCP7H50-H002R26
- Cable type: Passive copper (DAC) breakout
- Data rate: 200Gb/s to 2 x 100Gb/s
- Single-end connector: QSFP56
- Split-end connectors: 2 x QSFP56
- Cable length: 2m
- Wire gauge: 26 AWG
- Signalling: 4 x 50Gb/s PAM4 (200G end), 2 x 50Gb/s PAM4 per 100G leg
- Protocol class: HDR InfiniBand / 200GbE
- Power: Passive, no external power required
FAQs
Q: What does this breakout cable connect?
A: One 200G QSFP56 port on the switch end connects to two 100G QSFP56 ports, such as two servers or adapters, over a 2m passive copper run.
Q: Does it need external power?
A: No. It is a passive copper cable with no active electronics and no external power supply.
Q: Which adapters and firmware is it validated for?
A: It is listed by NVIDIA as validated and supported for ConnectX-6, ConnectX-6 Dx and ConnectX-7 adapters, BlueField-3 DPU firmware and Quantum firmware release notes.
Q: Will the 100G legs work with 100GbE ports based on 4x25G NRZ?
A: No. Each 100G leg uses 2 x 50Gb/s PAM4 signalling, which is not compatible with 100GbE ports based on 4x25G NRZ.
Q: What is the reach of this cable?
A: The cable is 2m long, intended for short rack-level connections in the same or adjacent racks.
