NVIDIA 980-9I96P-00H030 | LinkX 200G to 2x100G Splitter AOC, 30m, IB HDR/200GbE
SKU:980-9I96P-00H030
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

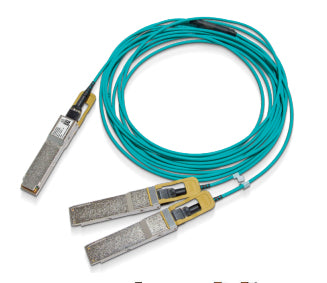

The NVIDIA LinkX MFS1S50-H0xxV is a VCSEL-based multimode active optical splitter cable with a single 200Gb/s QSFP56 connector on one end and two 100Gb/s QSFP56 connectors on the other. This 30m version is built for 200Gb/s InfiniBand HDR and 200GbE data centre fabrics, where it links one 200G switch port to two 100G server or HDR100 adapter ports.
The cable carries 4 x 50Gb/s PAM4 lanes and supports IBTA InfiniBand HDR splitting to 2x HDR100, as well as 200GbE to 2x100GbE. It runs from a single 3.3V supply drawn from the host port, with typical power consumption of 4.5W at the 200G end and 3.0W at each 100G end. Operating case temperature is 0 to 70 C and the minimum bend radius is 30 mm.
The QSFP56 ends are SFF-8665 compliant, hot pluggable and managed over SFF-8636 I2C. Each end has an EEPROM holding product and status monitoring information that the host can read. The 200G end suits 200Gb/s InfiniBand HDR or 200GbE QSFP56 ports, and the 100G ends connect to HDR100 or 100GbE QSFP56 ports.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Supports IBTA InfiniBand HDR and 200GbE
- Splits one 200Gb/s HDR port into two 100Gb/s HDR100 links
- Splits one 200GbE port into two 100GbE links
- Programmable Rx output amplitude and pre-emphasis
- Single 3.3V power supply
- Hot pluggable and RoHS compliant
- EEPROM in each QSFP56 end with product and status monitoring information readable by the host
- Production-tested for out-of-the-box installation, performance and durability
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: 980-9I96P-00H030 (legacy MFS1S50-H030V)
- Connectors: 1x QSFP56 (200Gb/s) to 2x QSFP56 (100Gb/s)
- Protocols: InfiniBand HDR to 2x HDR100, 200GbE to 2x100GbE
- Modulation: 4x 50Gb/s PAM4
- Media: multimode fibre (VCSEL)
- Length: 30m
- Supply voltage: 3.135 min / 3.3 typ / 3.465 max V
- Power consumption, 200Gb/s end: 4.5 W typ, 5.0 W max
- Power consumption, 100Gb/s end: 3.0 W typ, 3.5 W max
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Cable diameter: 3 +/-0.2 mm
- Minimum bend radius: 30 mm
- Cable jacket: LSZH
- Host interface: SFF-8665 (QSFP56), pin assignment SFF-8679, management SFF-8636
- Compliance: RoHS
FAQs
Q: Does this cable need a licence?
A: No. It is a passive-managed optical cable with no licence or subscription requirement.
Q: What ports does it connect to?
A: The single 200G end plugs into a 200Gb/s InfiniBand HDR or 200GbE QSFP56 port. The two 100G ends connect to HDR100 or 100GbE QSFP56 ports.
Q: How much power does it draw?
A: It draws from a single 3.3V supply provided by the host port. Typical consumption is 4.5W at the 200G end and 3.0W at each 100G end.
Q: Is this the InfiniBand or Ethernet version?
A: The 30m 980-9I96P-00H030 is the HDR InfiniBand variant (legacy MFS1S50-H030V), and it also supports 200GbE to 2x100GbE.
Q: What fibre type does it use?
A: It uses multimode fibre driven by VCSELs, with a 30m cable length.
