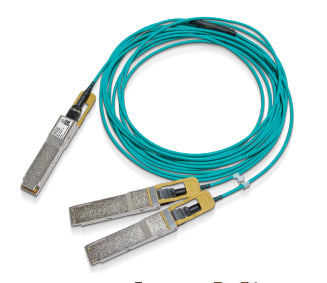

NVIDIA 980-9I96L-00H020 | LinkX 200G to 2x100G QSFP56 Splitter AOC, MMF, 20m
SKU:980-9I96L-00H020
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The LinkX MFS1S50-H020V is a VCSEL-based multimode active optical splitter cable with a single 200Gb/s QSFP56 connector on one end and two 100Gb/s QSFP56 connectors on the other. It is built for data-centre, HPC and AI interconnect where one 200G InfiniBand HDR or 200GbE switch port needs to fan out to two 100G server or adapter ports over short-reach multimode fibre.
This SKU is the 20m length, splitting 200Gb/s HDR into 2x100Gb/s HDR100, or 200GbE into 2x100GbE. It uses 4x 50Gb/s PAM4 modulation over 850nm multimode fibre and is SFF-8665 compliant, with SFF-8636 I2C management. Typical power consumption is 4.5W at the 200G end and 3.0W at each 100G end, drawn from a single 3.3V host supply. Each end carries an EEPROM readable by the host, plus per-lane digital diagnostic monitoring with warning and alarm thresholds.
It connects a 200Gb/s QSFP56 port to two 100Gb/s QSFP56 ports, for example a switch and two servers or adapters. No licence or subscription is required.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Supports InfiniBand HDR and 200GbE
- Splits 200Gb/s HDR into 2x100Gb/s HDR100, or 200GbE into 2x100GbE
- Programmable Tx input equalisation, Rx output amplitude and Rx output pre-emphasis
- Tx/Rx CDR control
- Digital Diagnostic Monitoring with warning and alarm thresholds
- EEPROM on each QSFP56 end with product and status information readable by the host
- Hot pluggable
- Single 3.3V power supply drawn from the host port
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- NVIDIA OPN: 980-9I96L-00H020
- Legacy OPN: MFS1S50-H020V
- Cable type: Active optical splitter cable (AOC)
- Length: 20m
- Connectors: 1x QSFP56 to 2x QSFP56
- Data rate: 200Gb/s HDR to 2x100Gb/s HDR100; 200GbE to 2x100GbE
- Modulation: 4x 50Gb/s PAM4
- Fibre type: Multimode, 850nm VCSEL
- Form factor: QSFP56, SFF-8665 compliant, pin assignment SFF-8679 compliant
- Management interface: SFF-8636 compliant I2C
- Supply voltage (Vcc): 3.135 min / 3.3 typ / 3.465 max V
- Power consumption, 200Gb/s end: 4.5 W typ / 5.0 W max
- Power consumption, 100Gb/s end: 3.0 W typ / 3.5 W max
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Cable diameter: 3 +/-0.2 mm
- Minimum bend radius: 30 mm
- Digital diagnostics: per-lane Rx/Tx optical power, Tx bias current, supply voltage and case temperature
FAQs
Q: Does this cable need a licence or subscription?
A: No. It is a passive-managed active optical cable and needs no licence or subscription.
Q: How much power does it draw?
A: It draws from a single 3.3V host supply. Typical consumption is 4.5W (5.0W max) at the 200G end and 3.0W (3.5W max) at each 100G end.
Q: What does it connect?
A: It links one 200Gb/s QSFP56 port, either InfiniBand HDR or 200GbE, to two 100Gb/s QSFP56 ports running HDR100 or 100GbE, such as a switch and two servers or adapters.
Q: How does it differ from other cables in the MFS1S50-H0xxV family?
A: The family shares the same 200G to 2x100G QSFP56 splitter design and differs by length. This SKU is the 20m version.
Q: What is the legacy part number?
A: The legacy OPN for this cable is MFS1S50-H020V. The current NVIDIA OPN is 980-9I96L-00H020.
