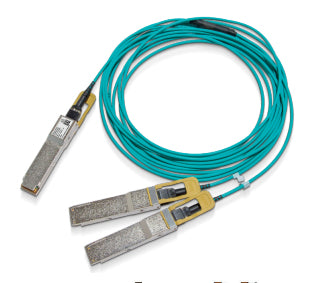

NVIDIA 980-9I96H-00H015 | LinkX 200G to 2x100G QSFP56 Splitter AOC, 15m
SKU:980-9I96H-00H015
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This NVIDIA LinkX active optical splitter cable connects a single 200Gb/s QSFP56 port to two 100Gb/s QSFP56 ports over 850nm multimode fibre. It is built for InfiniBand HDR to HDR100 links and also supports 200GbE to 2x100GbE. This is the 15m version, suited to short-reach connections within or between nearby racks in data centres, HPC and AI clusters. A typical deployment splits one 200G HDR switch port into two 100G HDR100 server or adapter links.
The cable uses a VCSEL-based, low-latency active optical design with 4x 50Gb/s PAM4 modulation. The QSFP56 ends are SFF-8665 compliant and hot pluggable, and the cable is managed over an SFF-8636 compliant I2C interface. It runs from a single 3.3V supply and draws 4.5W typical (5.0W max) at the 200Gb/s end and 3.0W typical (3.5W max) at each 100Gb/s end, powered from the host port.
It connects 200Gb/s QSFP56 ports on HDR InfiniBand or 200GbE switches and adapters to two 100Gb/s QSFP56 ports on HDR100 or 100GbE adapters and switches. InfiniBand HDR cables can also be used in NVIDIA-only Ethernet systems, but not the reverse.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Supports IBTA InfiniBand HDR and 200GbE
- 200Gb/s HDR to 2x100Gb/s HDR100 data rate
- Low latency active optical design
- Programmable Rx output amplitude and pre-emphasis
- Programmable Tx input equalization
- Single 3.3V power supply
- Hot pluggable QSFP56 connectors
- SFF-8636 compliant I2C management interface
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- NVIDIA OPN: 980-9I96H-00H015
- Legacy OPN: MFS1S50-H015V
- Cable type: Active optical splitter cable (AOC)
- Length: 15 m
- Data rate: 200Gb/s HDR to 2x100Gb/s HDR100; 200GbE to 2x100GbE
- Modulation: 4x 50Gb/s PAM4
- Form factor: QSFP56 (SFF-8665 compliant) to 2x QSFP56
- Fibre type: 850nm multimode (MMF), VCSEL-based
- Management interface: SFF-8636 compliant I2C
- Supply voltage (Vcc): 3.135 min, 3.3 typ, 3.465 max V
- Power consumption 200Gb/s end: 4.5 W typ, 5.0 W max
- Power consumption 100Gb/s end: 3.0 W typ, 3.5 W max
- Supply noise tolerance (10Hz to 10MHz): 66 mVpp min
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Cable diameter: 3 +/- 0.2 mm
- Minimum bend radius: 30 mm
- Pin assignment: SFF-8679 compliant
FAQs
Q: Does this cable need a licence or separate power?
A: No licence is required. The cable is powered from the host port on a single 3.3V supply, drawing 4.5W typical at the 200Gb/s end and 3.0W typical at each 100Gb/s end.
Q: What does it connect to?
A: The single 200Gb/s QSFP56 end connects to an HDR InfiniBand or 200GbE switch or adapter port. The two 100Gb/s QSFP56 ends connect to HDR100 or 100GbE adapters or switch ports.
Q: Can it be used in Ethernet systems as well as InfiniBand?
A: Yes. It supports 200GbE to 2x100GbE as well as InfiniBand HDR to HDR100. InfiniBand HDR cables can be used in NVIDIA-only Ethernet systems, but the reverse does not apply.
Q: What other lengths are available in this range?
A: The MFS1S50-H0xxV family is also offered in 3m, 5m, 10m, 20m and 30m lengths. This SKU is the 15m version.
Q: What is the minimum bend radius?
A: The minimum bend radius is 30 mm, and the cable diameter is 3 +/- 0.2 mm, which suits tidy routing within and between racks.
