NVIDIA 980-9I96D-00H010 | LinkX 200G to 2x100G QSFP56 AOC Splitter, 10m, MMF
SKU:980-9I96D-00H010
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

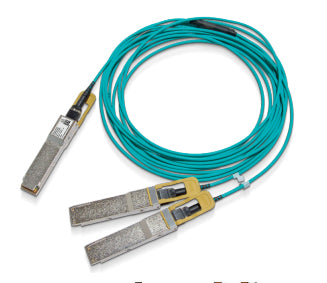

This NVIDIA LinkX active optical splitter cable carries a 200Gb/s QSFP56 connector at one end and breaks out to two 100Gb/s QSFP56 connectors at the other. It suits InfiniBand HDR to HDR100 links, such as connecting a Quantum HDR switch port to two HDR100 servers or adapters in HPC and AI clusters over in-rack or adjacent-rack runs of up to 10m.
The cable is 10 m long and uses 850nm VCSEL transmitters over multimode fibre with PIN receivers. It uses PAM4 modulation with a maximum data rate of 212.5 Gb/s, and the host must support FEC. It draws power from the 3.3V host port, with a maximum of under 5W at the 200G end and under 3W at each 100G end. Digital diagnostics monitoring is supported, and the operating case temperature range is 0 to 70 C.
It is intended for QSFP56 ports on NVIDIA Quantum HDR switches and ConnectX-6 or BlueField-2 HDR100 adapters. The part number 980-9I96D-00H010 corresponds to model MFS1S50-H010V.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Splits one 200Gb/s HDR port into two 100Gb/s HDR100 links
- VCSEL-based active optical cable over multimode fibre
- Digital diagnostics monitoring (DDM) supported
- Hot-pluggable QSFP56 form factor
- Suits NVIDIA Quantum HDR InfiniBand switch to ConnectX-6 or HDR100 adapter links
- PAM4 signalling with a maximum data rate of 212.5 Gb/s
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- NVIDIA part number: 980-9I96D-00H010 (model MFS1S50-H010V)
- Form factor: QSFP56 to 2x QSFP56
- Cable type: active optical cable (splitter), MMF
- Cable length: 10 m (32.8 ft)
- Max data rate: 212.5 Gb/s
- Wavelength: 850 nm
- Transmitter type: 850nm VCSEL
- Receiver type: PIN
- Modulation format: PAM4
- Host required: FEC
- Jacket material: LSZH
- Minimum bend radius: 30 mm
- DDM support: Yes
- Voltage supply: 3.3 V
- Maximum power: < 5W (200G QSFP56 end), < 3W (100G QSFP56 end)
- Operating case temperature: 0 to 70 C (32 to 158 F)
- Protocols: QSFP56 MSA, CMIS, IEEE 802.3cd 200GBASE-SR4
- Application: 200GBASE-SR4 to 2x 100GBASE-SR2 Ethernet, 200G InfiniBand HDR
FAQs
Q: What is this splitter cable used for?
A: It connects one 200Gb/s HDR QSFP56 port, such as a Quantum HDR switch port, to two 100Gb/s HDR100 QSFP56 ports on servers or adapters.
Q: Does the host need to support FEC?
A: Yes. The cable uses PAM4 modulation, so the host ports must support FEC.
Q: How much power does it draw?
A: It runs from the 3.3V host supply. Maximum power is under 5W at the 200G end and under 3W at each 100G end.
Q: Which devices is it intended for?
A: It is intended for QSFP56 ports on NVIDIA Quantum HDR switches and ConnectX-6 or BlueField-2 HDR100 adapters in InfiniBand environments.
Q: What distinguishes this SKU from other LinkX splitter cables?
A: This variant is the 10m model MFS1S50-H010V, a 200G to 2x100G splitter. Other lengths and variants use different part numbers.
