NVIDIA 980-9I969-00H005 | LinkX 200G to 2x100G QSFP56 AOC Splitter Cable, 5m, 850nm MMF
SKU:980-9I969-00H005
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

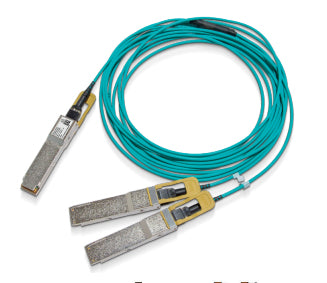

This NVIDIA LinkX InfiniBand HDR active optical splitter cable breaks one 200G QSFP56 port out into two independent 100G QSFP56 links. It is built for HPC and AI clusters where a single 200G HDR switch port needs to connect to two HDR100 adapters or ports, and it can also be used for 200GbE breakout where supported.
The cable is an active optical design with integrated optics, so no separate transceivers are needed. It runs over multimode fibre at 850nm with a 5m length, which keeps the cable light and manageable inside the rack. The 5m, 200G to 2x100G, 850nm MMF AOC variant is the V version, which is 200GE-capable.
It is a validated cable for NVIDIA ConnectX-6 Dx adapters per the NVIDIA validated cables list. Use the 200G end on an HDR-capable switch or adapter port and the two 100G ends on HDR100 ports.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Splits one 200G HDR port into two 100G HDR100 links
- Integrated active optical design, no separate transceivers required
- Multimode fibre with 850nm optics for 5m reach
- Light, flexible cable suited to dense rack cabling
- Validated for NVIDIA ConnectX-6 Dx adapters
- Supports InfiniBand HDR to HDR100 breakout in HPC and AI clusters
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Cable type: Active Optical Cable (AOC), splitter/breakout
- Connectors: QSFP56 to 2x QSFP56
- Data rate: 200Gb/s to 2x100Gb/s
- Protocol: InfiniBand HDR to 2x HDR100, 200GE-capable
- Fibre type: Multimode
- Wavelength: 850nm
- Length: 5m
- Manufacturer part number: MFS1S50-H005V
FAQs
Q: What does this cable connect?
A: It connects one 200G HDR QSFP56 port to two 100G HDR100 QSFP56 ports, splitting the 200G link into two independent 100G links.
Q: Do I need separate transceivers?
A: No. The optics are integrated into the active optical cable, so it plugs directly into QSFP56 ports.
Q: Which adapters is it validated for?
A: It is listed on the NVIDIA validated cables list for ConnectX-6 Dx adapters.
Q: Can it be used for Ethernet as well as InfiniBand?
A: This V variant is 200GE-capable, so it can be used for 200GbE breakout where the connected equipment supports it.
Q: What distance does it cover?
A: This cable is 5m long and uses multimode fibre at 850nm.
