NVIDIA 980-9I93N-00H001 | LinkX 400G OSFP to 4x100G QSFP56 DAC, 1m, Fin to Flat
SKU:980-9I93N-00H001
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This NVIDIA LinkX passive copper splitter cable breaks out a single 400Gb/s twin-port OSFP (2x200G) connection into four independent 100Gb/s QSFP56 links. It suits InfiniBand HDR and HDR100 fabrics as well as Ethernet links, and is typically used to connect a 400G OSFP port on a Quantum-2 switch or ConnectX adapter to four 100Gb/s endpoints in HPC, AI and data centre environments. It also helps when migrating from NDR to HDR.

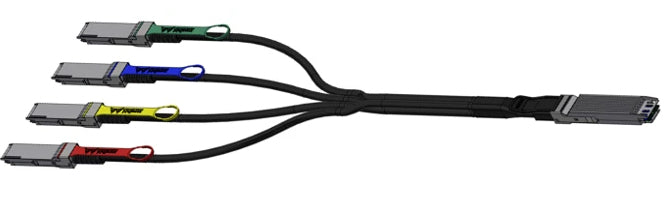

The cable is 1m long and uses a finned-top OSFP connector on the host end with four flat-top QSFP56 connectors on the far end. As a passive DAC it has no active electronics, drawing 0.1 W maximum from the host port at 3.3 V, and is rated Power Class 1. Operating case temperature is 0 to 70 C with 5 to 85 percent relative humidity.
The memory map supports application codes including 400GBASE-CR4, 200GBASE-CR2 and 100GBASE-CR1. It is validated for use with NVIDIA ConnectX-6 Dx, ConnectX-7 and ConnectX-8 adapters and Quantum-2 InfiniBand switches. The NVIDIA OPN is MCP7Y70-H001, matching part number 980-9I93N-00H001.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Passive DAC with no active electronics, drawing only 0.1 W maximum
- Splits one 400Gb/s twin-port OSFP into four independent 100Gb/s QSFP56 links
- Supports InfiniBand HDR and HDR100 as well as Ethernet networking
- Validated for ConnectX-6 Dx, ConnectX-7, ConnectX-8 and Quantum-2 cable compatibility lists
- Finned-top OSFP end suits air-cooled switch cages, with flat QSFP56 ends on the far side
- Suited to switch-to-NIC breakout and NDR-to-HDR migration in HPC and AI fabrics
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Connector type: OSFP twin-port (2x200G), finned top, to 4x QSFP56, flat top
- Data rate: 400Gb/s to 4x 100Gb/s
- Cable type: Passive copper DAC splitter
- Cable length: 1m
- Protocols: InfiniBand HDR / HDR100, 100GbE and 400GbE (4x100G)
- Power consumption: 0.1 W max
- Power class: Class 1 (Power Class 00h)
- Supply voltage: 3.135 V min, 3.3 V typical, 3.465 V max
- Absolute maximum supply voltage: -0.3 to 3.6 V
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 percent
- Supported application codes: IB SDR, 400GBASE-CR4, 200GBASE-CR2, 100GBASE-CR1
- NVIDIA OPN: MCP7Y70-H001
FAQs
Q: What does this cable connect?
A: It connects one 400G twin-port OSFP port to four 100Gb/s QSFP56 ports, giving four independent 100Gb/s links from a single OSFP cage.
Q: Does it need external power?
A: No. It is a passive cable that draws up to 0.1 W from the host port at 3.3 V and is Power Class 1.
Q: Which NVIDIA devices is it validated for?
A: It is validated for ConnectX-6 Dx, ConnectX-7 and ConnectX-8 adapters and Quantum-2 InfiniBand switches. The OSFP end goes on the switch or adapter side and the QSFP56 ends on the four far-end ports.
Q: How does it differ from sibling SKUs?
A: This SKU is 1m with a fin-to-flat OSFP to 4x QSFP56 configuration. The MCP7Y70-H002 is the 2m version and the MCP7Y70-H01A is the 1.5m version.
Q: Which protocols does it support?
A: It supports InfiniBand HDR and HDR100 as well as 100GbE and 400GbE (4x100G) links.
