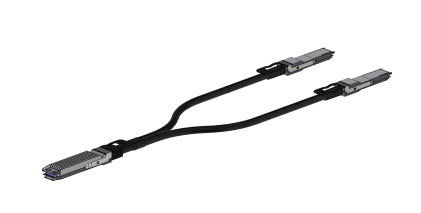

NVIDIA 980-9I929-00N002 | LinkX 800G OSFP to 2x 400G QSFP112 DAC Cable, 2m
SKU:980-9I929-00N002
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The NVIDIA LinkX 800Gb/s twin-port OSFP to 2x 400Gb/s QSFP112 passive copper splitter cable links a Quantum-2 InfiniBand or Spectrum-4 Ethernet switch port to two ConnectX-7 adapters or BlueField-3 DPUs. It suits short-reach connections within a rack or between adjacent racks, up to 3m in the MCP7Y10 family, with this SKU being the 2m length.
The switch end is a finned-top twin-port OSFP carrying 8 lanes of 100G-PAM4, and it splits into two flat-top QSFP112 ends with 4 lanes each at 400Gb/s. The cable is a passive copper DAC with no electronics in the data path, and the OSFP end and each QSFP112 end draw 0.1 W. The 2m length uses 26AWG cable with an LSZH jacket, and the operating case temperature range is 0 to 70 C.
It works with NVIDIA Quantum-2 (InfiniBand NDR) and Spectrum-4 (Ethernet) switches with OSFP cages, and with QSFP112-based ConnectX-7 PCIe adapters and BlueField-3 DPUs. The firmware supports both InfiniBand and Ethernet and enables the matching protocol automatically based on the attached host. No licence or subscription is required.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Passive copper design with no electronics in the data path for near-zero power and low latency
- Firmware supports both InfiniBand and Ethernet and auto-enables based on the attached switch
- Finned-top OSFP end suits Quantum-2 and Spectrum-4 switch cages
- Flat-top QSFP112 ends suit ConnectX-7 and BlueField-3 riding heat sinks
- Each end has an EEPROM for product identification and characteristics
- Cable length is tuned to reduce internal signal noise and back reflections
- Hot pluggable and CMIS compliant
- LSZH jacket for low smoke, zero halogen environments
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Data rate: 800Gb/s to two 400Gb/s
- Modulation: 100G-PAM4
- Cable type: Passive direct attach copper (DAC) dual breakout splitter
- Switch-side connector: Twin-port OSFP, finned top, 8 channels
- Server-side connectors: 2x QSFP112, flat top, 4 channels each
- Length: 2m
- Wire gauge: 26AWG at 2m
- Power consumption: 0.1 W per OSFP end and per QSFP112 end
- Operating case temperature: 0 to 70 C
- OSFP end management: CMIS based
- QSFP112 ends management: SFF-8636 based
- Protocol support: InfiniBand and Ethernet, auto-enabled by host protocol
- Jacket: LSZH
- Compliance: RoHS, CMIS
- Hot pluggable: Yes
FAQs
Q: Does this cable need a licence or subscription?
A: No. It is a passive copper cable, so no licence or subscription is required.
Q: What does the cable power draw look like?
A: It is passive. The OSFP end and each QSFP112 end consume 0.1 W.
Q: Which switches and adapters does it connect?
A: It connects NVIDIA Quantum-2 (InfiniBand NDR) and Spectrum-4 (Ethernet) switches with OSFP cages to QSFP112-based ConnectX-7 PCIe adapters and BlueField-3 DPUs.
Q: Does it run InfiniBand or Ethernet?
A: Both. The firmware supports InfiniBand and Ethernet and enables the correct protocol automatically based on the host it is attached to.
Q: How does this 2m SKU differ from other lengths in the range?
A: The MCP7Y10 family covers 1m to 3m. This SKU is the 2m length, which uses 26AWG cable, while the shorter 1m and 1.5m lengths use 30AWG.
