NVIDIA

NVIDIA 980-9I925-00N002 | LinkX NDR 800G to 2x400G OSFP Splitter Cable, 2m

SKU:980-9I925-00N002

$1,592.63 inc. GST
$1,447.85 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

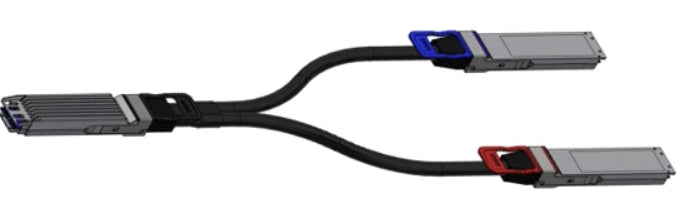

This NVIDIA LinkX NDR passive copper splitter cable connects one twin-port 800Gb/s OSFP port to two 400Gb/s OSFP ports over a 2 m run. It is built for short-reach AI and HPC cluster racks, where a Quantum-2 InfiniBand or Spectrum-4 Ethernet switch port needs to feed two ConnectX-7 or BlueField-3 adapters.

The cable is a direct attach copper design with no optics, using OSFP connectors on all three ends. The 800G side presents an IB twin-port NDR interface that splits into two independent 2 x 400Gb/s OSFP legs. The flat-top OSFP housing suits adapters and ports with a flat-top cage, such as the 400G side of ConnectX-7 and BlueField-3 cards.

Being passive, the cable has no active electronics and needs no external power. NVIDIA lists this cable as validated for NDR InfiniBand in the ConnectX-7 and Quantum-2 firmware release notes, making it a straightforward choice for 800G-to-400G breakout inside a single rack or between adjacent racks.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Splits one 800Gb/s NDR twin-port OSFP port into two independent 400Gb/s OSFP ports
- Passive copper construction with no active electronics
- Flat-top OSFP ends suited to ConnectX-7, BlueField-3 and other flat-top OSFP ports on the 2 x 400G side
- Validated by NVIDIA for NDR InfiniBand ConnectX-7 and Quantum-2 cable support lists
- Suited to short-reach links of up to 2 m inside AI and HPC cluster racks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Cable type: Passive copper splitter (DAC), no optics
- Interface: IB twin-port NDR 800Gb/s to 2 x 400Gb/s
- Connectors: OSFP to 2 x OSFP
- Length: 2 m
- Connector housing: Flat-top OSFP
- Power: Passive, no external power required
- NVIDIA part number: MCP7Y00-N002-FLT

FAQs

Q: What does this splitter cable connect?
A: It connects one 800Gb/s NDR twin-port OSFP port, such as on a Quantum-2 InfiniBand switch, to two 400Gb/s OSFP ports, such as on ConnectX-7 or BlueField-3 adapters.

Q: Does this cable need external power?
A: No. It is a passive copper cable with no active electronics, so it does not require external power.

Q: Is this an optical cable?
A: No. It is a direct attach copper splitter cable with OSFP connectors and no optics, intended for short runs of up to 2 m.

Q: What is the flat-top connector for?
A: The flat-top OSFP housing suits flat-top OSFP cages, such as the 400G side of ConnectX-7 and BlueField-3 cards. Finned-top cages are typically found on the switch side.

Q: Is it validated for NVIDIA NDR InfiniBand equipment?
A: Yes. NVIDIA lists this cable in the validated NDR cable lists for ConnectX-7 and Quantum-2 firmware.
