NVIDIA 980-9I924-00N002 | LinkX NDR 800G to 2x400G OSFP Splitter DAC, 2m, Fin-to-Flat
SKU:980-9I924-00N002
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

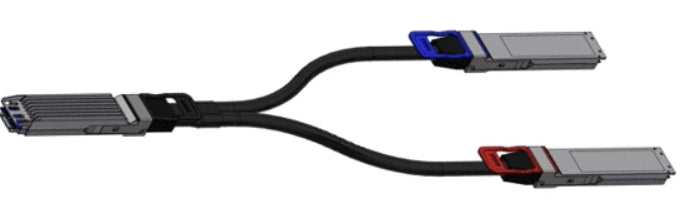

This NVIDIA LinkX NDR InfiniBand passive copper splitter cable breaks one twin-port 800Gb/s OSFP port out to two separate 400Gb/s OSFP ports. It is built for switch-to-adapter links in AI and HPC data centre fabrics, connecting a Quantum-2 switch to ConnectX-7 OSFP adapters.
The cable is 2 m long and uses 26 AWG passive copper with PAM4 modulation. The 800Gb/s end is a finned-top OSFP connector and the two 400Gb/s ends are flat-top OSFP connectors, so check that your switch and adapter cage types match this fin-to-flat arrangement. Being passive, it draws no external power and adds very little latency. It operates from 0 to 70 C and has a minimum bend radius of 89 mm.
It is a validated NDR cable in NVIDIA Quantum-2 firmware compatibility lists and suits breakout from a Quantum-2 InfiniBand or Spectrum-4 Ethernet switch to two 400Gb/s OSFP adapters.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Passive copper splitter with no power draw and low latency
- Splits one 800Gb/s NDR twin-port into two independent 400Gb/s links
- OSFP connectors on all three ends for NDR InfiniBand and 400G Ethernet breakout
- Validated NDR cable in NVIDIA Quantum-2 firmware compatibility lists
- Finned-top to flat-top design for switch cages and adapter cages respectively
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ordering part number: MCP7Y00-N002
- Connector: OSFP to 2 x OSFP
- Max data rate: 800Gb/s twin-port to 2 x 400Gb/s
- Cable type: Passive copper DAC
- Wire gauge: 26 AWG
- Cable length: 2 m (7 ft)
- Modulation format: PAM4
- Protocol: InfiniBand NDR
- Connector tops: Finned-top on the 800G end, flat-top on the 2x400G ends
- Jacket material: Hair Tail Technology Net
- Minimum bend radius: 89 mm
- Operating temperature: 0 to 70 C (32 to 158 F)
- Power: Passive, no external power required
FAQs
Q: Does this cable need external power?
A: No. It is a passive copper DAC and draws no external power.
Q: What does it connect?
A: One twin-port 800Gb/s NDR OSFP port, such as on a Quantum-2 InfiniBand or Spectrum-4 Ethernet switch, to two 400Gb/s OSFP ports on ConnectX-7 OSFP adapters.
Q: Can I use it with QSFP112 adapters or DPUs?
A: No. BlueField-3 and ConnectX-7 devices with QSFP112 cages need the MCP7Y10 or MCP7Y40 cables instead.
Q: What does fin-to-flat mean?
A: The 800Gb/s end has a finned-top OSFP connector for switch cages, and the two 400Gb/s ends have flat-top OSFP connectors for adapter cages.
Q: How long is the cable and what is its bend radius?
A: It is 2 m (7 ft) long with a minimum bend radius of 89 mm.
