NVIDIA 980-9I80P-00N003 | LinkX MCP7Y10 800G to 2x400G DAC Splitter, 3m, 26AWG
SKU:980-9I80P-00N003
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

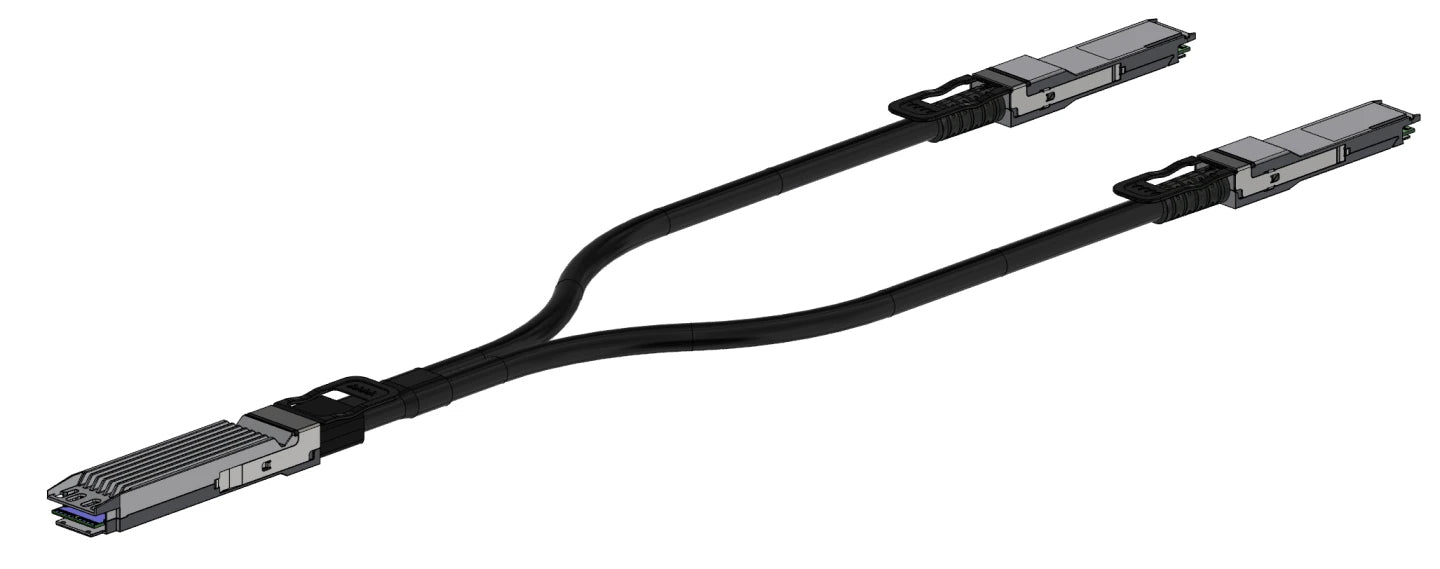

The NVIDIA LinkX MCP7Y10 is a 3 m passive copper splitter cable that breaks a single 800Gb/s twin-port OSFP connection out to two 400Gb/s QSFP112 ends. It is built for AI, HPC and data centre racks where an NVIDIA Quantum-2 InfiniBand or Spectrum-4 Ethernet switch needs to feed two ConnectX-7 adapters or BlueField-3 DPUs over short in-rack and adjacent-rack runs.
The OSFP head has a finned top for switch cages, while the two flat-top QSFP112 ends use the riding heat sinks on the adapter side. Each 400Gb/s leg uses 4 lanes of 100G-PAM4. The cable uses 26 AWG conductors in a 2x8 pair construction with an 8.9 mm diameter and an LSZH jacket. Power draw is 0.1 W maximum per end, drawn from the host 3.3 V supply. Operating case temperature is 0 to 70 C.
It works with both 800GBASE-CR8 and 400GBASE-CR4 Ethernet as well as InfiniBand NDR, and the firmware enables the correct protocol automatically based on the attached switch. It is CMIS 4.0 compliant and hot pluggable, with no licence or subscription required.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Single 800Gb/s OSFP port breaks out to two independent 400Gb/s QSFP112 ports
- Passive design with no electronics in the data path for low latency and near-zero power draw
- Supports InfiniBand NDR and Ethernet (800GBASE-CR8 / 400GBASE-CR4) with automatic protocol enablement
- EEPROM at each end provides product identification to the host
- Hot pluggable and CMIS compliant
- LSZH jacket for low smoke, zero halogen cabling environments
- Finned-top OSFP head suits Quantum-2 and Spectrum-4 switch cages
- Flat-top QSFP112 ends suit ConnectX-7 and BlueField-3 cages
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Data rate: 800Gb/s to 2 x 400Gb/s (1:2 splitter)
- Modulation: 100G-PAM4, 4 lanes x 100G per 400G leg
- Head connector: OSFP twin-port, finned top
- End connectors: 2 x QSFP112, flat top
- Cable type: Passive copper DAC
- Cable length: 3.0 m (tolerance +/-50 mm)
- Cable gauge: 26 AWG, 2x8 pairs
- Cable diameter: 8.9 mm
- Minimum bend radius: 89 mm
- Power consumption: 0.1 W max per end
- Supply voltage: 3.135 to 3.465 V (3.3 V typical)
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Operating relative humidity: 5 to 85 %
- Characteristic impedance: 90 / 100 / 110 ohm (min/typ/max)
- Propagation delay: 4.5 ns/m max
- Management interface: CMIS 4.0
- Jacket: LSZH (Low Smoke Zero Halogen)
- Tab colours: OSFP black, QSFP112 end 1 blue, QSFP112 end 2 red
- Compliance: RoHS, CE, FCC, RCM, UKCA
FAQs
Q: Does this cable need a licence or external power?
A: No. It is a passive copper cable with no licence or subscription. It draws a maximum of 0.1 W per end from the host 3.3 V supply.
Q: Which switches and adapters does it connect?
A: It connects 800Gb/s OSFP ports on NVIDIA Quantum-2 InfiniBand and Spectrum-4 Ethernet switches to QSFP112 ports on ConnectX-7 adapters and BlueField-3 DPUs.
Q: Does it work for both InfiniBand and Ethernet?
A: Yes. The firmware supports InfiniBand NDR and Ethernet (800GBASE-CR8 / 400GBASE-CR4) and enables the correct protocol automatically based on the attached switch.
Q: How is this different from other MCP7Y10 length options?
A: This SKU is the 3 m, 26 AWG version of the MCP7Y10 800Gb/s to 2x400Gb/s splitter. Other lengths in the family use the same connectors and speeds.
Q: Is this the same as the 800G to 4x200G splitter?
A: No. The 1:4 splitter that breaks out to four 200Gb/s ends is a separate cable family. This cable splits 800Gb/s into two 400Gb/s QSFP112 ends.
