NVIDIA 980-9I80C-00N002 | LinkX 800G OSFP to 4x200G QSFP112 DAC Cable, 2m, 26AWG
SKU:980-9I80C-00N002
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

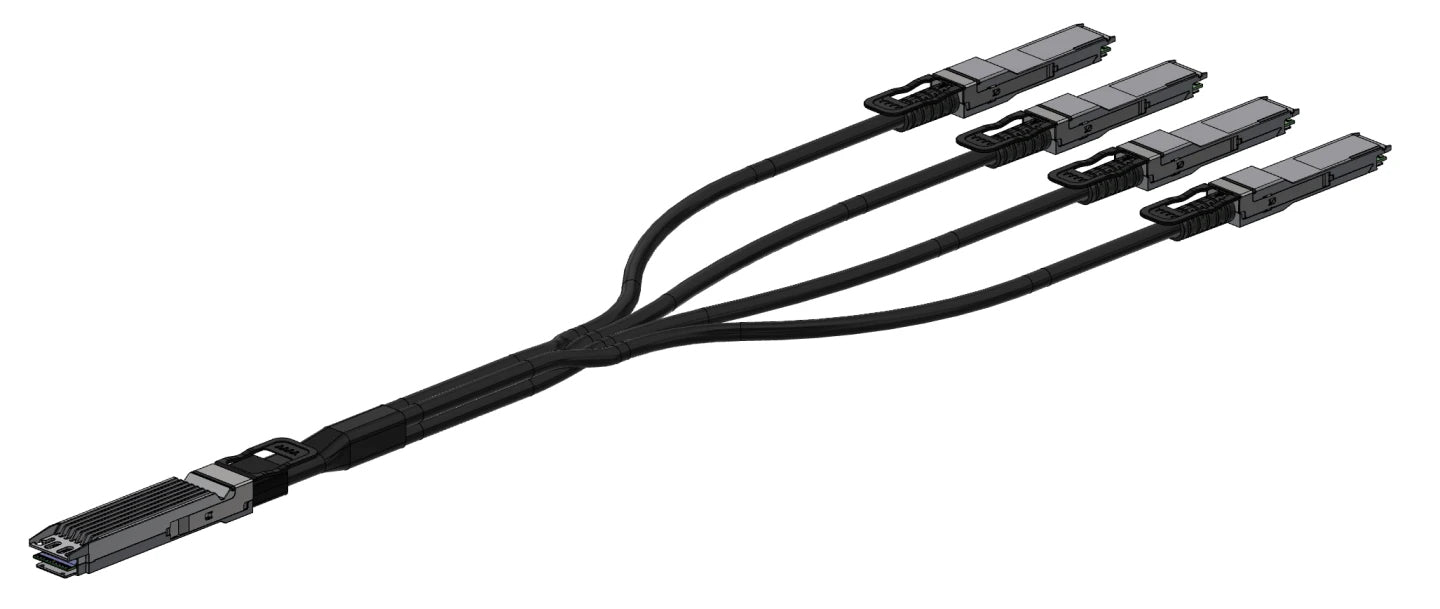

This NVIDIA LinkX MCP7Y40 passive copper splitter cable breaks one 800Gb/s twin-port OSFP connection out into four 200Gb/s QSFP112 ends. It is built for AI, HPC and data-centre racks where a Quantum-2 InfiniBand or Spectrum-4 Ethernet switch port needs to reach four ConnectX-7 adapters or BlueField-3 DPUs over a short run.
This SKU is the 2 m, 26AWG version. Each 200G end carries two 100G-PAM4 channels, and the OSFP head has a finned top while the four QSFP112 ends are flat-top. The cable is passive with no electronics in the data path, drawing 0.1 W maximum per OSFP and QSFP112 end from the host 3.3 V supply. It operates at a case temperature of 0 to 70 C, uses a CMIS 4.0 management interface and has an LSZH jacket.
The OSFP end suits NVIDIA Quantum-2 InfiniBand and Spectrum-4 Ethernet switch cages, while the QSFP112 ends suit ConnectX-7 and BlueField-3 cages. InfiniBand NDR or Ethernet operation is detected automatically by the host. It is a validated NDR cable in NVIDIA Quantum-2, ConnectX-7 and BlueField firmware compatibility tables.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 800Gb/s to four 200Gb/s breakout in a single passive cable
- InfiniBand NDR or Ethernet operation auto-enabled depending on the attached switch protocol
- Passive design with near-zero power draw and low latency compared with optical links
- EEPROM in each end provides product identification
- Hot pluggable and CMIS compliant
- LSZH jacket for low smoke and zero halogen
- Finned-top OSFP head for Quantum-2 and Spectrum-4 switch cages, flat-top QSFP112 ends for ConnectX-7 and BlueField-3 cages
- Each cable length is tuned to reduce noise and back reflections
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ordering part number: MCP7Y40-N002
- Data rate: 800Gb/s to four 200Gb/s
- Connectors: OSFP (finned top) to 4x QSFP112 (flat top)
- Modulation: 2-channel 100G-PAM4 per 200G end
- Length: 2.0 m, tolerance +/-50 mm
- Cable gauge: 26AWG, 4x4 pairs
- Cable diameter: 7.1 +/-0.03 mm
- Minimum bend radius: 71 mm
- Supply voltage: 3.135 to 3.465 V, 3.3 V typical
- Power consumption: 0.1 W max per OSFP and QSFP112 end
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Operating relative humidity: 5 to 85 %
- Characteristic impedance: 90 / 100 / 110 ohm (min/typ/max)
- Propagation delay: 4.5 ns/m max
- Management interface: CMIS 4.0
- Jacket: LSZH (Low Smoke Zero Halogen)
- Environmental: RoHS compliant, lead free, halogen free
- Safety compliance: CB, TUV, CE, EAC, UKCA
- EMC compliance: CE, FCC, ICES, RCM, VCCI
FAQs
Q: What does this cable connect?
A: The OSFP end plugs into a Quantum-2 InfiniBand or Spectrum-4 Ethernet switch port. The four QSFP112 ends connect to ConnectX-7 adapters or BlueField-3 DPUs at 200Gb/s each.
Q: Does it work with both InfiniBand and Ethernet?
A: Yes. The cable supports InfiniBand NDR and Ethernet, and the firmware enables the correct mode automatically based on the protocol of the attached switch.
Q: Does the cable need external power?
A: No. It is a passive copper cable powered from the host 3.3 V supply, consuming 0.1 W maximum per OSFP and QSFP112 end.
Q: What is the maximum reach?
A: This SKU is 2 m with 26AWG conductors. Passive copper is intended for short in-rack or adjacent-rack runs.
Q: How do I tell the QSFP112 breakout ends apart?
A: The OSFP head has a black pull tab, and the four QSFP112 ends are colour-coded green, blue, yellow and red for ports 1 to 4.
