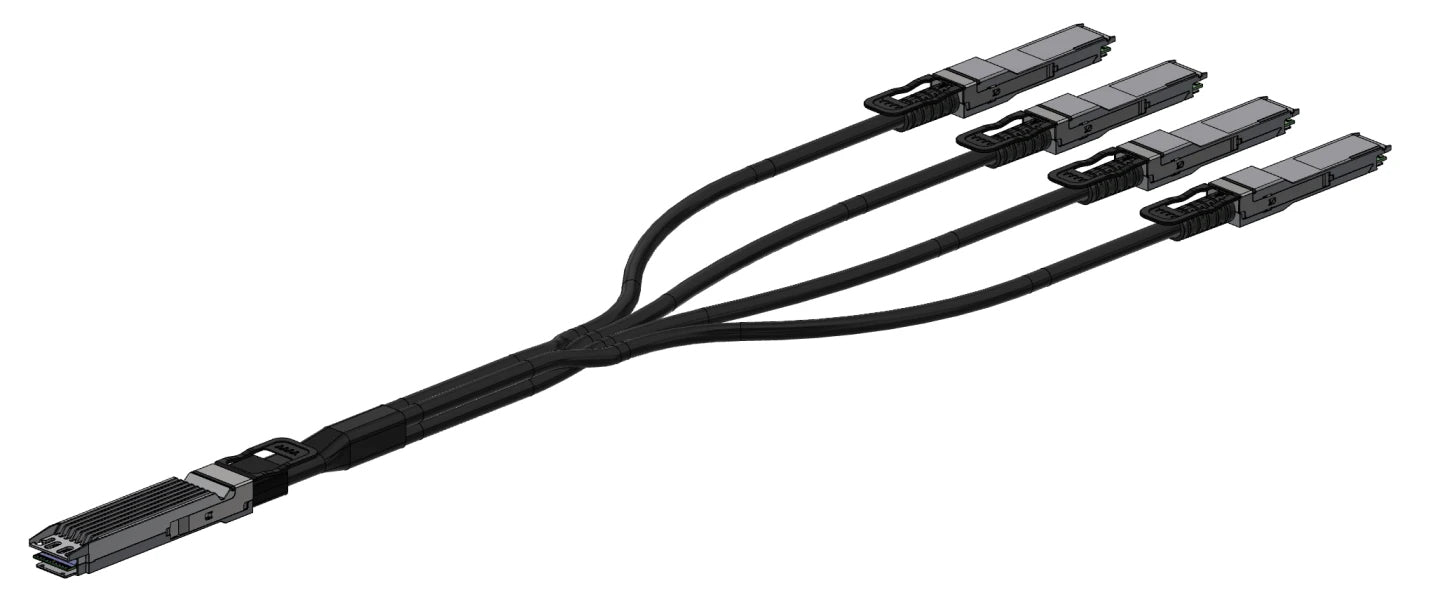

NVIDIA 980-9I75R-00N003 | LinkX 800G OSFP to 4x 200G QSFP112 DAC, 3m, 26AWG
SKU:980-9I75R-00N003
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This NVIDIA LinkX passive copper splitter cable breaks one twin-port 800Gb/s OSFP port out into four 200Gb/s QSFP112 links. It is built for AI and HPC InfiniBand NDR fabrics, and for 400Gb/s end-to-end Ethernet fabrics, where a switch port needs to feed several server NICs or DPUs over short in-rack and adjacent-rack runs.
The cable is 3 m long using 26AWG wire (4x4 pairs) and uses 2-channel 100G-PAM4 modulation on each 200G end. It is entirely passive, so there is no active electronics and no external power. The OSFP head end and each QSFP112 end draw just 0.1 W maximum from the 3.3 V host supply. The cable is hot pluggable, has an LSZH jacket and is RoHS compliant. The OSFP end uses a CMIS-based interface and the QSFP112 ends use an SFF-8636-based interface.
The finned-top OSFP end fits NVIDIA Quantum-2 InfiniBand and Spectrum-4 switch cages. The four flat-top QSFP112 ends connect to ConnectX-7 adapters and BlueField-3 DPUs with QSFP112 ports. For adapters with OSFP ports, the MCP7Y50 cable family is the correct choice instead.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Splits one 800Gb/s twin-port OSFP into four 200Gb/s QSFP112 links
- Passive copper design with no active electronics
- Near-zero power draw at 0.1 W per end
- Cable length tuned to reduce internal signal noise and back reflections
- Hot pluggable
- CMIS-based OSFP head end and SFF-8636-based QSFP112 ends
- Finned-top OSFP for Quantum-2 and Spectrum-4 switch cages, flat-top QSFP112 ends for NICs and DPUs
- LSZH jacket and RoHS compliant
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number (OPN): MCP7Y40-N003
- NVIDIA ordering SKU: 980-9I75R-00N003
- Connectors: twin-port OSFP to 4x QSFP112
- Data rate: 800Gb/s to four 200Gb/s
- Modulation: 2-channel 100G-PAM4
- Cable type: passive copper DAC
- Length: 3 m
- Wire gauge: 26AWG, 4x4 pairs
- Power consumption: 0.1 W max per end (OSFP and each QSFP112)
- Supply voltage (Vcc): 3.135 min / 3.3 typ / 3.465 max V
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Storage temperature: -40 to 85 C
- Characteristic impedance: 90 / 100 / 110 ohm (min/typ/max)
- Propagation delay: 4.5 ns/m max
- OSFP head end interface: CMIS based
- QSFP112 ends interface: SFF-8636 based
- Jacket: LSZH (Low Smoke Zero Halogen)
- Compliance: RoHS, lead-free and halogen-free PCB
FAQs
Q: Does this cable need external power?
A: No. It is a passive copper cable. Each end draws 0.1 W maximum from a 3.3 V host supply.
Q: Which devices does it connect?
A: The finned-top OSFP end fits NVIDIA Quantum-2 InfiniBand and Spectrum-4 switch cages. The four flat-top QSFP112 ends connect to ConnectX-7 adapters and BlueField-3 DPUs with QSFP112 ports.
Q: Can I use it with adapters that have OSFP ports?
A: No. This cable is for QSFP112 adapters and DPUs. For OSFP-ended adapters, use the MCP7Y50 cable family instead.
Q: How does the 3 m version differ from shorter lengths in this family?
A: The family is offered in 1, 1.5, 2, 2.5 and 3 m lengths. The 3 m cable uses thicker 26AWG wire, while the 1 m and 1.5 m cables use 30AWG.
Q: What link speeds does it support?
A: It carries a twin-port 800Gb/s OSFP connection split into four 200Gb/s links, suited to InfiniBand NDR and 400Gb/s end-to-end Ethernet fabrics.
