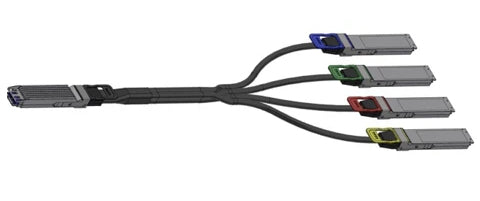

NVIDIA 980-9I75E-00N001 | LinkX 800G to 4x200G OSFP DAC Splitter Cable, 1m, 30AWG
SKU:980-9I75E-00N001
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This NVIDIA LinkX passive copper splitter cable connects one 800Gb/s twin-port OSFP port to four 200Gb/s OSFP ports. It is built for AI, HPC and data-centre racks where a Quantum-2 InfiniBand NDR or Spectrum-4 Ethernet switch needs to feed four ConnectX-7 OSFP adapters or BlueField-3 DPUs over a short reach.
This 1 m version uses 30AWG 4x4 pair cable with a finned-top twin-port OSFP head and four flat-top OSFP tails. It runs 100G-PAM4 modulation with two lanes per 200G end and supports InfiniBand NDR, 800GBASE-CR8 and 200GBASE-CR2. As a passive DAC there are no electronics in the data path, so each OSFP end draws only about 0.1 W from the host port at 3.3 V. No licence or subscription is needed.
The finned-top head suits Quantum-2 and Spectrum-4 switch cages, and the flat-top tails suit OSFP-based ConnectX-7 adapters with riding heat sinks. It is not intended for QSFP112-based ConnectX-7 or BlueField-3 cards, and the flat-top twin-port FLT variant is the choice for liquid-cooled systems such as DGX-H100.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Breaks out one 800Gb/s twin-port OSFP into four 200Gb/s OSFP links
- Passive design with no electronics in the data path for low cost, low latency and near-zero power
- Supports both InfiniBand and Ethernet, enabled automatically based on the attached switch protocol
- Hot pluggable with an EEPROM on each end for product identification
- Cable length tuned to reduce signal noise and back reflections
- RoHS compliant with LSZH jacket and lead-free, halogen-free PCB
- Colour-coded end tabs, black on the head and green, blue, yellow and red on the tail ports
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: MCP7Y50-N001
- Data rate: 800Gb/s to four 200Gb/s
- Head connector: twin-port OSFP, finned top
- Tail connectors: 4x OSFP, flat top
- Modulation: 100G-PAM4, 2 lanes per 200G end
- Media type: Passive copper
- Cable length: 1.0 m
- Length tolerance: +/-25 mm
- Cable gauge: 30AWG, 4x4 pairs
- Cable diameter: 5.7 +/-0.03 mm
- Minimum bend radius: 57 mm
- Supply voltage: 3.135 / 3.3 / 3.465 V (min/typ/max)
- Power consumption: 0.1 W max per OSFP end
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Operating relative humidity: 5 to 85 %
- Characteristic impedance: 90 / 100 / 110 ohm (min/typ/max)
- Propagation delay: 4.5 ns/m max
- Management interface: CMIS 5.0 compliant I2C, flat memory, max 400 kHz
- Supported applications: InfiniBand NDR, 800GBASE-CR8, 400GBASE-CR4, 200GBASE-CR2, 100GBASE-CR1, 400GBASE-CR8
- Jacket: LSZH, lead-free and halogen-free PCB
FAQs
Q: Does this cable need a licence or subscription?
A: No. It is a passive copper cable with no licence or subscription required.
Q: Which switches and adapters does it connect?
A: The finned-top twin-port OSFP head fits NVIDIA Quantum-2 InfiniBand NDR and Spectrum-4 Ethernet switch cages. The four flat-top OSFP tails connect to OSFP-based ConnectX-7 adapters and BlueField-3 DPUs.
Q: Can I use it with QSFP112-based ConnectX-7 or BlueField-3 cards?
A: No. Those cards need the MCP7Y10 or MCP7Y40 cables. This cable is for OSFP-based adapters.
Q: How does it differ from the FLT variant?
A: This SKU has a finned-top head for air-cooled switch cages. The flat-top twin-port FLT variant, such as 980-9I75F-00N001, is for liquid-cooled systems like DGX-H100.
Q: How much power does the cable draw?
A: It is powered from the host port at 3.3 V, and each OSFP end consumes about 0.1 W maximum.
