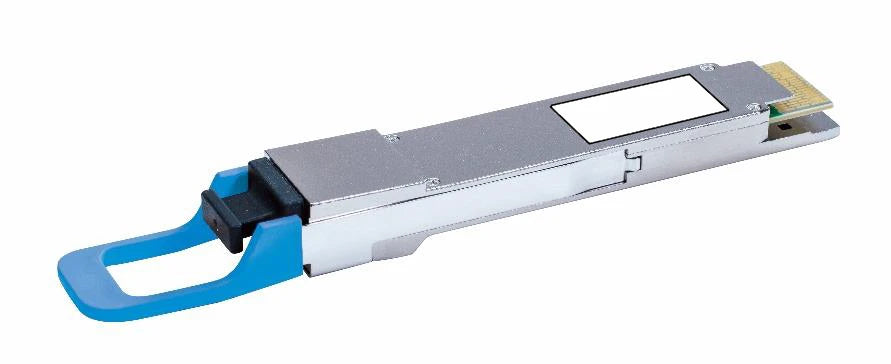

NVIDIA 980-9I693-00NS00 | InfiniBand NDR 400G QSFP112 SR4 Transceiver, 50m MPO-12
SKU:980-9I693-00NS00
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This NVIDIA InfiniBand NDR transceiver is a single-port 400Gb/s QSFP112 SR4 multimode optic for InfiniBand NDR and Ethernet links. It is built for ConnectX-7 adapters and BlueField-3 DPUs with QSFP112 cages, and suits short-reach links in data centres and AI/HPC clusters.
It uses four 100G-PAM4 channels over an 850nm VCSEL and a single MPO-12/APC connector. Reach is 30 m on OM3 and 50 m on OM4 fibre. The flat-top shell uses the riding heat sink on the ConnectX-7 or BlueField-3 cage. Power draw is 8.5W maximum with four channels active and 5.5W maximum with two channels active, from a single 3.3V supply. The tan pull tab identifies it as a multimode optic.
It links to Twin-port OSFP transceivers in 2x400G InfiniBand or Ethernet switches, and to other 400G SR4 transceivers over MPO-12/APC crossover fibre cables. The APC connector is not compatible with UPC (aqua) fibre.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Supports both InfiniBand NDR and Ethernet, with the protocol enabled automatically depending on the attached switch
- Connects to a 1:2 splitter fibre cable and activates only two channels for a 200G (NDR200) link at lower power
- Flat-top QSFP112 shell uses the riding heat sink on ConnectX-7 and BlueField-3 cages
- Single MPO-12/APC connector carries all four optical channels
- Same design and internals as the OSFP version, with a different connector shell
- Production tested by NVIDIA for use in end-to-end NVIDIA InfiniBand systems
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: MMA1Z00-NS400 (980-9I693-00NS00)
- Protocol: InfiniBand NDR and Ethernet, selected automatically depending on the attached switch
- Data rate: 400Gb/s
- Form factor: QSFP112, flat-top shell
- Modulation: 4 channels of 100G-PAM4
- Laser: 850nm VCSEL, SR4 multimode
- Transmitter wavelength (min/typ/max): 844 / 850 / 863 nm
- Receiver wavelength (min/typ/max): 842 / 850 / 863 nm
- Optical connector: single MPO-12/APC (green shell)
- Maximum reach on OM3: 30 m
- Maximum reach on OM4: 50 m, assuming two optical patch panels in the link
- Power consumption: 8.5W max (4 channels)
- Power consumption (2 channels, 1:2 splitter cable): 5.5W max
- Power supply: single 3.3V
- Average launch power per lane: -4.6 to +4.0 dBm
- Average receive power per lane: -6.3 to +4.0 dBm
- Case temperature range: 0 to +70 C
- Laser safety: Class 1
- Standards: QSFP112 MSA, CMIS 4.0 compliant
- Hot pluggable, RoHS based
- Pull tab: tan, indicating multimode optics
FAQs
Q: Which NVIDIA devices does this transceiver fit?
A: It is made for ConnectX-7 adapters and BlueField-3 DPUs with QSFP112 cages. The flat-top shell relies on the riding heat sink in those cages.
Q: Can it link to an OSFP switch port?
A: Yes. It links to Twin-port OSFP transceivers in 2x400G InfiniBand or Ethernet switches over MPO-12/APC multimode fibre.
Q: Does it work with UPC (aqua) fibre?
A: No. It has an MPO-12/APC connector (green shell) and is not compatible with UPC connectors, so the fibre cable must be APC terminated.
Q: What reach can I expect?
A: Maximum reach is 30 m on OM3 fibre and 50 m on OM4 fibre. The 50 m figure assumes up to two optical patch panels in the link.
Q: Can it run as a 200G link?
A: Yes. Used with a 1:2 splitter fibre cable it activates only two channels, giving a 200G (NDR200) link at a lower 5.5W maximum power draw.
