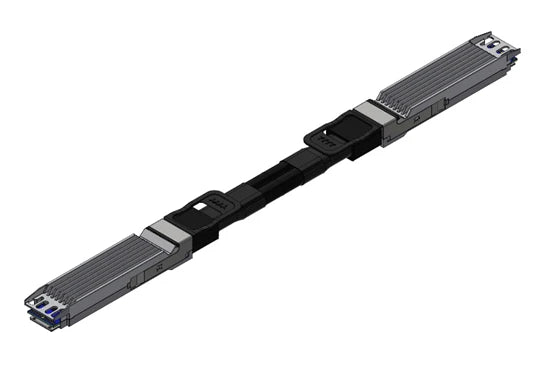

NVIDIA 980-9I602-00N005 | MCA4J80 800G Twin-Port OSFP Active Copper Cable, 5m

SKU:980-9I602-00N005

$2,619.00 USD
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This NVIDIA MCA4J80-N005 is a 5 m twin-port 800Gb/s OSFP to OSFP linear active copper cable for InfiniBand NDR networking. It carries 2x 400Gb/s per cable, with equalisation circuitry built into the connectors to reach 5 m at very low power. It is designed for short-reach switch-to-switch and switch-to-server links in InfiniBand NDR HPC and AI clusters.

Each port supports NDR 400Gb/s InfiniBand using four lanes of 100Gb/s. The cable is a linear active copper type with finned-top OSFP connectors, and it is powered from the host port on a 3.3 V supply (3.135 to 3.465 V) at a maximum of 1.5 W. It operates at case temperatures of 0 to 70 C and 5 to 85 percent relative humidity.

It works with NVIDIA Quantum-2 (QM9700/QM9790) NDR InfiniBand switches and ConnectX-7 / BlueField-3 NDR adapters with OSFP cages, and it appears in the Quantum-2 firmware compatible-products list.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Twin-port 800Gb/s OSFP to OSFP linear active copper cable for InfiniBand NDR
- Supports NDR 400Gb/s InfiniBand with four 100Gb/s lanes per port
- Equalisation circuitry in the connectors extends reach to 5 m
- Low power draw of 1.5 W maximum per cable end
- Powered directly from the host port, no external power required
- Listed as a supported cable in the NVIDIA Quantum-2 firmware compatibility matrix

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Legacy part number: MCA4J80-N005
- Data rate: twin-port 800Gb/s (2x 400Gb/s NDR)
- Connectors: OSFP to OSFP, finned top
- Cable type: linear active copper cable (LACC)
- Length: 5 m
- Lanes: 4 lanes of 100Gb/s per port
- Supply voltage: 3.135 V min, 3.3 V typical, 3.465 V max
- Power consumption: 1.5 W max
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Characteristic impedance: 90 / 100 / 110 ohm (min/typ/max)
- Propagation delay: 4.5 ns/m max
- Cable diameter: 30AWG 7.2 mm, 26AWG 8.9 mm
- Minimum bend radius near connector: 10x cable outer diameter

FAQs

Q: What does this cable connect to?
A: It connects OSFP cages on NVIDIA Quantum-2 (QM9700/QM9790) NDR InfiniBand switches and ConnectX-7 / BlueField-3 NDR adapters. It suits both switch-to-switch and switch-to-server links.

Q: How much power does it draw?
A: It is powered from the host port on a 3.3 V supply (3.135 to 3.465 V) and draws 1.5 W maximum per cable end.

Q: What is the maximum reach?
A: This cable is 5 m long. For longer distances, an optical NDR cable or transceiver pair is the usual choice.

Q: What is the difference between this and an optical NDR cable?
A: This is a linear active copper cable, with equalisation circuitry in the connectors and a copper cable body. That gives very low power consumption for short-reach runs.

Q: Does it support Ethernet or only InfiniBand?
A: This cable is specified for InfiniBand NDR operation on OSFP ports with four 100Gb/s lanes per port.
