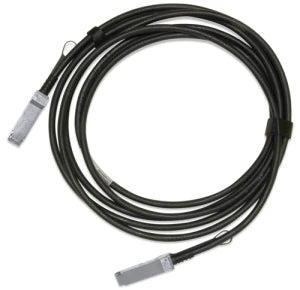

NVIDIA 980-9I54B-00H01A | LinkX 200G HDR QSFP56 DAC Cable, 1.5m, 30AWG, Black
SKU:980-9I54B-00H01A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This NVIDIA LinkX 200G HDR QSFP56 to QSFP56 passive copper direct attach cable is built for short-reach 200Gb/s InfiniBand HDR links inside data centres, HPC clusters and AI fabrics. It suits server-to-switch and switch-to-switch connections within a rack or between adjacent racks, and offers a low-cost, low-power alternative to fibre optics.
The cable is 1.5 m long using 30 AWG conductors, with QSFP56 connectors at both ends and a black pulltab. It carries up to 200Gb/s as 4 x 50Gb/s PAM4 lanes over eight high-speed copper pairs. As a passive design it contains no active electronics, drawing just 0.1 W maximum from the host port at 3.3 V, and it operates over a case temperature range of 0 to 70 C. The jacket is LSZH and the PCB is lead-free and halogen-free.
It is IBTA InfiniBand HDR compliant and appears on NVIDIA's validated cable lists for ConnectX and BlueField-3 adapters. The HDR variants of this cable are InfiniBand-oriented, while the MCP1650-V0xx variants are the 200GbE-specific versions.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Cost-effective, power-efficient alternative to optical fibre for short-reach 200Gb/s InfiniBand HDR links
- Passive design with no electronics for near-zero power draw
- Hot pluggable for installation without powering down the host
- LSZH jacket with lead-free, halogen-free PCB, RoHS compliant
- EEPROM in each QSFP56 end reports product information to the host system
- Production-tested for out-of-the-box installation and durability
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Connector: QSFP56 to QSFP56 (SFF-8665)
- Cable type: Passive copper direct attach cable
- Data rate: up to 200Gb/s (4 x 50Gb/s PAM4)
- Protocol: InfiniBand HDR
- Cable length: 1.5 m (±0.025)
- Wire gauge: 30 AWG
- Jacket: LSZH, black
- Pulltab colour: Black
- Single cable diameter: 7.1 ± 0.35 mm
- Minimum bend radius: 35.5 mm single bend, 71 mm repeated bend
- Supply voltage: 3.135 / 3.3 / 3.465 V (min/typ/max)
- Power consumption: 0.1 W max
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Storage temperature: -40 to 85 C
- Characteristic impedance: 90 / 100 / 110 ohm (min/typ/max)
- Propagation delay: 4.5 ns/m max
- Bit error rate: better than 1E-15 with NVIDIA InfiniBand HDR systems
- Management interface: SFF-8636 compliant I2C, EEPROM on each end
- Compliance: IBTA IB HDR, SFF-8665, SFF-8636, RoHS
- Legacy part number: MCP1650-H01AE30
FAQs
Q: Does this cable need external power?
A: No. It is a passive cable with no external power. It draws a maximum of 0.1 W from the host port at 3.3 V.
Q: Is this cable for InfiniBand or Ethernet?
A: This HDR variant is oriented to InfiniBand HDR 200Gb/s links, and is also listed for 200GbE use. The MCP1650-V0xx variants are the 200GbE-specific versions.
Q: What ports does it work with?
A: It connects QSFP56 ports that support InfiniBand HDR 200Gb/s. It appears on NVIDIA's validated cable lists for ConnectX and BlueField-3 adapters.
Q: What is the legacy part number for this SKU?
A: SKU 980-9I54B-00H01A corresponds to the legacy part number MCP1650-H01AE30.
Q: How does this differ from other cables in the MCP1650-H0xxEyy range?
A: The range shares the same 200Gb/s HDR QSFP56 passive copper design. This SKU is the 1.5 m, 30 AWG version with a black pulltab.
