NVIDIA

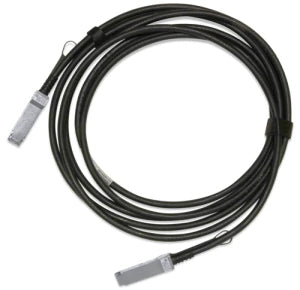

NVIDIA 980-9I548-00H001 | LinkX 200G QSFP56 DAC, 1m, 30AWG, LSZH, HDR

SKU:980-9I548-00H001

$298.00 USD
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This LinkX 200G QSFP56 direct attach copper cable is a passive QSFP56-to-QSFP56 twinax assembly, 1 m in length, built for 200Gb/s InfiniBand HDR links. It suits short-reach switch-to-server and switch-to-switch connections within a rack or between adjacent racks in HPC, AI and data-centre fabrics.

The cable carries 200Gb/s over 4 x 50G PAM4 lanes and uses 30 AWG conductors with a black LSZH jacket. As a passive design it needs no external power and draws negligible power, making it a low-cost, low-power alternative to optical cabling where the distance allows. It is also usable for 200GbE links.

It is intended for NVIDIA Quantum HDR InfiniBand switches such as the QM8700 and QM8790, and ConnectX-6 and ConnectX-7 adapters with QSFP56 ports.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Passive copper design with negligible power draw
- Cost-effective alternative to optical fibre for short-reach 200Gb/s InfiniBand HDR links
- Four 50G PAM4 lanes for 200Gb/s aggregate throughput
- Compliant with the QSFP56 MSA
- LSZH jacket for low-smoke, zero-halogen cabling environments
- Suited to NVIDIA Quantum HDR switches and ConnectX-6 and ConnectX-7 adapters

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: QSFP56 to QSFP56
- Cable type: Passive copper direct attach cable
- Data rate: 200Gb/s (4 x 50G PAM4)
- Protocol: InfiniBand HDR, 200GbE
- Cable length: 1 m
- Wire gauge: 30 AWG
- Jacket: LSZH, black
- Power: Passive, no external power required
- Power consumption: Under 0.1 W
- Operating temperature: 0 to 70 C
- Compliance: QSFP56 MSA, RoHS

FAQs

Q: Does this cable need external power?
A: No. It is a passive copper cable with no external power requirement, and its power consumption is under 0.1 W.

Q: Which devices does it connect?
A: It connects QSFP56 ports on NVIDIA Quantum HDR InfiniBand switches such as the QM8700 and QM8790 with ConnectX-6 and ConnectX-7 adapters, or switch-to-switch links.

Q: What distance can it cover?
A: This SKU is 1 m long, so it suits links within a rack or between adjacent racks.

Q: Can it be used for 200G Ethernet?
A: Yes. It carries 200Gb/s over 4 x 50G PAM4 lanes and supports InfiniBand HDR as well as 200GbE links.

Q: How does this SKU differ from other cables in the same family?
A: This SKU is the 1 m, 30 AWG version with an LSZH jacket for InfiniBand HDR 200Gb/s. Other family members differ in length and wire gauge.
