NVIDIA

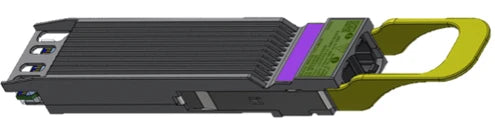

NVIDIA 980-9I51A-00NS00 | 800G Twin-Port OSFP SR8 Transceiver, 50m, Flat Top

SKU:980-9I51A-00NS00

$3,036.00 inc. GST
$2,760.00 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This NVIDIA MMA4Z00-NS twin-port OSFP transceiver carries two independent 400Gb/s links, 800Gb/s in total, over 850nm VCSEL multimode optics. It is built for short-reach links in AI and HPC clusters and spine-leaf fabrics running NDR InfiniBand or 400GbE. This is the flat-top version, intended for DGX H100 and liquid-cooled systems.

The module uses 8 x 100G-PAM4 electrical lanes and presents two 4-channel 100G-PAM4 optical ports through two MPO-12/APC connectors. Reach is up to 30m on OM3 fibre and up to 50m on OM4 fibre, assuming two optical patch panels in the link. Maximum power consumption is 17W from a single 3.3V supply, with a 2.0W low-power sleep mode. The same module runs InfiniBand NDR or 400GbE Ethernet depending on the host protocol.

It works with NVIDIA Quantum-2 InfiniBand and Spectrum-4 400GbE platforms, ConnectX-7 and BlueField-3 adapters (using 1:2 splitter cables for 200G links), and DGX H100. Air-cooled Quantum-2 and Spectrum-4 switches need the finned-top sibling, part number 980-9I510-00NS00.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports both InfiniBand NDR and 400GbE Ethernet
- Twin-port design with two internal transceiver engines in one OSFP plug
- Flat-top OSFP housing for DGX H100 and liquid-cooled systems
- Supports two straight 400Gb/s links or two 1:2 splitter cables for 200Gb/s links
- Hot pluggable and RoHS compliant
- Class 1 laser safety
- Compliant with OSFP MSA and CMIS 4.0

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: Twin-port OSFP, flat top
- Data rate: 800Gb/s (2x400Gb/s)
- Protocols: InfiniBand NDR and 400GbE Ethernet
- Electrical modulation: 8 channels of 100G-PAM4
- Optical modulation: two ports of 4-channel 100G-PAM4
- Wavelength: 850nm VCSEL
- Fibre type: Multimode, 8 fibres
- Maximum reach: 30m on OM3 fibre
- Maximum reach: 50m on OM4 fibre, assuming two optical patch panels in the link
- Optical connector: Two MPO-12/APC
- Maximum power consumption: 17W
- Low-power sleep mode: 2.0W
- Power supply: Single 3.3V
- Laser safety: Class 1
- Hot pluggable: Yes
- Compliance: RoHS, OSFP MSA, CMIS 4.0
- Breakout support: Two straight 400Gb/s links or two 1:2 splitter cables for 200Gb/s

FAQs

Q: Can this flat-top module be used in air-cooled Quantum-2 or Spectrum-4 switches?
A: No. Air-cooled Quantum-2 and Spectrum-4 switches need the finned-top version, part number 980-9I510-00NS00. This flat-top module is intended for DGX H100 and liquid-cooled hosts.

Q: Does it need a licence or separate firmware to run InfiniBand or Ethernet?
A: No licence is required. The module is enabled automatically for InfiniBand NDR or 400GbE according to the protocol of the switch or host it is plugged into.

Q: What fibre and distance does it support?
A: It uses multimode fibre with two MPO-12/APC connectors. Reach is up to 30m on OM3 and up to 50m on OM4, assuming two optical patch panels in the link.

Q: How much power does it draw?
A: It runs from a single 3.3V supply with a maximum consumption of 17W, and has a 2.0W low-power sleep mode.

Q: Can it connect to ConnectX-7 or BlueField-3 adapters?
A: Yes. It works with ConnectX-7 and BlueField-3 using 1:2 splitter fibre cables for 200Gb/s links, or as two straight 400Gb/s links.
