NVIDIA

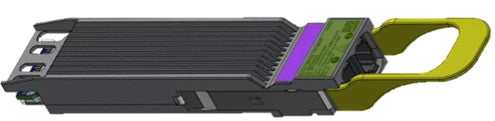

NVIDIA 980-9I510-F4NS00 | 800G Twin-Port OSFP SR8 Transceiver, MMF, 50m, Finned

SKU:980-9I510-F4NS00

$3,036.00 inc. GST
$2,760.00 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 800G twin-port OSFP SR8 transceiver is built for Spectrum-4 Ethernet fabrics. Its finned-top shell suits air-cooled switches, and it links Spectrum-4 switches to each other or to ConnectX-7 and BlueField-3 endpoints in AI and data-centre networks.

The module delivers 800Gb/s as two 400GbE links over 850nm VCSEL multimode optics, using 2 x MPO-12/APC connectors with 400Gb/s per connector. It uses 8 x 100G-PAM4 electrical lanes and two 4-channel 100G-PAM4 optical interfaces. Reach is up to 30 m on OM3 and 50 m on OM4 fibre. It runs from a single 3.3V supply at 15 W typical and 17 W maximum, with a 2 W low-power mode. No licence or subscription is required.

It supports two straight 400Gb/s links or two 1:2 splitter fibre cables for 200Gb/s breakout. For cabling, the MFP7E10-Nxxx straight crossover fibres and MFP7E20-Nxxx splitter fibres are recommended, in lengths from 3 m to 50 m.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Ethernet 800G multimode transceiver
- Supports two straight 400Gb/s links or two 1:2 splitter fibre cables for 200Gb/s
- Finned-top OSFP for extra cooling in air-cooled Spectrum-4 switches
- Twin-port design that turns the two MPO-12/APC connectors vertically so both fit in one OSFP plug
- 2 W low-power sleep mode
- Single 3.3V power supply
- Hot pluggable, RoHS compliant, CMIS 4.0

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Data rate: 800Gb/s (2 x 400GbE)
- Form factor: Twin-port OSFP, finned top
- Optical standard: SR8 / 2xSR4 parallel multimode
- Wavelength: 850nm VCSEL
- Optical connectors: 2 x MPO-12/APC
- Fibre type: Multimode, 8 fibres per link
- Maximum reach: 30m on OM3, 50m on OM4
- Electrical interface: 8 channels of 100G-PAM4
- Optical interface: two ports of 4-channel 100G-PAM4
- Signalling rate per lane: 53.125 GBd
- Supply voltage: 3.135 V min, 3.3 V typical, 3.465 V max
- Power dissipation: 15 W typical, 17 W maximum
- Low-power mode dissipation: 2 W maximum
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Relative humidity (non-condensing): 5 to 95%
- Laser safety: Class 1
- Standards: OSFP MSA, CMIS 4.0, RoHS compliant, hot pluggable
- Legacy part number: MMA4Z00-NS-T

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. No licence or subscription is required to use this transceiver.

Q: Which switches is the finned-top version for?
A: The finned-top shell is for Spectrum-4 OSFP air-cooled Ethernet switches, which require finned-top OSFP modules.

Q: Which fibre cables should I use with it?
A: NVIDIA recommends MFP7E10-Nxxx straight crossover fibres for 400Gb/s links and MFP7E20-Nxxx splitter fibres for 200Gb/s breakout, both from 3 m to 50 m.

Q: What reach can I expect over multimode fibre?
A: Up to 30 m on OM3 fibre and up to 50 m on OM4 fibre, assuming two optical patch panels in the link.

Q: What endpoints can it connect to?
A: It connects to ConnectX-7 and BlueField-3 endpoints, as well as other Spectrum-4 switches.
