NVIDIA

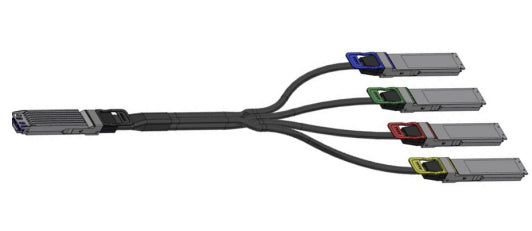

NVIDIA 980-9I50E-00N005 | LinkX MCA7J70 800G OSFP to 4x 200G OSFP Cable, 5m

SKU:980-9I50E-00N005

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The NVIDIA LinkX MCA7J70 is an 800Gb/s twin-port OSFP to 4x 200Gb/s OSFP active copper splitter cable for InfiniBand NDR and 400GbE links. It connects a Quantum-2 InfiniBand switch or a Spectrum-4 Ethernet switch to four ConnectX-7 OSFP adapters, which suits AI and HPC data centre racks.

This 5 m version uses 26AWG cable with a finned-top twin-port OSFP head on the switch end and four flat-top OSFP tails on the adapter ends. It carries 8 channels of 100G-PAM4 and an equaliser IC extends the copper reach to 5 m. Power draw is 1.5 W maximum at the switch end and 0.3 W maximum per 200G adapter end, from a single 3.3V supply. The firmware supports both InfiniBand and Ethernet and enables the correct mode automatically based on the switch protocol. It differs from the MCA7J70-N004, which is 4 m and 30AWG.

The cable is hot pluggable, uses a CMIS 5.0 management interface and has an LSZH jacket. It operates at a case temperature of 0 to 70 C.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Firmware supports both InfiniBand and Ethernet, selected automatically by the switch protocol
- Finned-top twin-port OSFP head for Quantum-2 and Spectrum-4 switch cages
- Flat-top OSFP tails for ConnectX-7 adapters with riding heat sinks
- Low latency and low power, with an equaliser IC extending copper reach to 5 m
- EEPROM on each end for product identification
- Hot pluggable with a single 3.3V supply
- IBTA IB HDR based and OSFP MSA based

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Part number: MCA7J70-N005 (980-9I50E-00N005)
- Type: Active copper splitter (breakout) cable
- Data rate: 800Gb/s split to four 200Gb/s
- Protocol: InfiniBand NDR / 400GbE
- Modulation: 100G-PAM4, 8 channels
- Connectors: twin-port OSFP finned top to 4x OSFP flat top
- Cable length: 5 m
- Cable gauge: 26AWG
- Cable diameter: 7.1 mm
- Minimum bend radius: 71 mm
- Supply voltage: 3.3V (3.135 to 3.465 V)
- Power consumption: 1.5 W max (switch end), 0.3 W max per 200G end
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Operating relative humidity: 5 to 85 %
- Management interface: CMIS 5.0, I2C
- Jacket: LSZH
- Compliance: RoHS, CE, FCC, UKCA, RCM, VCCI

FAQs

Q: What does this cable connect?
A: It links an 800Gb/s NVIDIA Quantum-2 InfiniBand switch or Spectrum-4 Ethernet switch to four 200Gb/s OSFP ConnectX-7 adapter cards.

Q: Is this a fibre or copper cable?
A: It is an active copper cable (ACC) with an equaliser IC, rated for a 5 m reach.

Q: Does it work for both InfiniBand and Ethernet?
A: Yes. The firmware supports both and enables the correct mode automatically based on the switch protocol.

Q: What power does it need?
A: It is powered from the host port on a single 3.3V supply, drawing 1.5 W maximum at the switch end and 0.3 W maximum per 200G adapter end.

Q: How does it differ from the MCA7J70-N004?
A: This SKU is 5 m with 26AWG cable. The MCA7J70-N004 is 4 m with 30AWG cable.
