NVIDIA 980-9I50D-00N004 | LinkX NDR 800G OSFP to 4x 200G OSFP Splitter Cable, 4m
SKU:980-9I50D-00N004
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

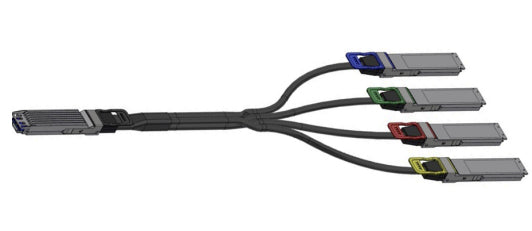

This NVIDIA LinkX active copper splitter cable breaks one 800Gb/s twin-port OSFP connector out into four 200Gb/s OSFP connectors over a 4 m run. It is designed to link an NDR Quantum-2 InfiniBand switch port, or a Spectrum-4 Ethernet switch port, to OSFP-based ConnectX-7 adapters in AI, HPC and data centre fabrics.
The cable is an active copper design (ACC) using 100G-PAM4 modulation across 8 channels, running from a single 3.3V supply. It is hot pluggable and uses OSFP MSA and CMIS based I2C management. It follows IBTA InfiniBand specifications, and the firmware supports both InfiniBand and Ethernet operation. The jacket is LSZH, and the cable is RoHS compliant, lead free and halogen free.
This 4 m part is a different SKU from the OSFP to QSFP112 splitter variant, so confirm the adapter-side connector type before ordering. It is listed as a validated NDR cable for NVIDIA Quantum-2 switches and ConnectX-7 adapters.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Splits up to 800Gb/s into four 200Gb/s links
- 100G-PAM4 signalling across 8 channels
- Hot pluggable with a single 3.3V supply
- OSFP MSA and CMIS based I2C management
- IBTA InfiniBand based
- Validated NDR cable for Quantum-2 switches and ConnectX-7 adapters
- LSZH jacket, RoHS compliant, lead free and halogen free
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Cable type: Active Copper Cable (ACC) splitter
- Data rate: 800Gb/s twin-port to 4 x 200Gb/s
- Protocol: InfiniBand NDR, firmware supports InfiniBand and Ethernet
- Connectors: OSFP to 4x OSFP
- Length: 4 m
- Modulation: 100G-PAM4, 8 channels
- Power: single 3.3V supply
- Hot pluggable: yes
- Management: OSFP MSA and CMIS based I2C
- Jacket: LSZH
- Compliance: RoHS, lead free, halogen free
FAQs
Q: What does this cable connect?
A: It connects one 800Gb/s twin-port OSFP port on a Quantum-2 NDR InfiniBand switch or Spectrum-4 Ethernet switch to four OSFP ConnectX-7 adapters at 200Gb/s each.
Q: Is this an optical or copper cable?
A: It is an active copper cable (ACC) using 100G-PAM4 signalling, with a maximum length of 4 m for this SKU.
Q: What is the adapter-side connector?
A: The four breakout ends use OSFP connectors. The OSFP to QSFP112 variant is a different part number.
Q: Does it support InfiniBand and Ethernet?
A: It is IBTA InfiniBand based for NDR, and the firmware supports both InfiniBand and Ethernet operation.
Q: Can it be hot swapped?
A: Yes. The cable is hot pluggable and runs from a single 3.3V supply.
