NVIDIA 980-9I46J-00N01A | LinkX NDR 800G to 4x200G OSFP DAC Splitter, 1.5m, Flat Top
SKU:980-9I46J-00N01A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

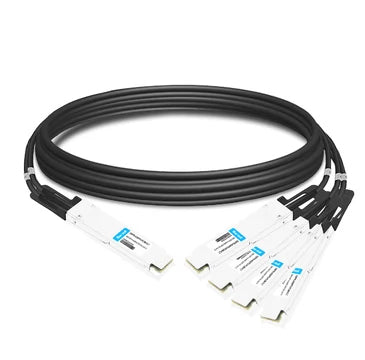

This NVIDIA LinkX NDR passive copper splitter cable breaks out one twin-port 800Gb/s OSFP port into four 200Gb/s OSFP connections. It is built for short-reach, in-rack InfiniBand NDR deployments where a Quantum-2 twin-port switch port needs to feed multiple adapter ports.
The cable is a 1.5 m passive direct attach copper design using 30 AWG conductors and flat-top OSFP connectors. It carries 2x400G NDR from the switch end and splits it to 4x200G NDR200 ends, based on 100G-PAM4 signalling. As a passive cable it has no active optics and needs no external power.
It is intended for connecting NVIDIA Quantum-2 NDR InfiniBand twin-port OSFP switches to ConnectX-7 and BlueField-3 adapters running 200G ports. The part number is listed in NVIDIA's validated cables table for ConnectX-7 adapters.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Passive copper splitter that breaks one twin-port 800G NDR port out to four 200G ports
- No active optics or fibre, suited to short in-rack runs
- Flat-top OSFP connectors
- Based on 100G-PAM4 signalling for NDR InfiniBand
- Listed in NVIDIA's validated cables for ConnectX-7 adapters
- Part of the NVIDIA LinkX NDR/400GbE portfolio
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- NVIDIA part number: 980-9I46J-00N01A
- Model P/N: MCP7Y50-N01A-FLT
- Cable type: Passive copper (DAC) splitter
- Data rate: 800Gb/s twin-port (2x400G) to 4x200Gb/s
- Protocol: InfiniBand NDR / NDR200
- Connectors: OSFP to 4x OSFP
- Connector style: Flat top
- Cable length: 1.5 m
- Wire gauge: 30 AWG
- Signalling: 100G-PAM4
- Power: Passive, no external power required
FAQs
Q: Does this cable need external power?
A: No. It is a passive copper cable with no active components, so it draws no external power.
Q: What equipment does it connect?
A: It connects an NVIDIA Quantum-2 NDR InfiniBand twin-port OSFP switch port to ConnectX-7 or BlueField-3 adapters using 200G ports.
Q: How is this cable different from a straight OSFP to OSFP cable?
A: This is a 1-to-4 splitter. One twin-port 800G OSFP end fans out to four separate 200G OSFP ends, rather than linking a single port to a single port.
Q: What is the maximum reach?
A: This cable is 1.5 m long, so it suits short connections within a rack or to an adjacent rack.
Q: Is this an optical cable?
A: No. It is a passive copper direct attach cable and does not use multimode fibre or optical transceivers.
