NVIDIA 980-9I46H-00N002 | MCP7Y50 800G to 4x200G OSFP Splitter DAC, 2m, Flat Top
SKU:980-9I46H-00N002
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

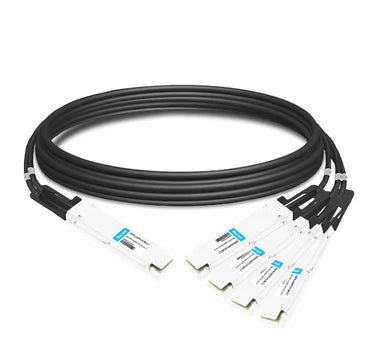

This NVIDIA LinkX MCP7Y50 is a 2m passive copper splitter cable for NDR networks. A twin-port 800Gb/s OSFP head breaks out into four 200Gb/s OSFP ends, so one switch port can serve four servers or adapters. It suits liquid-cooled Quantum-2 InfiniBand and Spectrum-4 Ethernet switches feeding ConnectX-7 OSFP NICs and BlueField-3 DPUs in AI and HPC clusters.
The cable uses 100G-PAM4 modulation with two lanes per 200G end, 26AWG conductors in a 4x4 pair construction, and a 7.1 mm LSZH jacket. The -FLT variant has a flat-top twin-port OSFP head intended for liquid-cooled systems. Because there are no electronics in the data path, each OSFP end draws only 0.1 W maximum from the host 3.3 V supply, and the cable adds very little latency. Firmware supports both InfiniBand NDR and Ethernet and adapts automatically to the attached host.
The single-port OSFP ends are for OSFP-based ConnectX-7 adapters. BlueField-3 and ConnectX-7 adapters with QSFP112 cages need QSFP112-ended cables instead, such as the MCP7Y10 or MCP7Y40.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Splits one 800Gb/s twin-port OSFP into four 200Gb/s OSFP links
- Passive copper with no electronics in the data path, giving low cost, low latency and near-zero power
- Firmware supports InfiniBand and Ethernet and switches automatically based on the attached host
- Flat-top twin-port OSFP head for liquid-cooled switches
- EEPROM on each end holds product identification and characteristics for the host
- Hot pluggable with an LSZH jacket
- Colour-coded tabs on the ends for port identification
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: MCP7Y50-N002-FLT
- Data rate: 800Gb/s to 4x 200Gb/s
- Modulation: 100G-PAM4, 2 lanes per 200G end
- Head connector: twin-port OSFP, flat top (-FLT)
- End connectors: 4x OSFP, flat top
- Media type: Passive copper (DAC)
- Cable length: 2.0 m
- Wire gauge: 26AWG, 4x4 pairs
- Cable diameter: 7.1 mm
- Minimum bend radius: 71 mm
- Jacket: LSZH
- Supply voltage (Vcc): 3.135 to 3.465 V
- Power consumption: 0.1 W max per OSFP end
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Operating relative humidity: 5 to 85 %
- Characteristic impedance: 90 / 100 / 110 Ohm (min/typ/max)
- Propagation delay: 4.5 ns/m max
- Management interface: CMIS Rev 5.0 compliant I2C
- Hot pluggable: Yes
- Environmental: RoHS compliant, lead-free and halogen-free PCB
- Safety certifications: CB, TUV, CE, EAC, UKCA
- EMC certifications: CE, FCC Class A, ICES, RCM, VCCI
FAQs
Q: Does this cable need external power or a licence?
A: No. It is a passive cable with no external power and no licence. Each OSFP end draws up to 0.1 W from the host 3.3 V supply.
Q: Will it work with both InfiniBand and Ethernet?
A: Yes. The firmware supports InfiniBand NDR and Ethernet and switches automatically based on the attached host.
Q: What devices can the four 200G ends connect to?
A: The single-port OSFP ends are for OSFP-based 200Gb/s adapters such as ConnectX-7 OSFP NICs. BlueField-3 DPUs and ConnectX-7 adapters with QSFP112 cages need the QSFP112-ended MCP7Y10 or MCP7Y40 cables instead.
Q: What is the difference between this and the non-flat-top version?
A: This -FLT variant has a flat-top twin-port OSFP head intended for liquid-cooled systems. Other lengths and head styles are separate SKUs in the MCP7Y50 range.
Q: Is this cable validated for NVIDIA adapters?
A: Yes. NVIDIA ConnectX-7 and ConnectX-8 firmware release notes list this SKU as a validated NDR cable.
