NVIDIA 980-9I46G-00N002 | LinkX NDR 800G OSFP to 4x200G OSFP DAC Splitter, 2m
SKU:980-9I46G-00N002
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

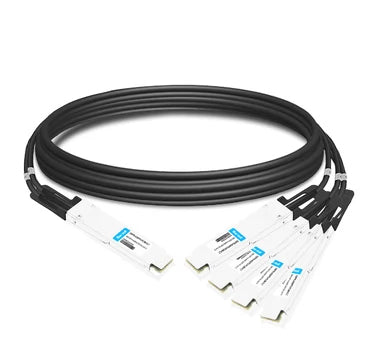

This NVIDIA LinkX NDR splitter is a passive copper (DAC) breakout cable that links one 800Gb/s twin-port OSFP end to four 200Gb/s OSFP ends. It is built for data-centre, AI and HPC clusters where a Quantum-2 InfiniBand or Spectrum-4 Ethernet switch port needs to feed four ConnectX-7 OSFP adapters or BlueField-3 DPUs over a short in-rack or adjacent-rack run.
The cable is 2m long, uses 26AWG 4x4 pair construction with a 7.1mm diameter and carries 100G-PAM4 signalling, with two channels per 200G end. The switch end is a finned-top twin-port OSFP head, while the four server ends are flat-top OSFP connectors suited to adapters that use riding heat sinks on the cage. Each OSFP end draws 0.1W maximum from a 3.3V supply, the LSZH jacket is low smoke zero halogen, and the cable is hot pluggable and RoHS compliant.
The firmware supports both InfiniBand NDR and Ethernet, and the protocol is selected automatically based on the attached switch. Management is via a CMIS 5.0 compliant I2C interface, and each end carries an EEPROM for product identification. Operating case temperature is 0 to 70 C.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Dual-protocol firmware supports InfiniBand and Ethernet, enabled automatically based on the attached switch
- Finned-top twin-port OSFP head for Quantum-2 and Spectrum-4 switch cages
- Flat-top OSFP ends for ConnectX-7 adapters that use riding heat sinks on the cage
- Near-zero power consumption and low latency, with no electronics in the data path
- EEPROM in each end provides product identification to the host
- Cable length tuned to reduce internal signal noise and back reflections
- Hot pluggable for in-service installation and replacement
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Connectors: 1x twin-port OSFP (finned top) to 4x OSFP (flat top)
- Cable type: Passive copper (DAC) splitter
- Data rate: 800Gb/s to four 200Gb/s
- Modulation: 100G-PAM4, 2 channels per 200G end
- Protocol: InfiniBand NDR / Ethernet, auto-detected from attached switch
- Length: 2.0m (tolerance +/-50mm)
- Cable construction: 26AWG, 4x4 pairs
- Cable diameter: 7.1mm
- Minimum bend radius: 71mm
- Power consumption: 0.1W max per OSFP end
- Supply voltage: 3.135 to 3.465V (3.3V typical)
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Operating relative humidity: 5 to 85%
- Propagation delay: 4.5ns/m max
- Management interface: CMIS 5.0 compliant I2C
- Jacket: LSZH
- Compliance: OSFP MSA, RoHS
- Safety certifications: CB, TUV, CE, EAC, UKCA
- EMC certifications: CE, FCC, ICES, RCM, VCCI
FAQs
Q: Which devices does the finned-top end connect to?
A: The finned-top twin-port OSFP end is designed for NVIDIA Quantum-2 InfiniBand switches such as the QM9700 and QM9790, and Spectrum-4 Ethernet switches. The four flat-top 200G OSFP ends connect to OSFP-based ConnectX-7 adapters and BlueField-3 DPUs.
Q: Does this cable work with QSFP112-based ConnectX-7 or BlueField-3 cards?
A: No. QSFP112-based adapters need the MCP7Y10 or MCP7Y40 QSFP112 cables instead. This cable has OSFP connectors on all ends.
Q: Do I need to choose between InfiniBand and Ethernet?
A: No. The cable firmware supports both protocols and enables the correct one automatically based on the switch it is attached to.
Q: Is this cable suitable for liquid-cooled systems such as DGX-H100?
A: This version has a finned-top twin-port head and is not the -FLT variant. The -FLT version with a flat-top twin-port head is the one intended for liquid-cooled systems such as DGX-H100.
Q: Does it need external power?
A: No. It is a passive cable with no active electronics in the data path and draws only 0.1W maximum per OSFP end from the host's 3.3V supply.
