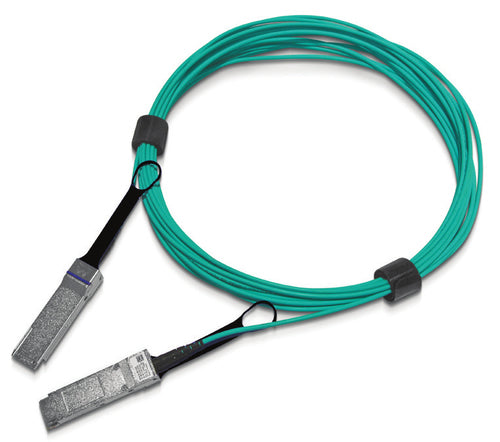

NVIDIA 980-9I45J-00H010 | 200G QSFP56 Active Optical Cable, IB HDR, 10m
SKU:980-9I45J-00H010
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 200Gb/s QSFP56 active optical cable is a VCSEL-based multimode link built for InfiniBand HDR and 200GbE. It is the 10m QSFP56-to-QSFP56 length, suited to data-centre interconnects where reach beyond passive copper is needed, including switch-to-switch and switch-to-NIC links.
The cable carries up to 200Gb/s as 4 x 50Gb/s PAM4 lanes over multimode fibre using 850nm VCSELs, with four optical transceivers at each end. Both ends use SFF-8665 compliant QSFP56 connectors with an SFF-8636 compliant I2C management interface. Power comes from a single 3.3V supply drawn from the host port, at 4.8W typical and 5.0W maximum per end with retiming enabled. The jacket is LSZH with a black pulltab, and no licence or subscription is required.
It supports 200Gb InfiniBand HDR systems and 200GbE between NVIDIA Spectrum SN3700 and SN4600 switches, and plugs into QSFP56 host ports at both ends. The cable is hot pluggable for straightforward installation and replacement.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Supports IBTA InfiniBand HDR and 200GbE
- Programmable Rx output amplitude and pre-emphasis
- Selectable retiming per lane for optical transmitters and receivers up to 50Gb/s
- Hot pluggable for easy installation and replacement
- Longer reach than passive copper cables with high port density
- Rigorous production testing for out-of-the-box performance and durability
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Data rate: up to 200Gb/s (4 x 50Gb/s PAM4)
- Supported protocols: IBTA InfiniBand HDR and 200GbE
- Connectors: QSFP56 to QSFP56, SFF-8665 compliant
- Length: 10m
- Fibre type: multimode (MMF), 850nm VCSEL
- Management interface: SFF-8636 compliant I2C
- Jacket: LSZH, black pulltab
- Supply voltage: 3.3V typical (3.135 to 3.465V)
- Power dissipation per end (retiming on all lanes): 4.8W typical, 5.0W maximum
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85%
- Signaling rate (PAM4): 53.125 Gb/s per lane
- Signaling rate (NRZ): 25.78125 Gb/s per lane
- Minimum bend radius: 30mm
- Length tolerance (5m to under 50m): +500/-0mm
- Compliance: RoHS
FAQs
Q: Does this cable need a licence or subscription?
A: No. It is a passive-managed optical cable and requires no licence or subscription.
Q: How much power does it draw?
A: It draws power from the host QSFP56 port on a single 3.3V supply, at 4.8W typical and 5.0W maximum per end with retiming enabled.
Q: What does it connect to?
A: It plugs into QSFP56 host ports at both ends and supports 200Gb InfiniBand HDR systems and 200GbE between NVIDIA Spectrum SN3700 and SN4600 switches.
Q: What fibre type does it use?
A: It is a multimode cable using 850nm VCSELs, with four optical transceivers at each end.
Q: How does this differ from other lengths in the same family?
A: This SKU is the 10m QSFP56-to-QSFP56 length. Other lengths in the MFS1S00-HxxxV family share the same specifications but differ in cable reach.
