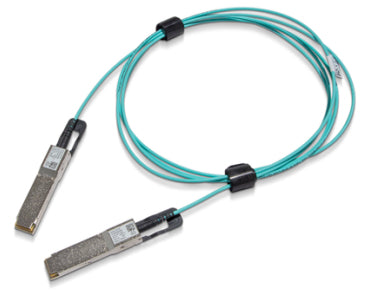

NVIDIA 980-9I457-00H003 | MFS1S00 200G QSFP56 AOC, 3m, InfiniBand HDR/200GbE
SKU:980-9I457-00H003
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The MFS1S00-H003V is a VCSEL-based multimode active optical cable with QSFP56 connectors at both ends, built for 200Gb/s InfiniBand HDR and 200GbE links. This 3m version suits short-reach connections between switches and adapters in HPC, AI/ML and data-centre racks.
The cable carries four 50Gb/s PAM4 lanes per end over multimode fibre at 850nm, giving up to 200Gb/s of throughput. The host-side connector is an SFF-8665 compliant QSFP56 port, and the cable runs from a +3.3V supply through the host port. Retiming can be selected per lane for the optical transmitters and receivers, and Rx output amplitude and pre-emphasis are programmable. It is hot pluggable, which keeps installation and replacement simple, and it offers a much longer reach than copper at this speed.
It is a validated HDR cable for NVIDIA Quantum InfiniBand switches and for ConnectX-6 and ConnectX-6 Dx adapters at 200GbE. It also supports 200GbE between SN3700 and SN4600 switches.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Supports IBTA InfiniBand HDR and 200GbE
- Up to 200Gb/s using 4x 50Gb/s PAM4 modulation
- Programmable Rx output amplitude and pre-emphasis
- Selectable retiming per lane for both transmitters and receivers
- Hot pluggable for easy installation and replacement
- High port density and configurability
- Much longer reach than copper at 200Gb/s
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- NVIDIA OPN: 980-9I457-00H003
- Legacy OPN: MFS1S00-H003V
- Cable type: Active optical cable (AOC)
- Data rate: up to 200Gb/s
- Modulation: 4x 50Gb/s PAM4
- Connectors: QSFP56 to QSFP56
- Host-side connector: SFF-8665 compliant QSFP56
- Length: 3m
- Fibre type: multimode fibre (MMF), four fibres per end, VCSEL-based, 850nm
- Protocol support: IBTA InfiniBand HDR and 200GbE
- Retiming: selectable per lane for transmitters and receivers, up to 50Gb/s
- Rx output amplitude and pre-emphasis: programmable
- Power supply: +3.3V
- Hot pluggable: yes
FAQs
Q: Does this cable need a licence or subscription?
A: No. It is a passive-managed plug-and-play cable that needs no licence or software subscription.
Q: How is the cable powered?
A: It draws a +3.3V supply through the QSFP56 host port, so no separate power connection is needed.
Q: What equipment is it validated with?
A: It is a validated HDR cable for NVIDIA Quantum InfiniBand switches and ConnectX-6 and ConnectX-6 Dx adapters at 200GbE. It also supports 200GbE between SN3700 and SN4600 switches.
Q: Can it be used for both InfiniBand and Ethernet?
A: Yes. It supports IBTA InfiniBand HDR links and 200GbE links over the same QSFP56 to QSFP56 cable.
Q: Can the cable be installed or replaced while the system is running?
A: Yes. The cable is hot pluggable, so it can be installed or replaced without powering down the host.
