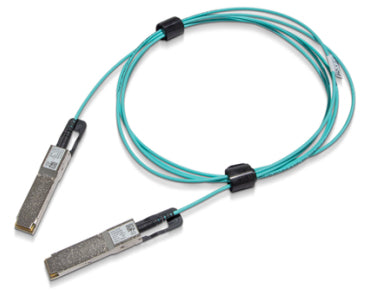

NVIDIA 980-9I44N-00H150 | LinkX MFS1S00 200G QSFP56 AOC, IB HDR, 850nm, 150m
SKU:980-9I44N-00H150
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This LinkX MFS1S00 active optical cable is a VCSEL-based QSFP56 multimode link for 200Gb/s InfiniBand HDR and 200GbE. It suits data-centre interconnects such as server-to-switch and switch-to-switch runs where passive copper cannot reach, and this SKU is the 150m length.
It uses 4x 50Gb/s PAM4 lanes over four multimode fibres per end, with 850nm VCSELs and QSFP56 connectors that follow SFF-8665. Power is drawn from a single 3.3V supply at the host port, up to 5.0W per end with retiming on (4.8W typical). The cable is 3mm in diameter with a 30mm minimum bend radius, and the case operating range is 0 to 70 C. The assembly is hot pluggable and supports selectable per-lane retiming, programmable Tx equalisation and Rx output settings, and digital diagnostic monitoring of optical power, bias current, supply voltage and temperature.
It supports 200Gb InfiniBand HDR systems and 200GbE links between SN3700 and SN4600 switches, and appears in NVIDIA's validated cable lists for ConnectX-6, BlueField-2 and Quantum firmware.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Supports IBTA InfiniBand HDR and 200GbE links
- Selectable retiming per lane for transmitters and receivers
- Programmable Tx input equalisation and Rx output amplitude and pre-emphasis
- Digital diagnostic monitoring of optical power, bias current, supply voltage and case temperature
- Rate select supported for NRZ EDR and PAM4 HDR operation
- Hot pluggable and RoHS compliant
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Data rate: up to 200Gb/s (InfiniBand HDR / 200GbE)
- Connectors: QSFP56 to QSFP56 (SFF-8665 compliant)
- Modulation: 4x 50Gb/s PAM4
- Fibre type: multimode, 4 fibres per end
- Wavelength: 850nm VCSEL
- Cable length: 150m
- Length tolerance (50m or longer): +1000 / -0 mm
- Management interface: SFF-8636 compliant I2C
- Supply voltage: 3.3V typical (3.135 to 3.465V)
- Power per end (retiming on): 4.8W typical, 5.0W max
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Operating relative humidity: 5 to 85%
- Cable diameter: 3 +/-0.2 mm
- Minimum bend radius: 30 mm
- Cable colour: Aqua
- Laser safety: Class I per IEC 60825-1
- Legacy part number: MFS1S00-H150V
FAQs
Q: What power does this cable draw from the host port?
A: It runs from a single 3.3V supply provided by the QSFP56 port, drawing up to 5.0W per end with retiming on. It starts in low-power mode, under 1.5W, until the host enables high-power mode.
Q: Which systems is it validated for?
A: It supports 200Gb InfiniBand HDR systems and 200GbE links between SN3700 and SN4600 switches. It is listed in NVIDIA's validated cable lists for ConnectX-6, BlueField-2 and Quantum firmware, with E6 B1/B2 the earliest qualified firmware noted for this option.
Q: How does this 150m cable differ from other MFS1S00 lengths?
A: The MFS1S00 family shares the same QSFP56 multimode 200Gb/s design. This SKU is the 150m length, also listed under the legacy part number MFS1S00-H150V.
Q: Is it a single-mode or multimode cable?
A: It is multimode, using 850nm VCSELs over four multimode fibres per end, so it suits data-centre reach rather than long-haul single-mode links.
